Sensor, input speed

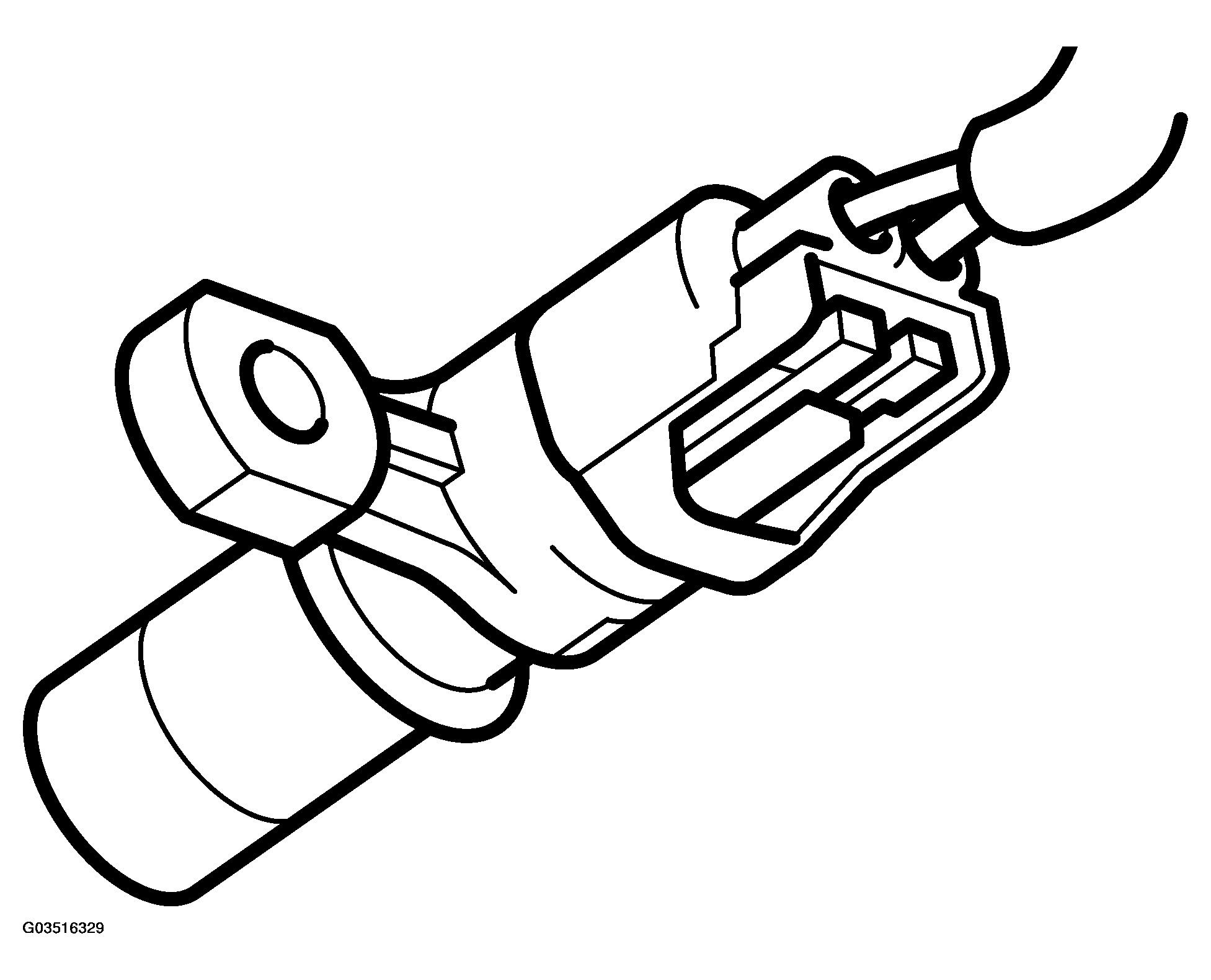

Fig 1: Identifying Input Speed Sensor
G03516329Courtesy of SAAB-SCANIA OF AMERICA, INC.
INPUT SPEED SENSOR SPECIFICATIONS

Location On the transmission casing
Type Inductive sensor
Resistance, shift 1-2 at 20° C Ohm 450+/-150
Toothed wheel number of teeth 12
