Control module bus inputs

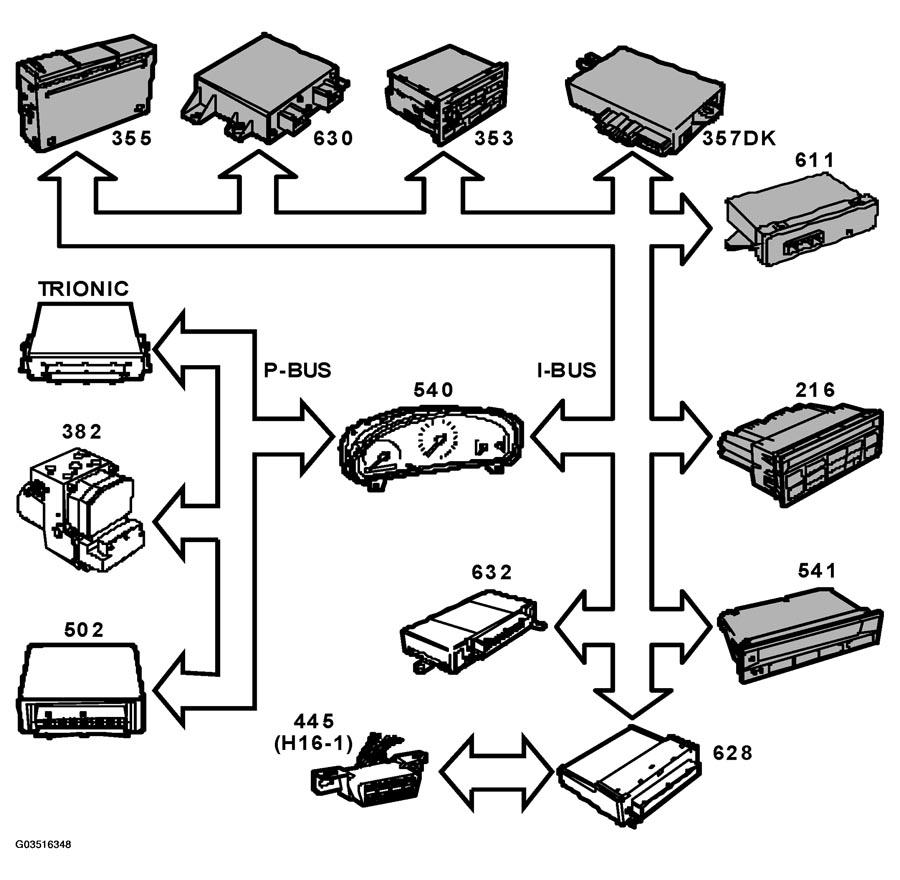

Fig 1: Identifying Control Module Bus Inputs Components

G03516348

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Bus communication, see BUS COMMUNICATION .
Accelerator position (Bus from Trionic) (430/600), see ACCELERATOR POSITION .
Engine torque (Bus from Trionic) (430), see MAXIMUM PERMISSIBLE TORQUE .
Kickdown (Bus from Trionic) (430/600), see KICKDOWN FUNCTION .
Engine speed (Bus from Trionic)(430/600), see nENGINE SPEED .
Brake lights (Bus from TWICE) (632), see BUS COMMUNICATION .
