Control module outputs

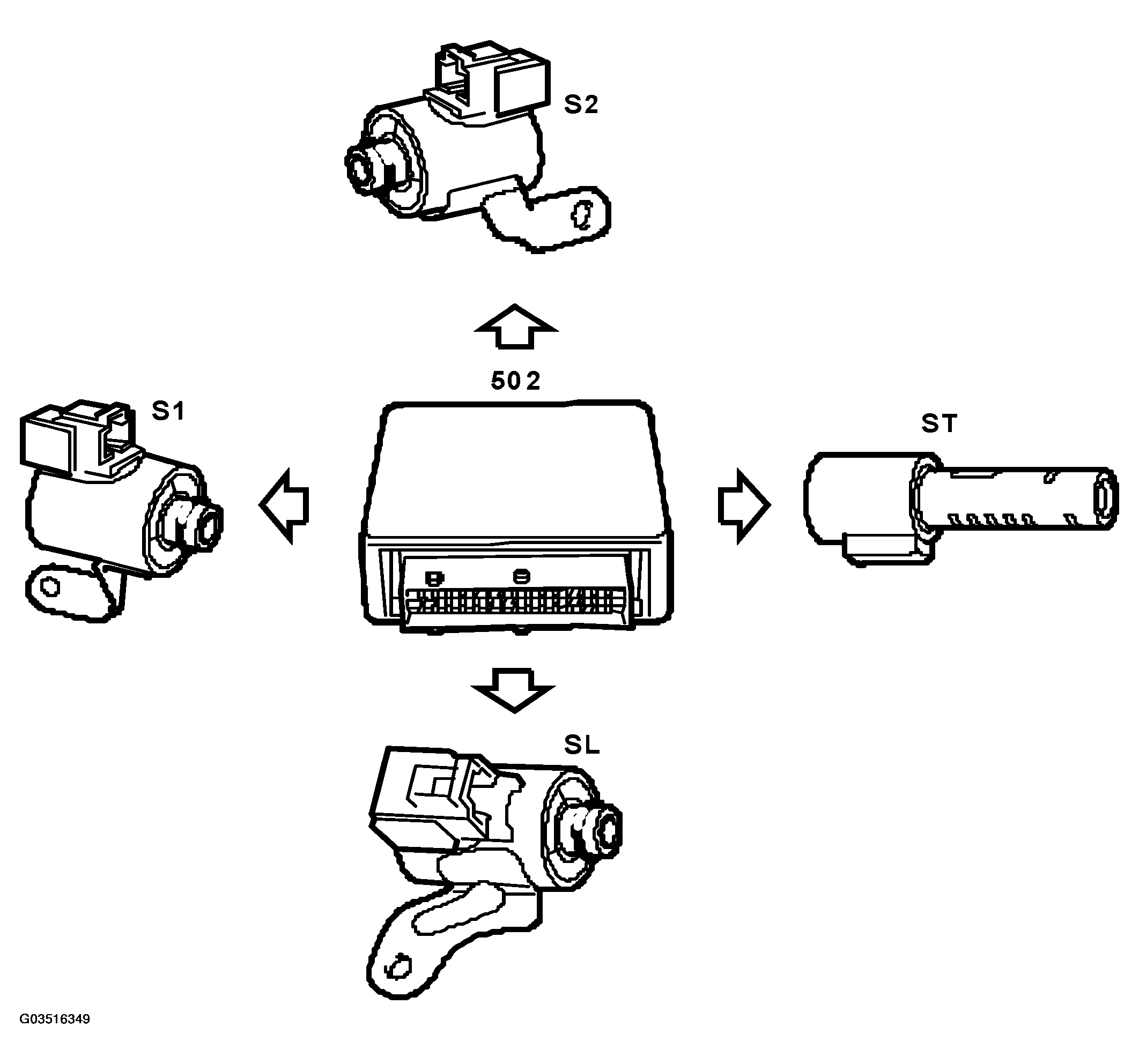

Fig 1: Identifying Control Module Outputs Components

G03516349

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Solenoid valve S1 for shifting, see SOLENOID VALVES, S1 AND S2, FOR SHIFTING .
Solenoid valve S2 for shifting, see SOLENOID VALVES, S1 AND S2, FOR SHIFTING .
Solenoid valve SL for Lock-up, see SOLENOID VALVE SL, FOR LOCK-UP .
Solenoid valve ST for system pressure, see SOLENOID VALVE ST, FOR SYSTEM PRESSURE .
