Engine torque: Notes

The actual air mass/combustion is converted to torque, unit Nm. This information is sent continuously on a bus and TCM uses the information to control the system pressure.

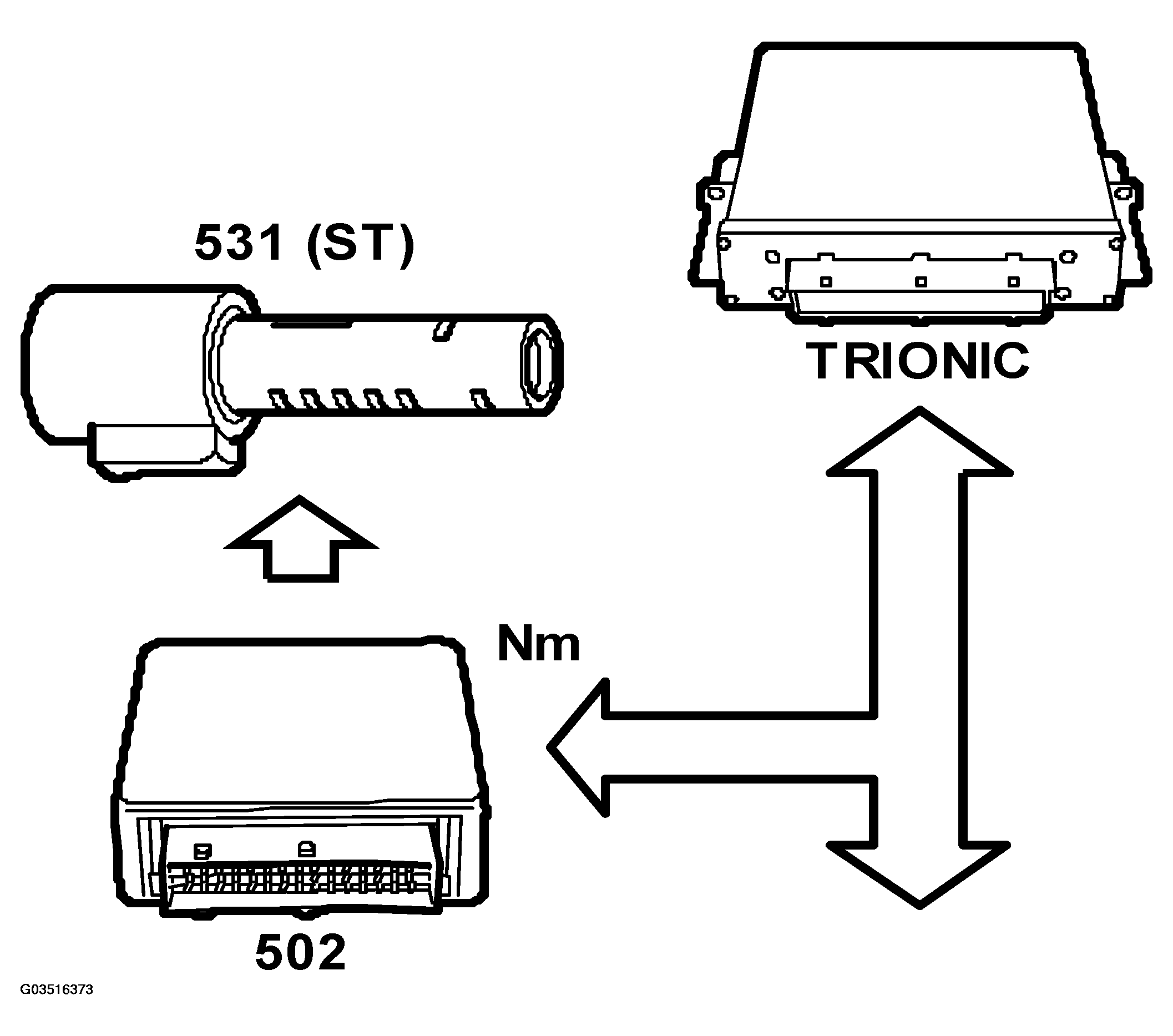

Fig 1: Identifying Engine Torque Communication Flow

Courtesy of SAAB-SCANIA OF AMERICA, INC.
