Control module connector

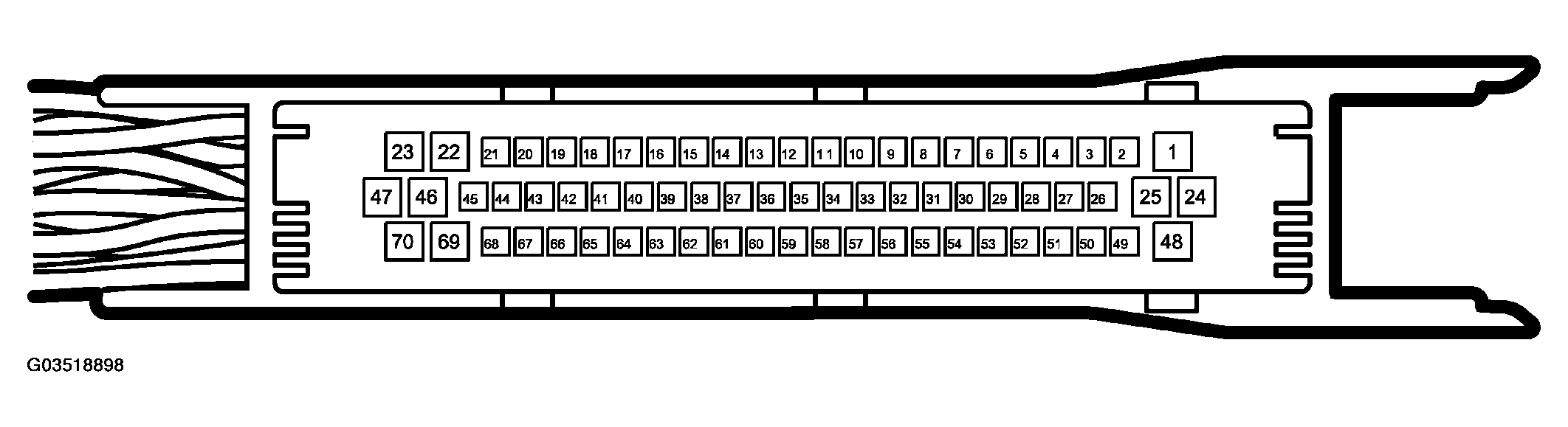

Fig 1: Identifying Control Module Connector - Pinout
G03518898Courtesy of SAAB-SCANIA OF AMERICA, INC.
CONTROL MODULE CONNECTOR REFERENCE DATA

Pin No. Cable colour Component/ function In/Out Test conditions Across Test reading See
1 RD/YE Courtesy / floor lighting Out Door open 1-57 B+ Lighting and signalling systems
COURTESY LIGHTS
FLOOR LIGHTING
2 BU/WH Luggage compartment lighting Out Boot lid open 2-57 B+ Lighting and signalling systems
LUGGAGE COMPARTMENT LIGHTING
3 RD/BU
