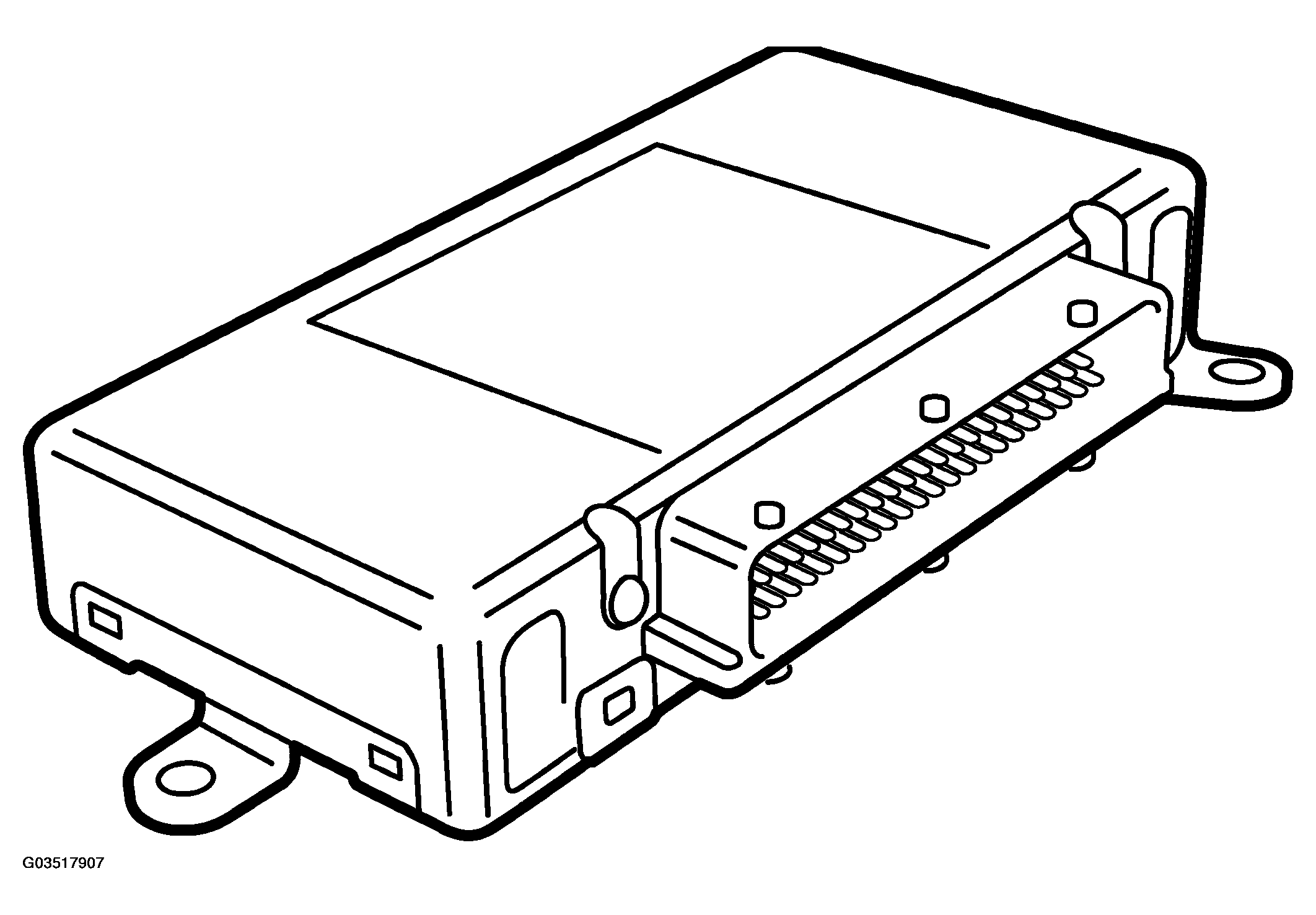

Control Module
CONTROL MODULE REFERENCE DATA
| Location | Under left-hand front seat, screwed on the floor | |
|---|---|---|
| Number of pins | 70 | |
| Power supply +30 | pin no. | 43 |
| Power supply +15, logic/key position | pin no. | 16 |
| Power supply +B, logic/key position | pin no. | 17 |
| Power ground | pin no. | 70 |
| Signal ground | pin no. | 37 |
| Instrument bus, I-bus (+) | pin no. | 38 |
| Instrument bus, I-bus (-) | pin no. | 15 |
