Control Module Inputs

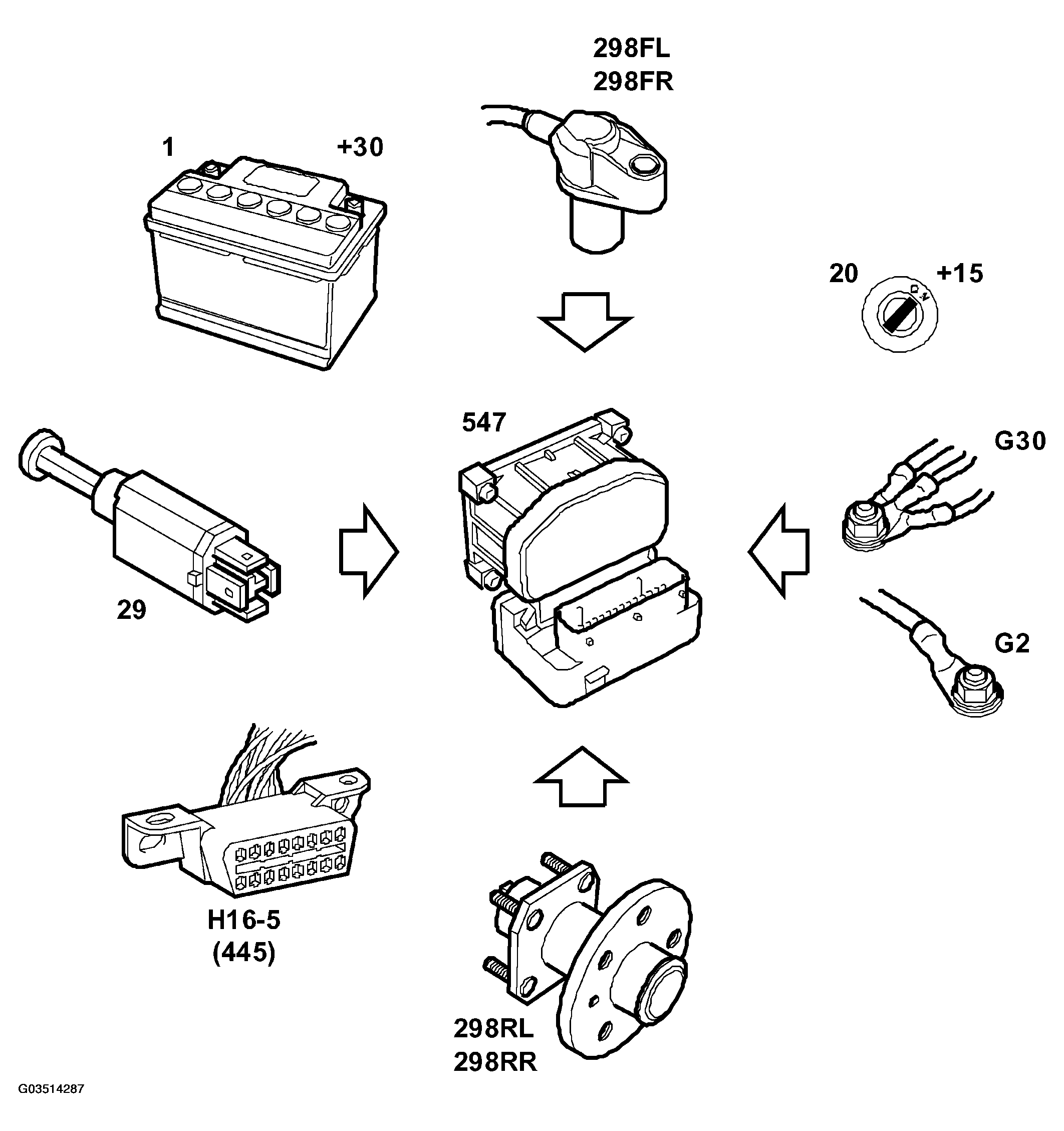

Fig 1: Identifying Control Module Inputs

G03514287

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Voltage (+30 circuit) (1). See POWER SUPPLY .
Voltage (+15 circuit) (20). See POWER SUPPLY .
Ground (G30, G2). See CONTROL MODULE GROUND .
Front-Wheel Sensors (298). See FRONT-WHEEL SENSORS .
Rear-Wheel Sensors (298). See REAR-WHEEL SENSORS .
Brake-Light Switch (29). See BRAKE-LIGHT SWITCH .
Data Link Connector, 16-Pin, CARB (445). See DATA LINK CONNECTOR, 16-PIN, CARB (445) .
