Front Toe-In

Use illustration for wheel alignment specifications. See Fig 1.

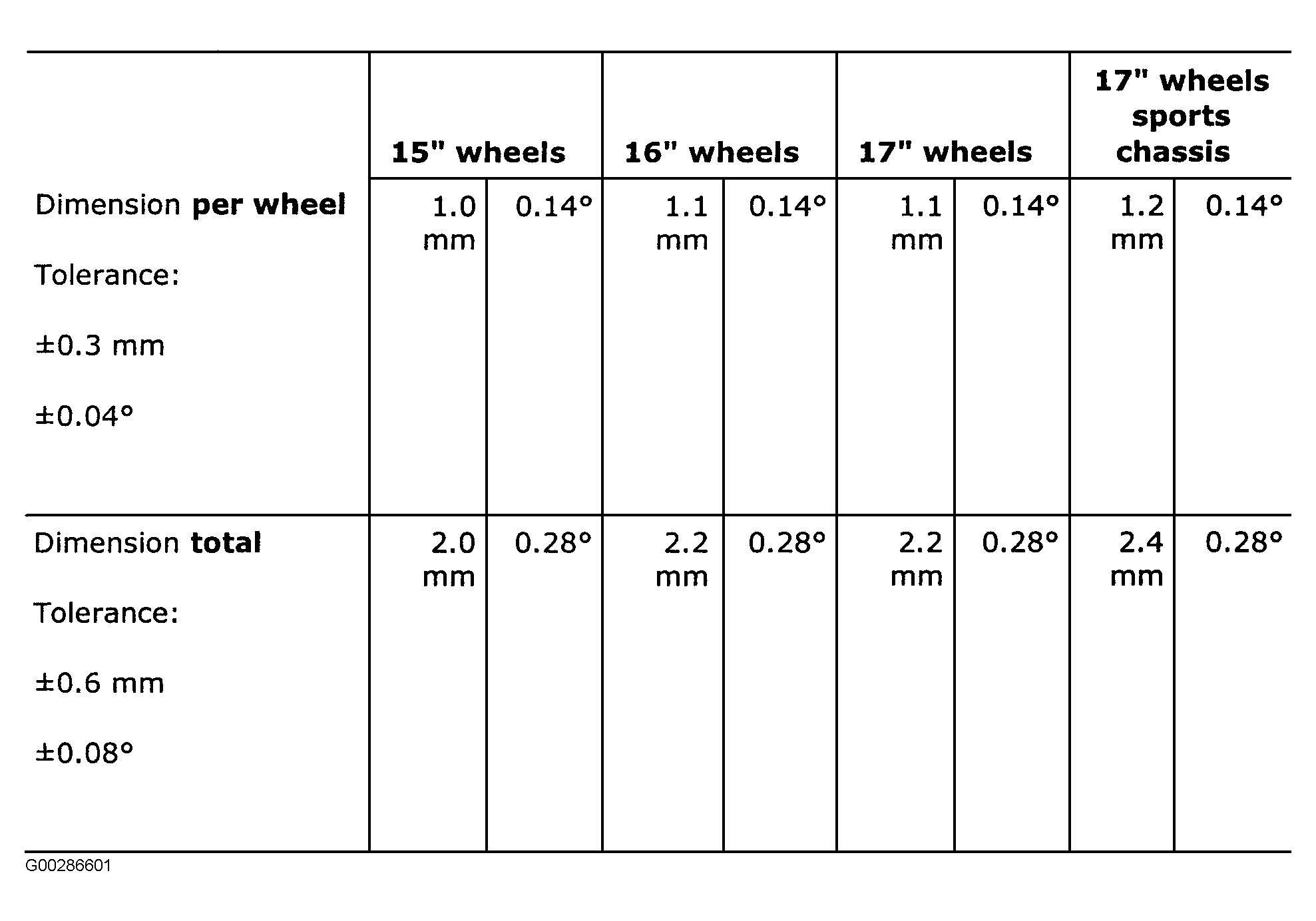

Fig 1: Toe-in (Front)
G00286601Courtesy of SAAB-SCANIA OF AMERICA, INC.
