Sensor, input shaft speed

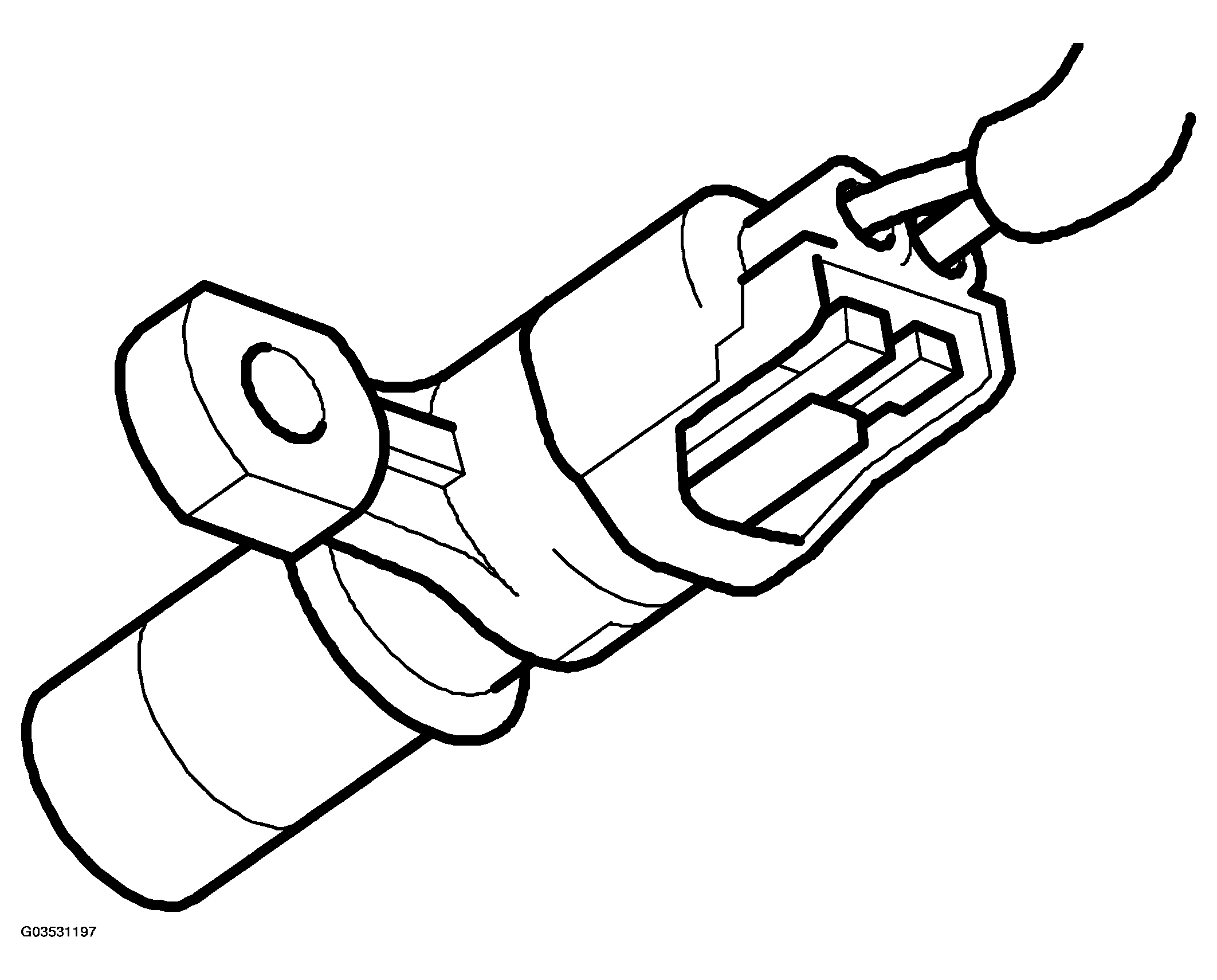

Fig 1: Identifying Input Shaft Speed Sensor
G03531197Courtesy of SAAB-SCANIA OF AMERICA, INC.
INPUT SPEED SENSOR SPECIFICATIONS

Location On the gearbox
Type Inductive sensor
Resistance, shift 1-2 at 20°C Ohm 450+/-150
Toothed wheel number of teeth 12
