Home >> Saab >> 2002 >> 9-3 SE, 2D Convertible, Standard >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Technical Data >> Fuel tank >> Notes
April 5, 2026: LEMON Manuals is launched! Read the announcement.

Fuel tank: Notes

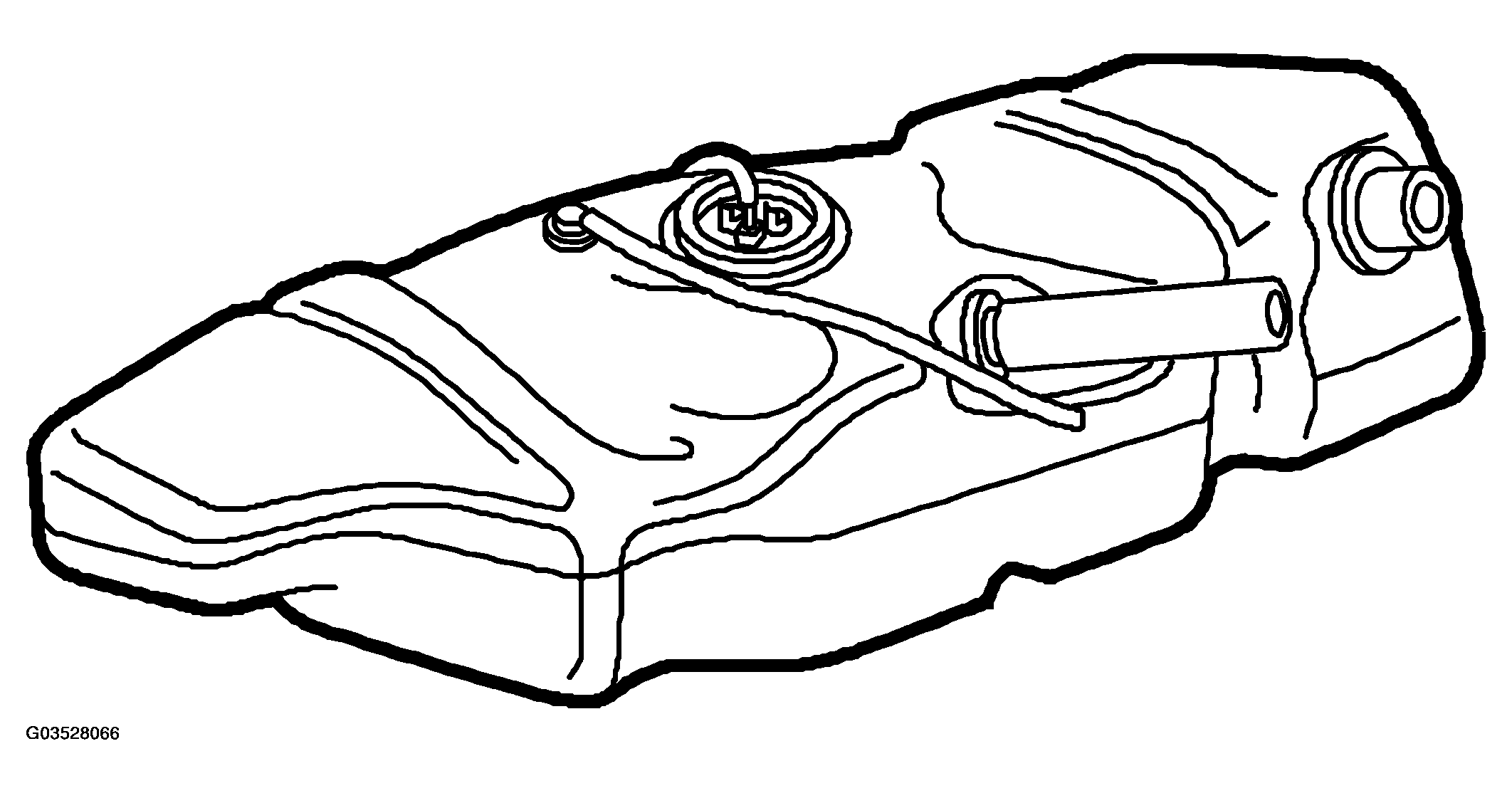

Fig 1: Identifying Fuel Tank
G03528066Courtesy of SAAB-SCANIA OF AMERICA, INC.
FUEL TANK CAPACITY SPECIFICATIONS

Total capacity litres 68
ORVR litres 64
Fuel level when level warning lamp goes on litres 10
