Front Camber

Use illustration for wheel alignment specifications. See Fig 1.

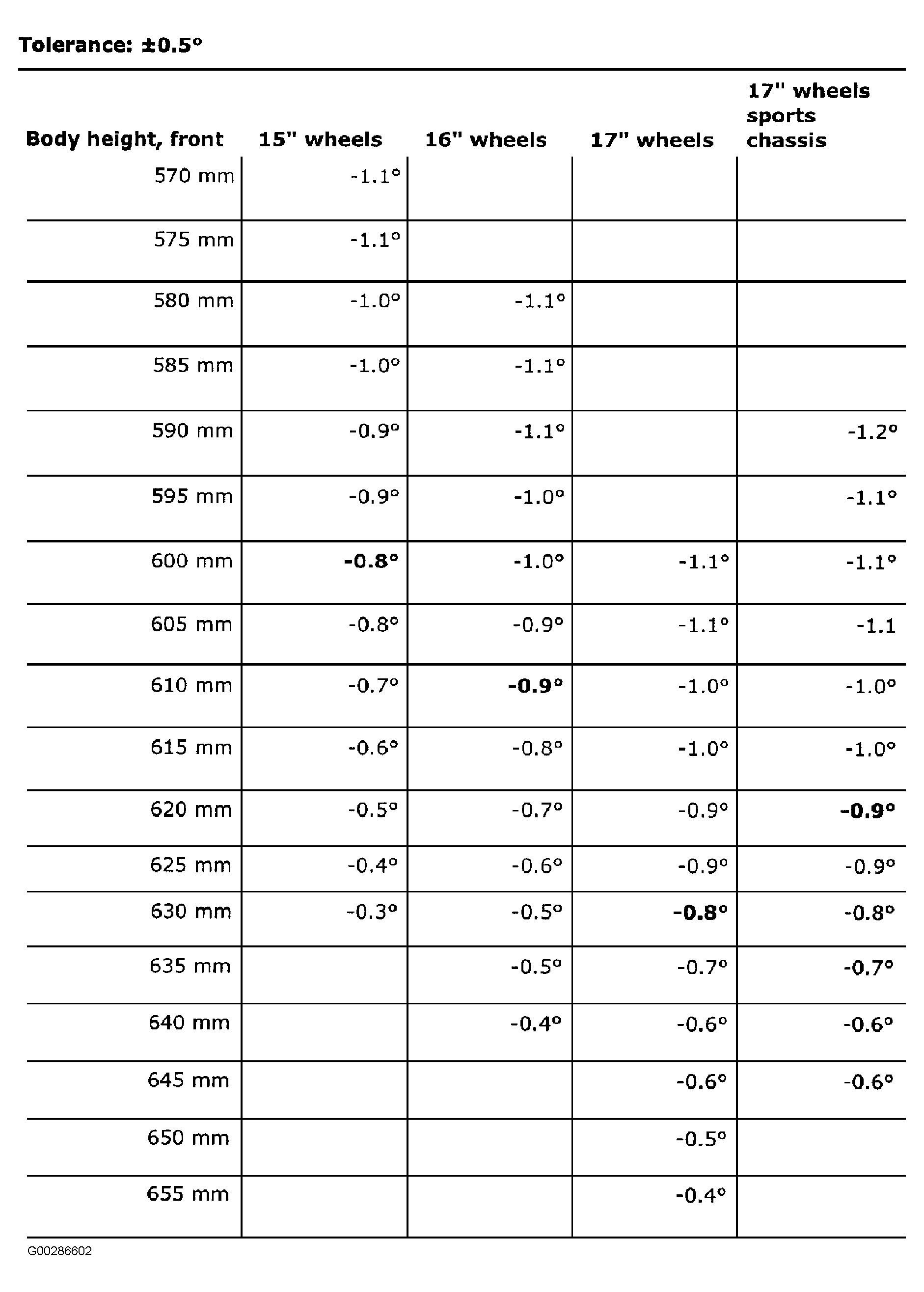

Fig 1: Camber (Front) Specifications
G00286602Courtesy of SAAB-SCANIA OF AMERICA, INC.
