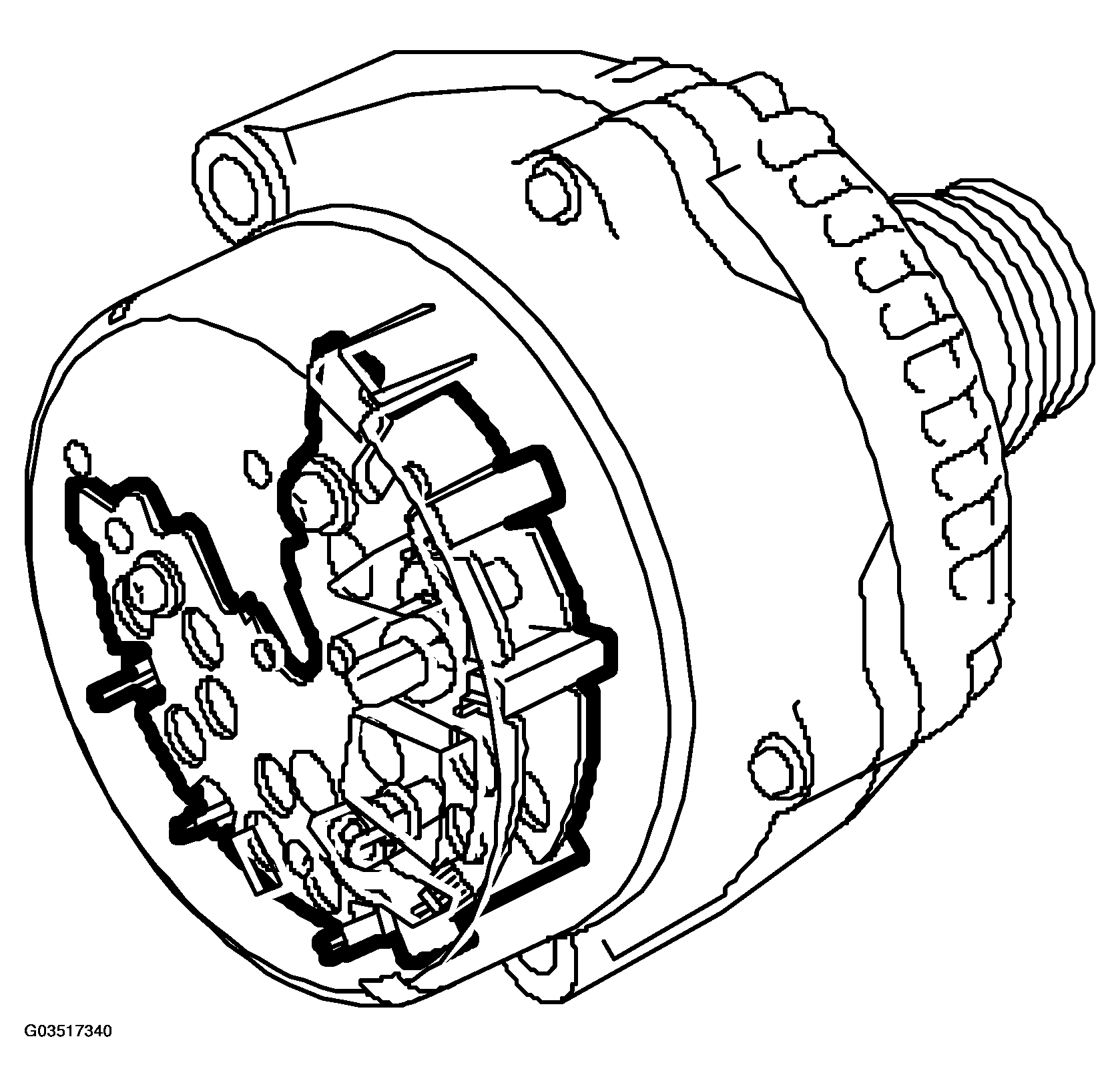

Integral Fans: Rectifier
Courtesy of SAAB-SCANIA OF AMERICA, INC.
The current produced by the generator's stator winding must be converted to direct current before it can be used in the car's electrical system. The current is converted by means of 6 Zener diodes, 2 per phase winding.
