Control module bus inputs

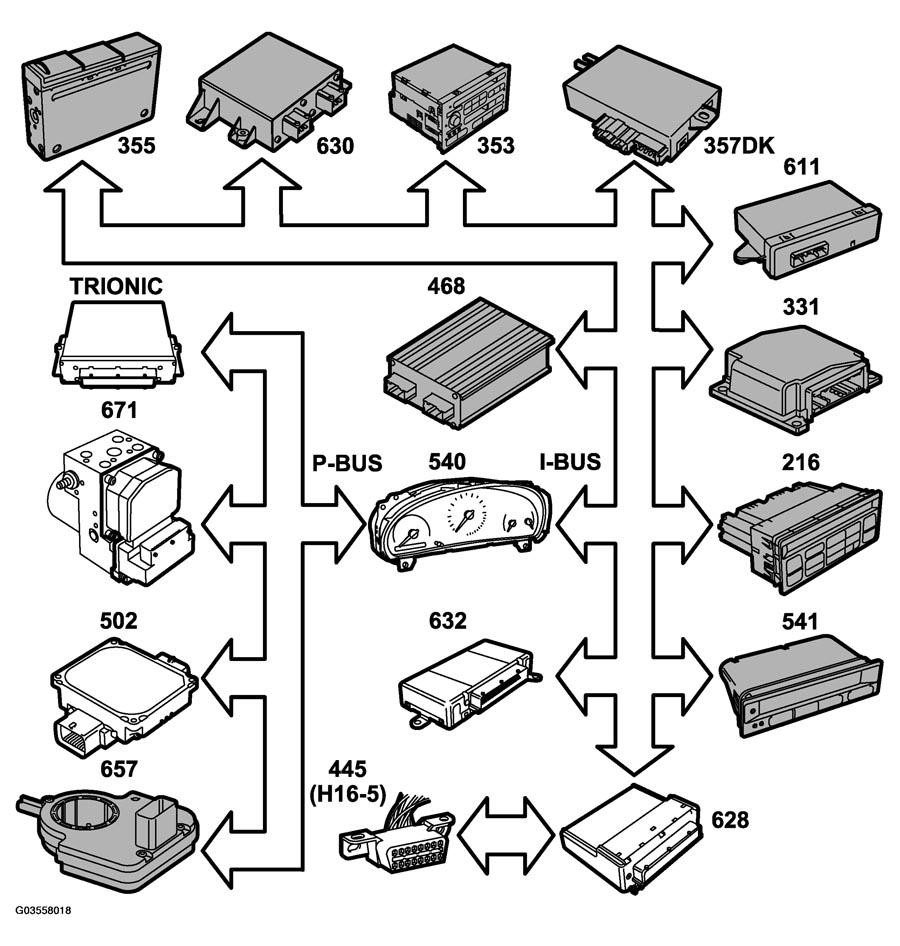

Fig 1: Identifying Control Module Bus Inputs Components
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Bus communication.
Accelerator position (Bus from Trionic).
Engine torque (Bus from Trionic).
Kickdown (Bus from Trionic).
Engine speed (Bus from Trionic).
Brake lights (Bus from TWICE) (632).
