TCS OFF/ESP OFF indicator lamp: Notes

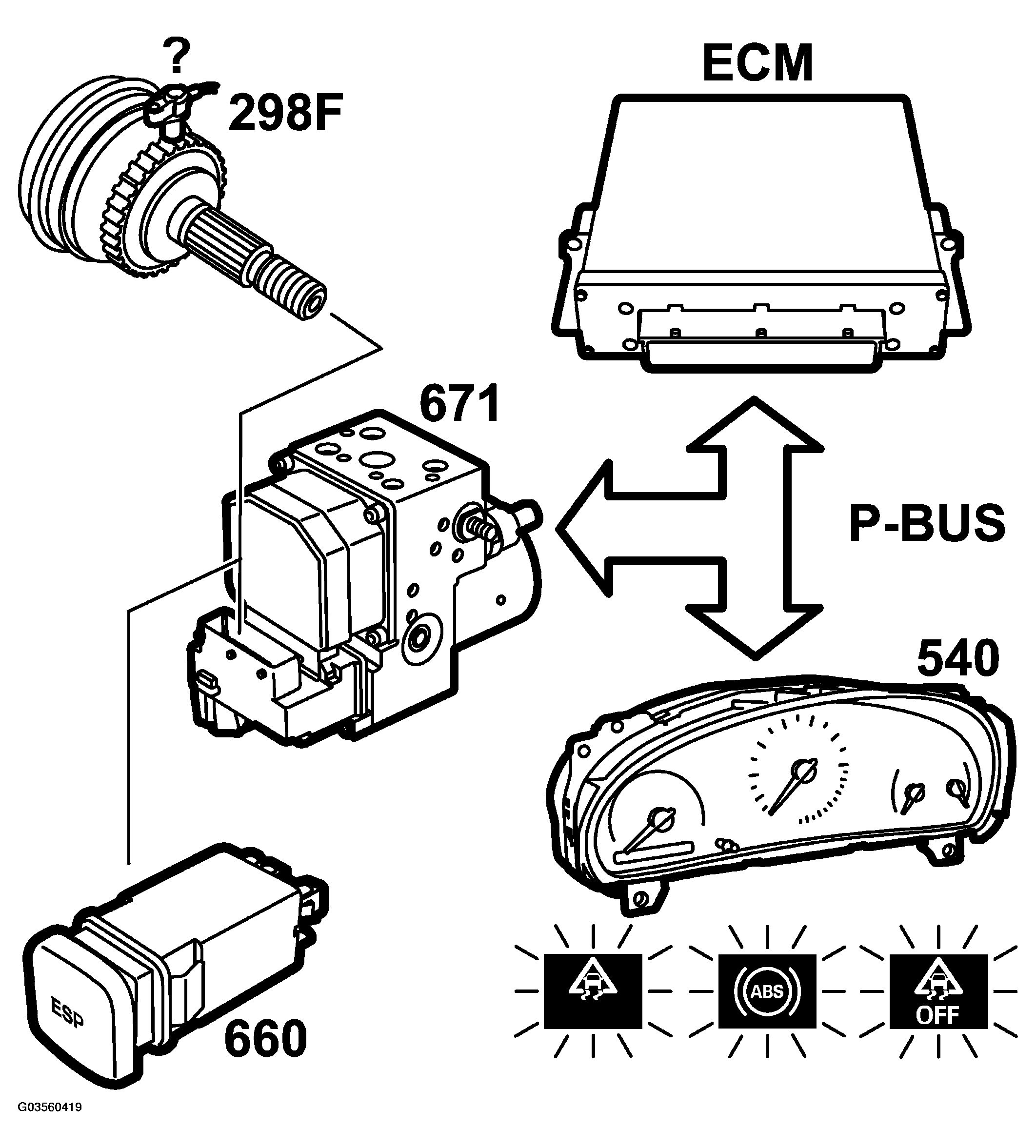

Fig 1: TCS OFF/ESP OFF Indicator Lamp - Communication Diagram
G03560419Courtesy of SAAB-SCANIA OF AMERICA, INC.

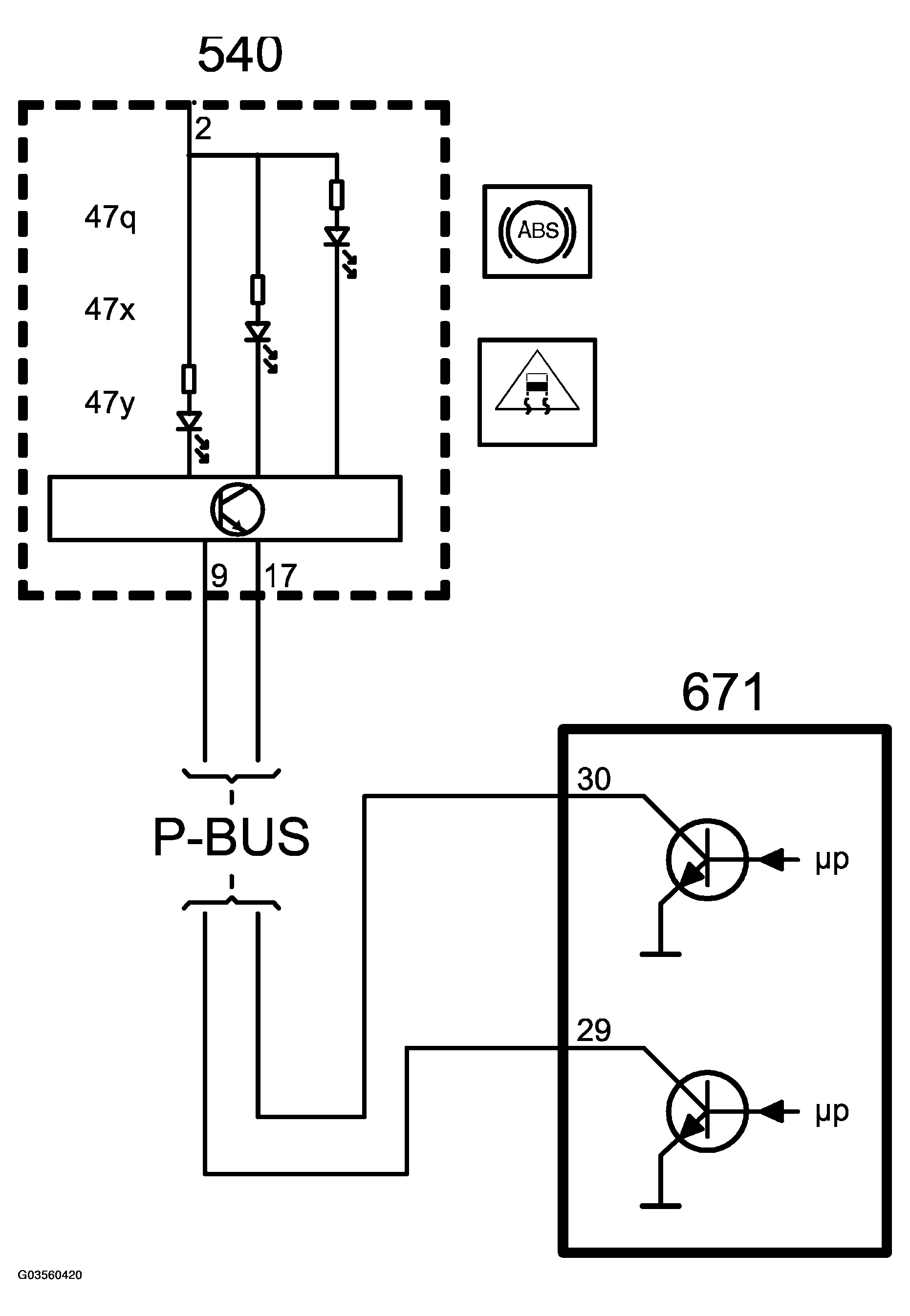

Fig 2: TCS OFF/ESP OFF Indicator Lamp - Circuit Diagram
G03560420Courtesy of SAAB-SCANIA OF AMERICA, INC.

The main instrument unit contains a TCS OFF/ESP OFF lamp.
