Injectors, flow capacity: V6

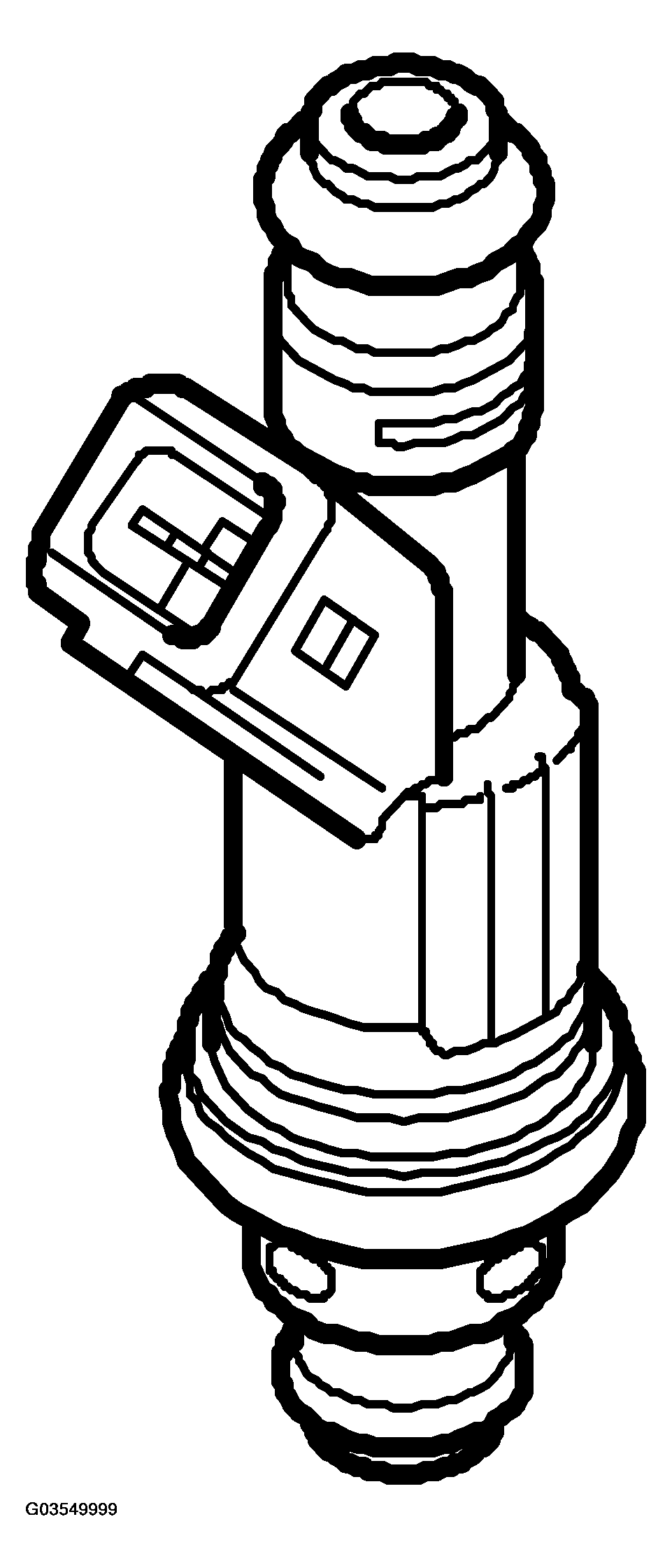

Fig 1: Identifying Injectors (V6)
G03549999Courtesy of SAAB-SCANIA OF AMERICA, INC.
FLOW CAPACITY (INJECTORS (V6))

B308E
Flow capacity ml/30s 109 +/- 4
Maximum permissible difference between injectors. ml 8
