To remove

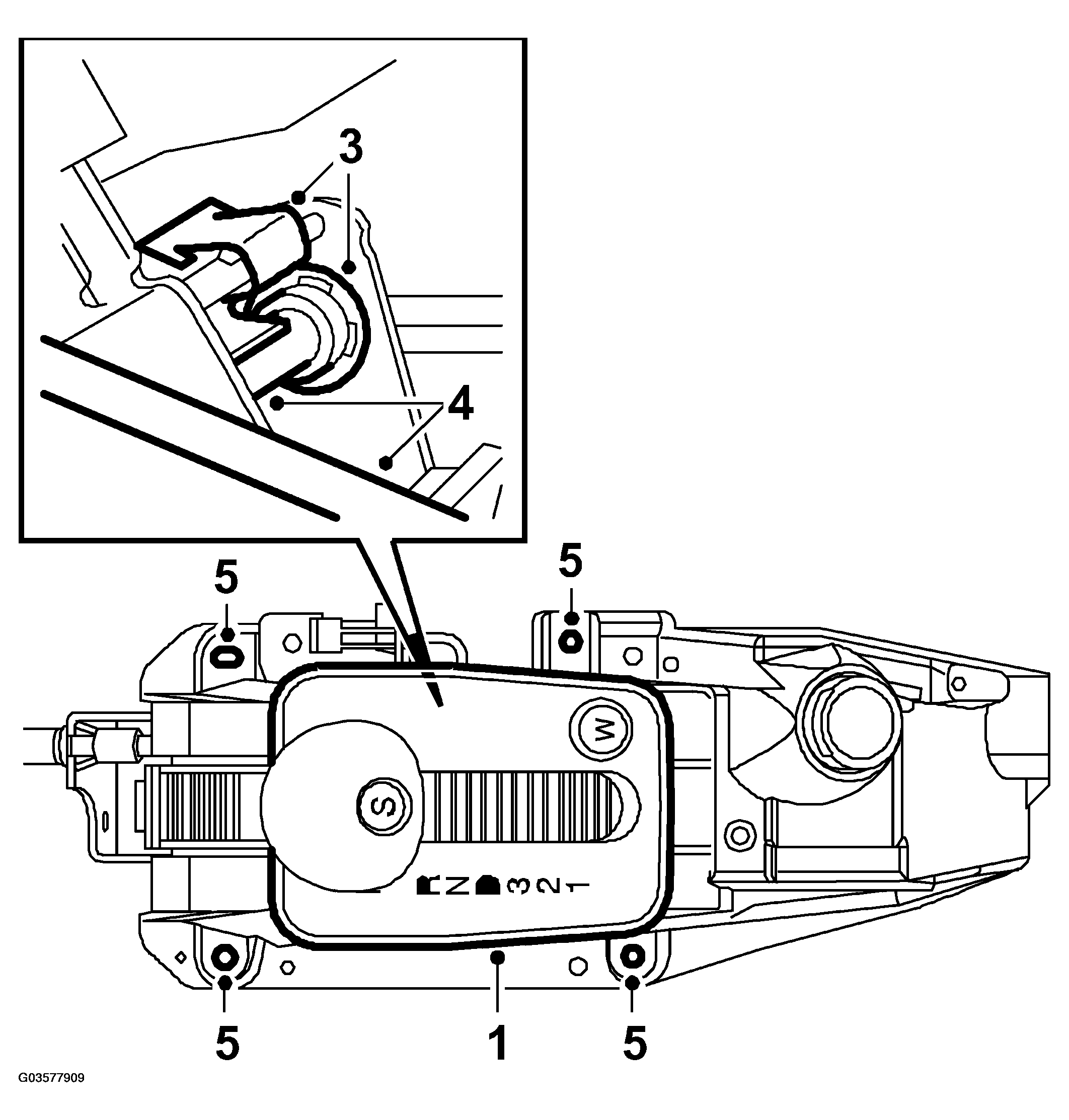

Fig 1: Illustration For Steps 1, 3 & 5
G03577909Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the center and floor consoles, see INTERIOR EQUIPMENT - 9-3 (9400) .
  2. Detach the air duct to the rear air vent.
  3. Remove the E-circlip and anti-rattle clip.
  4. Drive out the pin while removing the end of the cable from the ball.
  5. Remove the screws securing the gear lever housing.
  6. Unplug the selector lever housing's connector.
  7. Lift up the selector lever housing, undo the cable ties (2 pcs.) securing the wiring harness for the ignition switch and airbag, unplug the connection from the ignition switch.
  8. Remove the clamp located beside the locking catches.

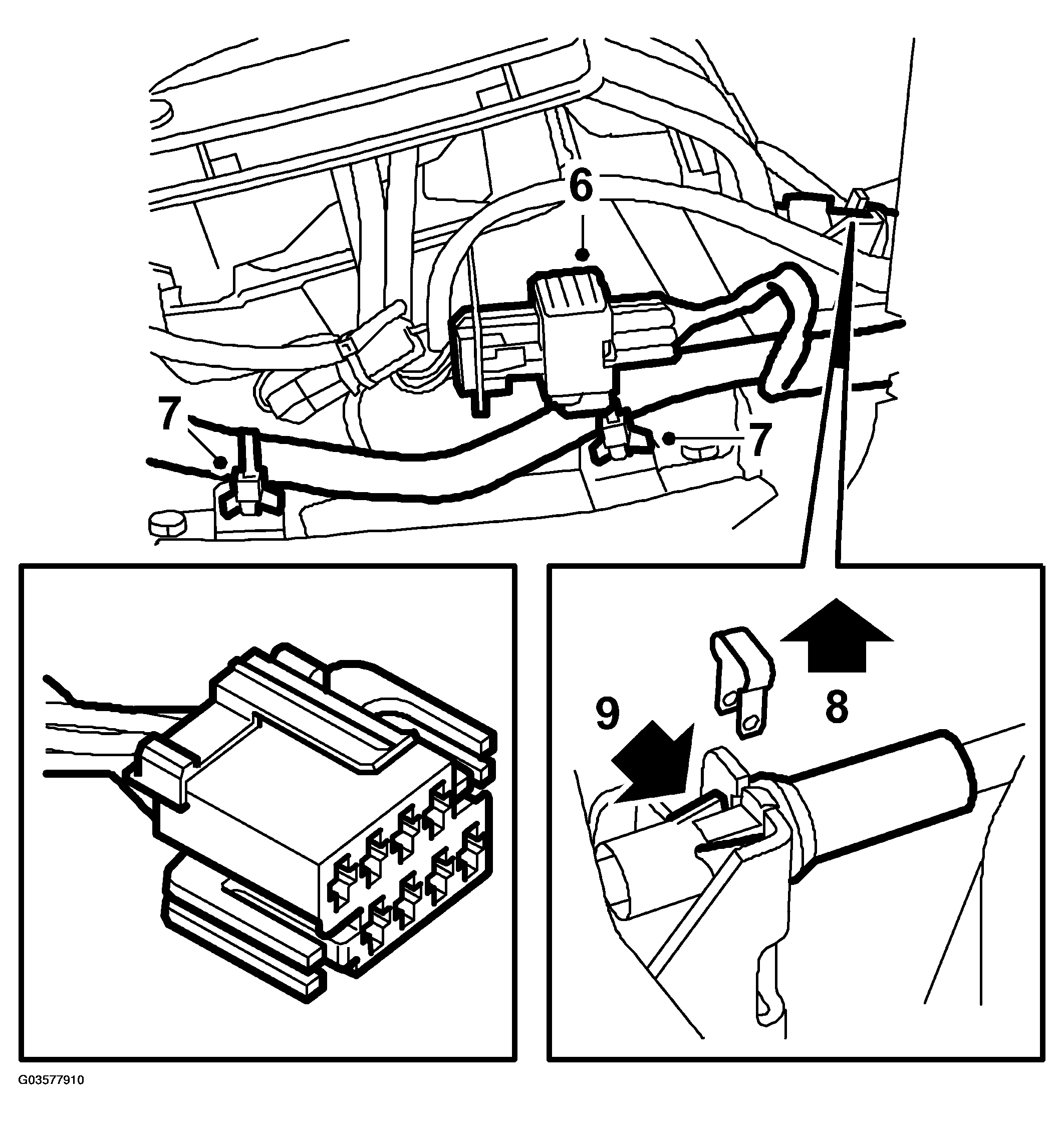

    Fig 2: Illustration For Steps 6-9
    G03577910Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Carefully press the catches securing the cable ferrule towards each other and remove the cable from the bracket.
  10. Lift out the selector lever housing.
