Control module, driver's door (702D): Location:

in door

J1

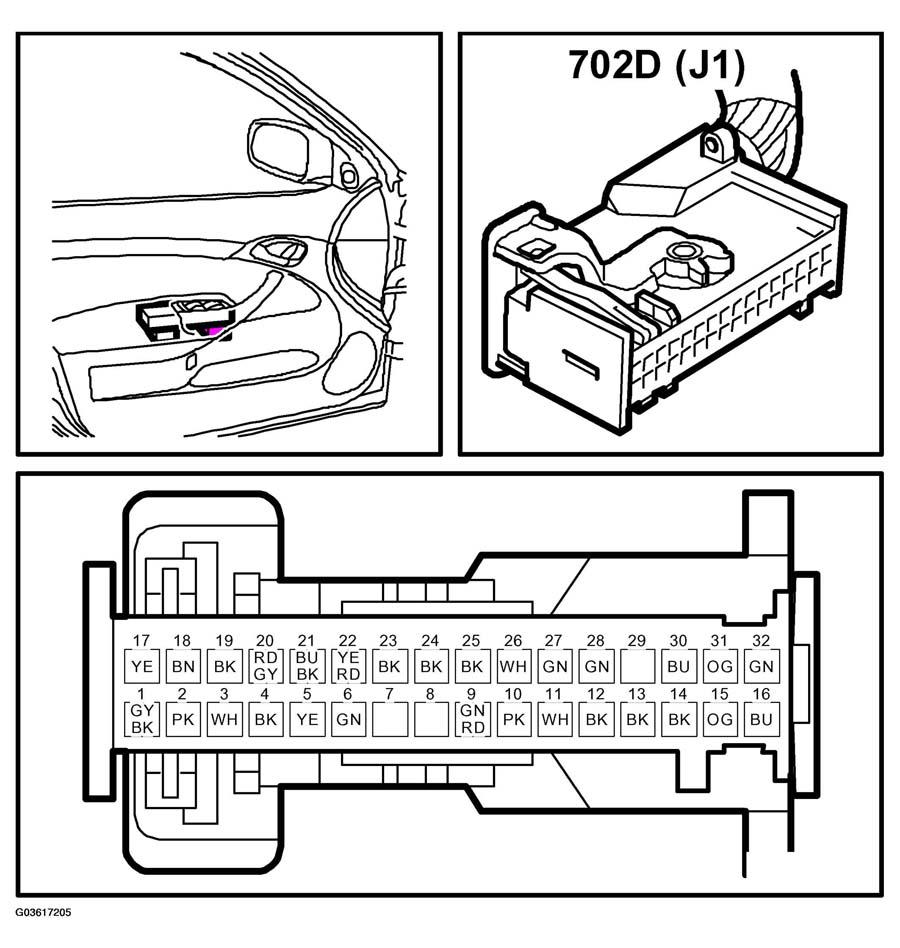

Fig 1: Identifying Control module, driver's door (702D)
G03617205Courtesy of SAAB-SCANIA OF AMERICA, INC.

J2

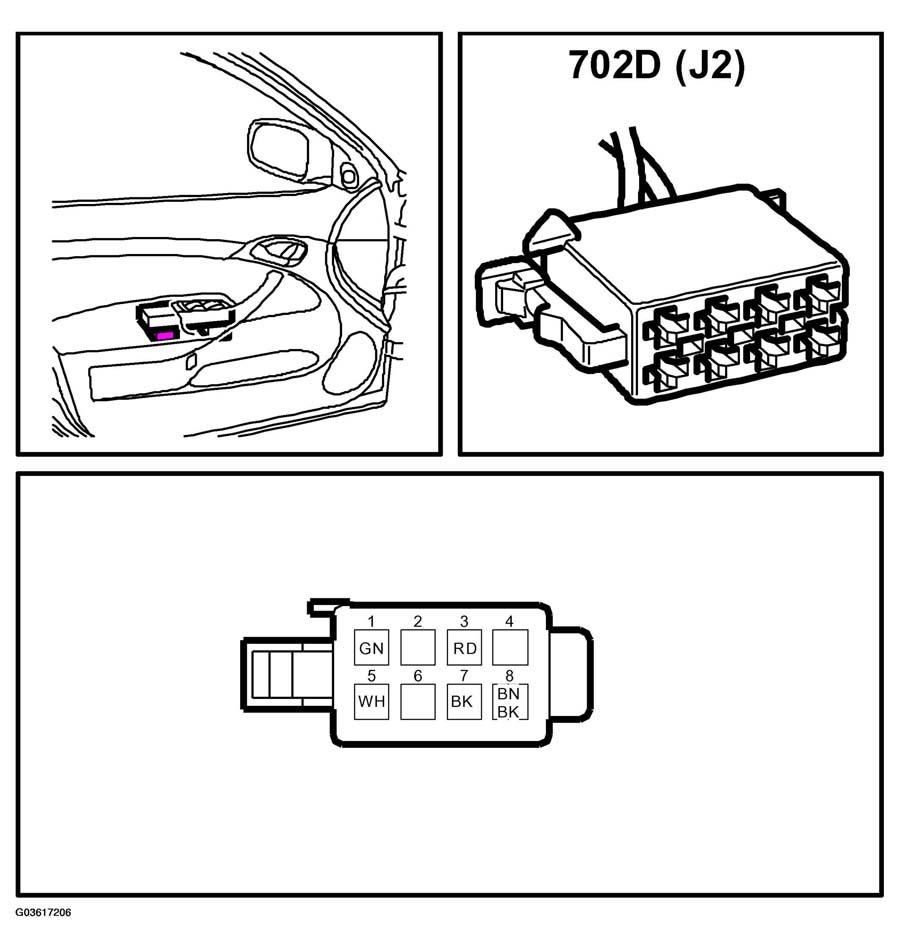

Fig 2: Identifying Control module, driver's door 702D (J2)
G03617206Courtesy of SAAB-SCANIA OF AMERICA, INC.
