Button lighting malfunctioning: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

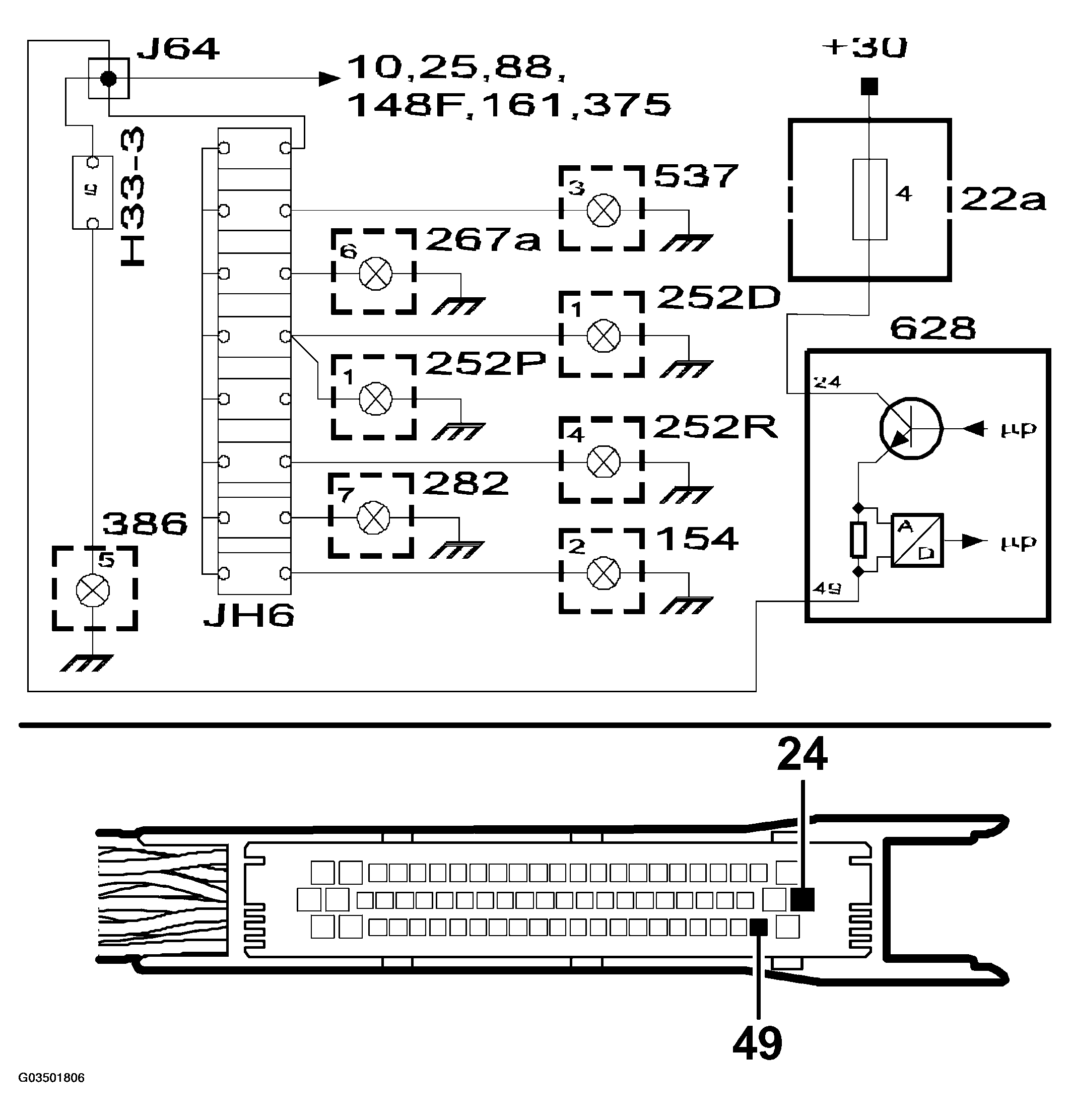

Fig 1: Identifying Button Lighting Circuit Diagram
G03501806Courtesy of SAAB-SCANIA OF AMERICA, INC.
