Lighting and key warning: Notes

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

DICE monitors the main lighting and the ignition key. If the main lighting is left on or the key is forgotten in the ignition switch, DICE gives a warning signal. The function can be turned ON/OFF.

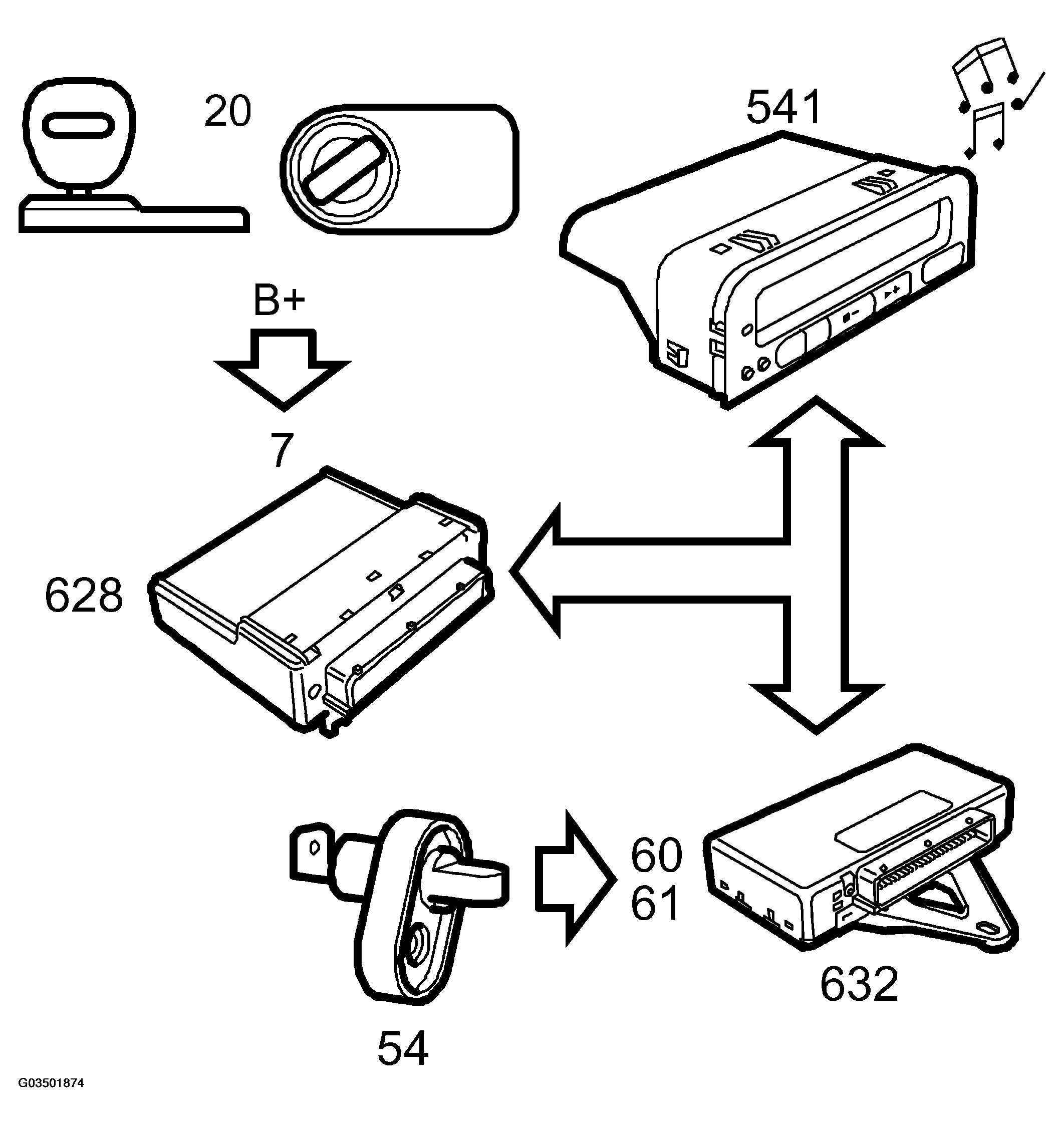

Fig 1: Identifying Communication Flow - Lighting And Key Warning

Courtesy of SAAB-SCANIA OF AMERICA, INC.

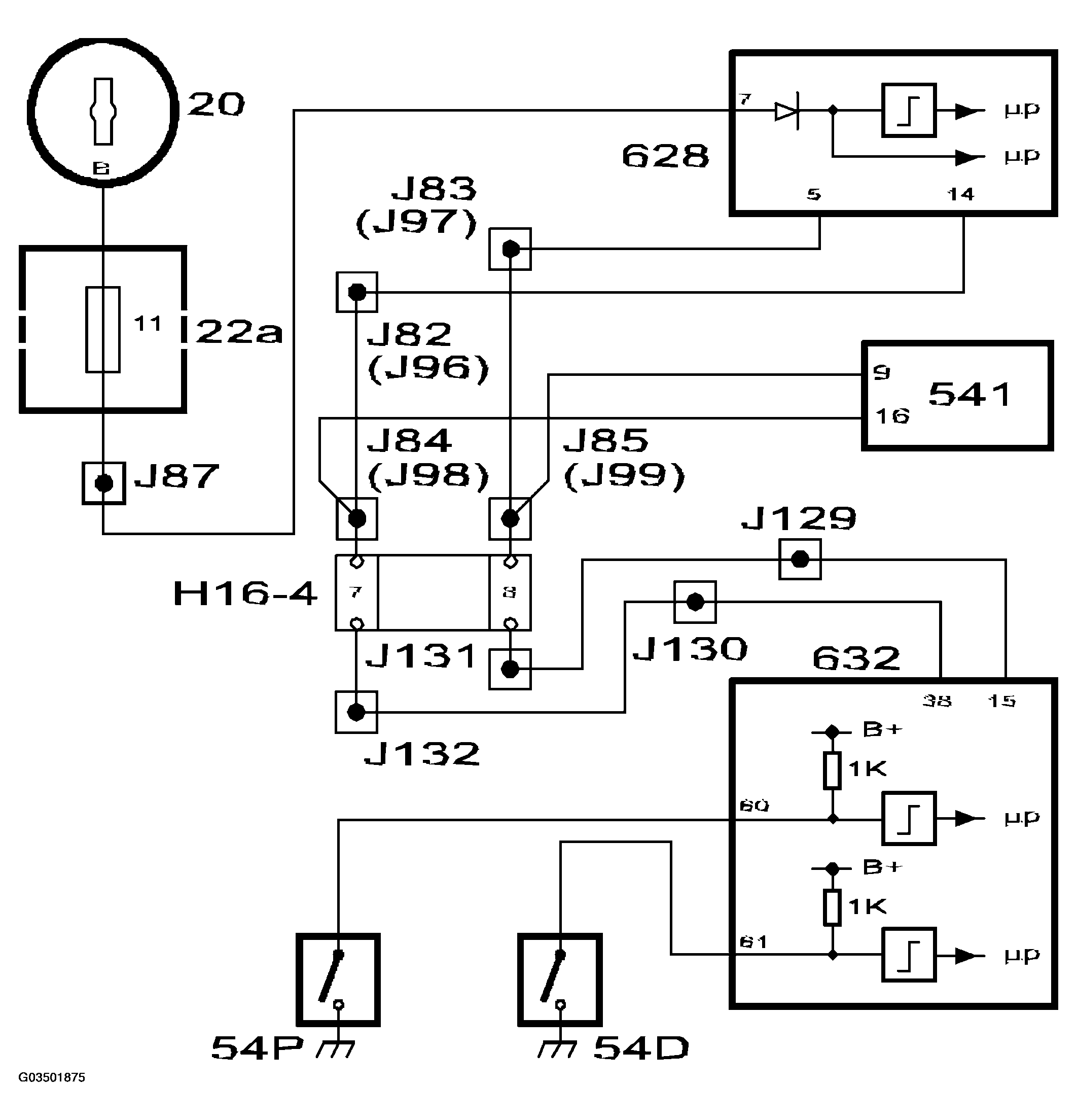

Fig 2: Identifying Lighting And Key Warning Circuit Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
