To fit

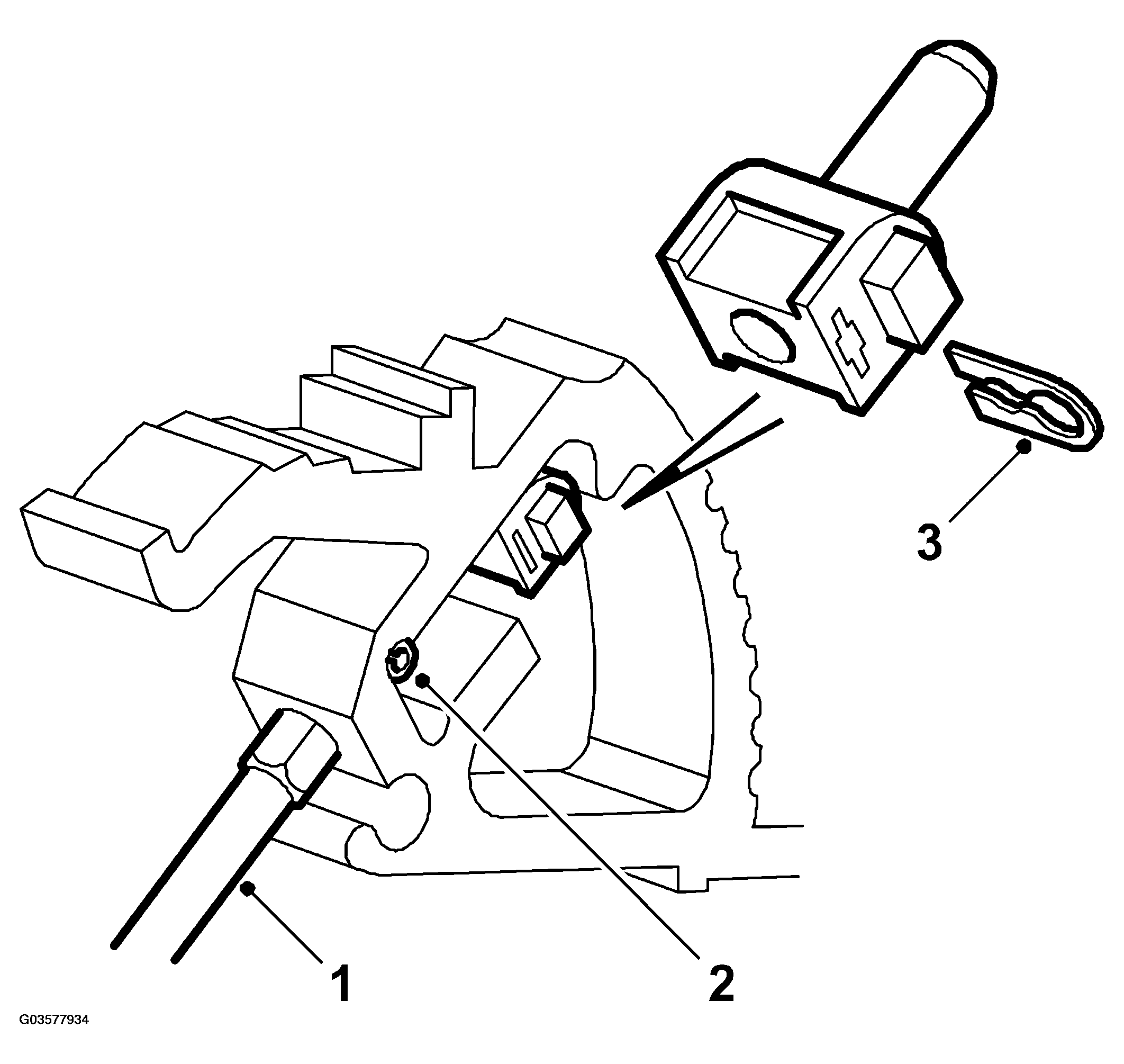

Fig 1: Illustration For Steps 1-3
G03577934Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Connect the cable to the holder and locking pin.
  2. Fit the expanding pin securing the cable ferrule.
  3. Fit the clip in the locking pin.
  4. Fit the selector lever in the holder.

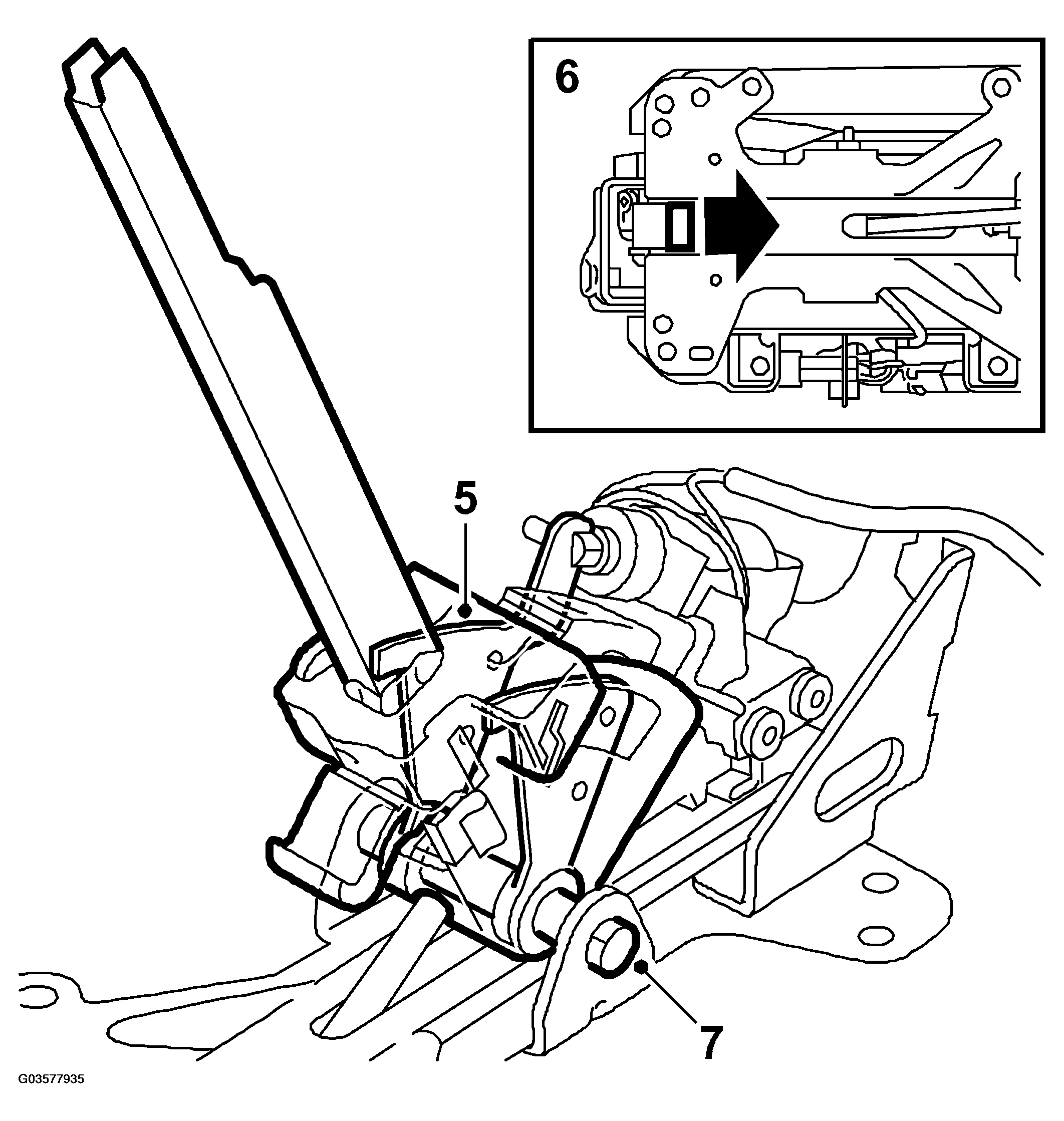

    Fig 2: Illustration For Steps 5-7
    G03577935Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Fit the spacer sleeve through the selector lever, ignition switch lock catch, shift lock catch and the holder.
  6. Fit the selector lever with holder into the groove at the front of the base plate.
  7. Fit the bolt and tighten it.
  8. Fit the selector lever and ignition switch in the selector lever housing. Place the sport button's lead in the clip.
  9. Rivet the parts of the selector lever housing together.

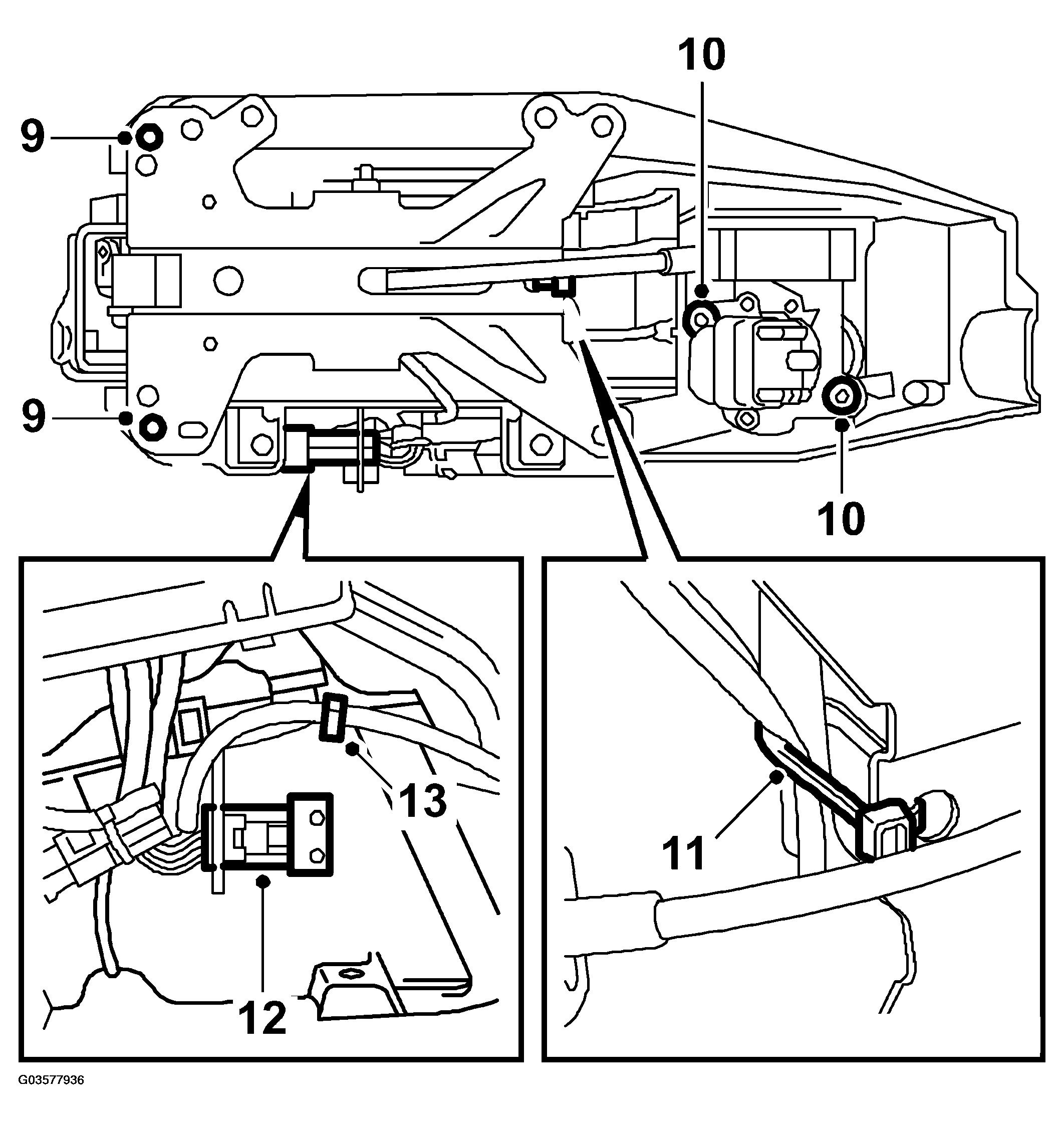

    Fig 3: Illustration For Steps 9-13
    G03577936Courtesy of SAAB-SCANIA OF AMERICA, INC.
  10. Screw the ignition switch in place. Fit the shift indicator display.
  11. Fit a cable tie to hold the lead for the lighting in place.
  12. Connect the wires to the electromagnet (cars with ignition lock).
  13. Fit a cable tie through the hole in the selector lever and around the electromagnet cables.
  14. Fit the ignition switch lock cylinder, see IGNITION SWITCH CYLINDER .
  15. Assemble the selector lever casing, see SELECTOR LEVER CASING .
  16. Fit the selector lever housing, see SELECTOR LEVER HOUSING .
