To fit

IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector. For further information regarding connectors, refer to CONNECTORS, HANDLING AND INSPECTION .

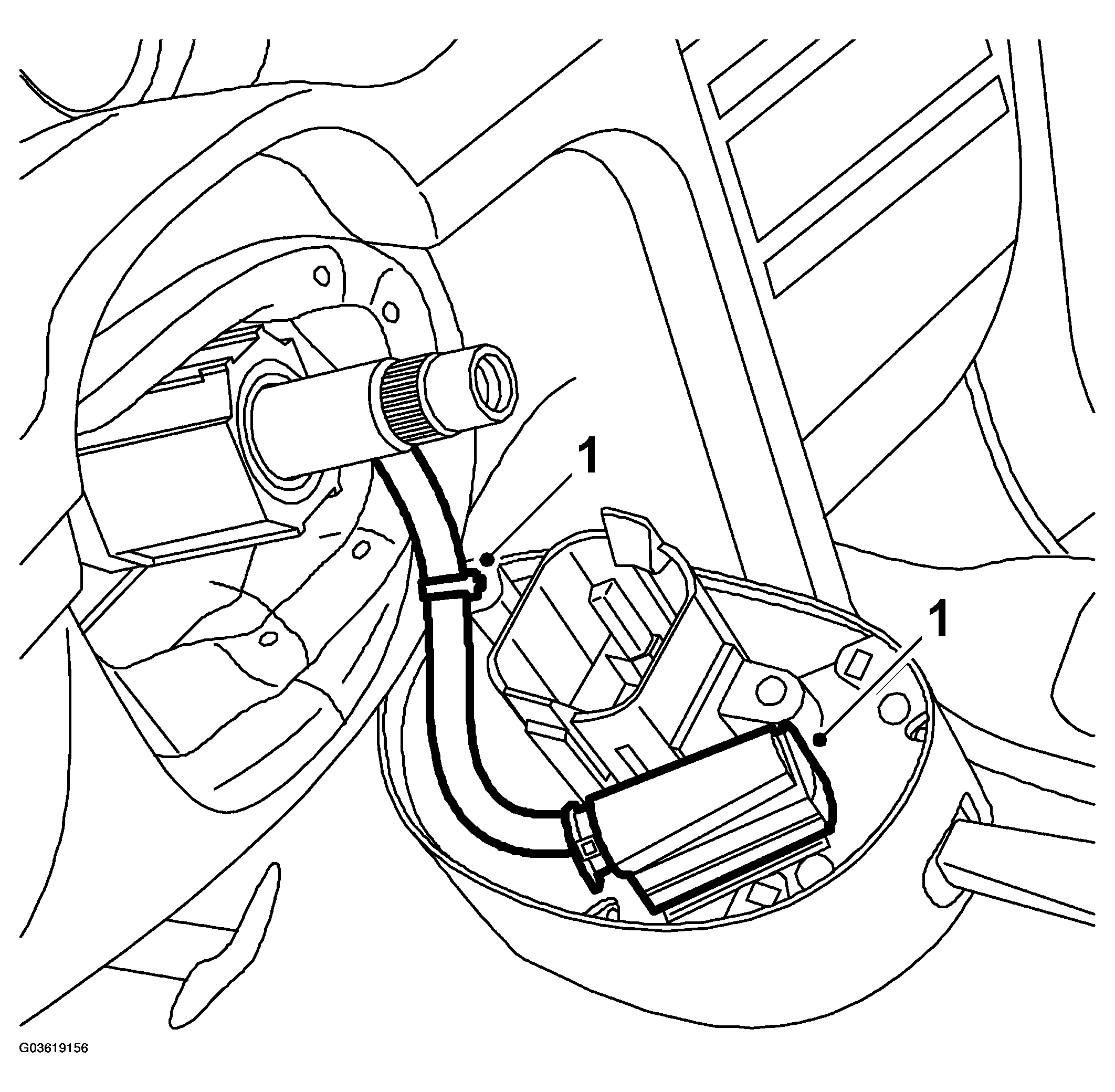

  1. Plug in the control module connector and fit the clip.
    Fig 1: Illustration For Step 1
    G03619156Courtesy of SAAB-SCANIA OF AMERICA, INC.

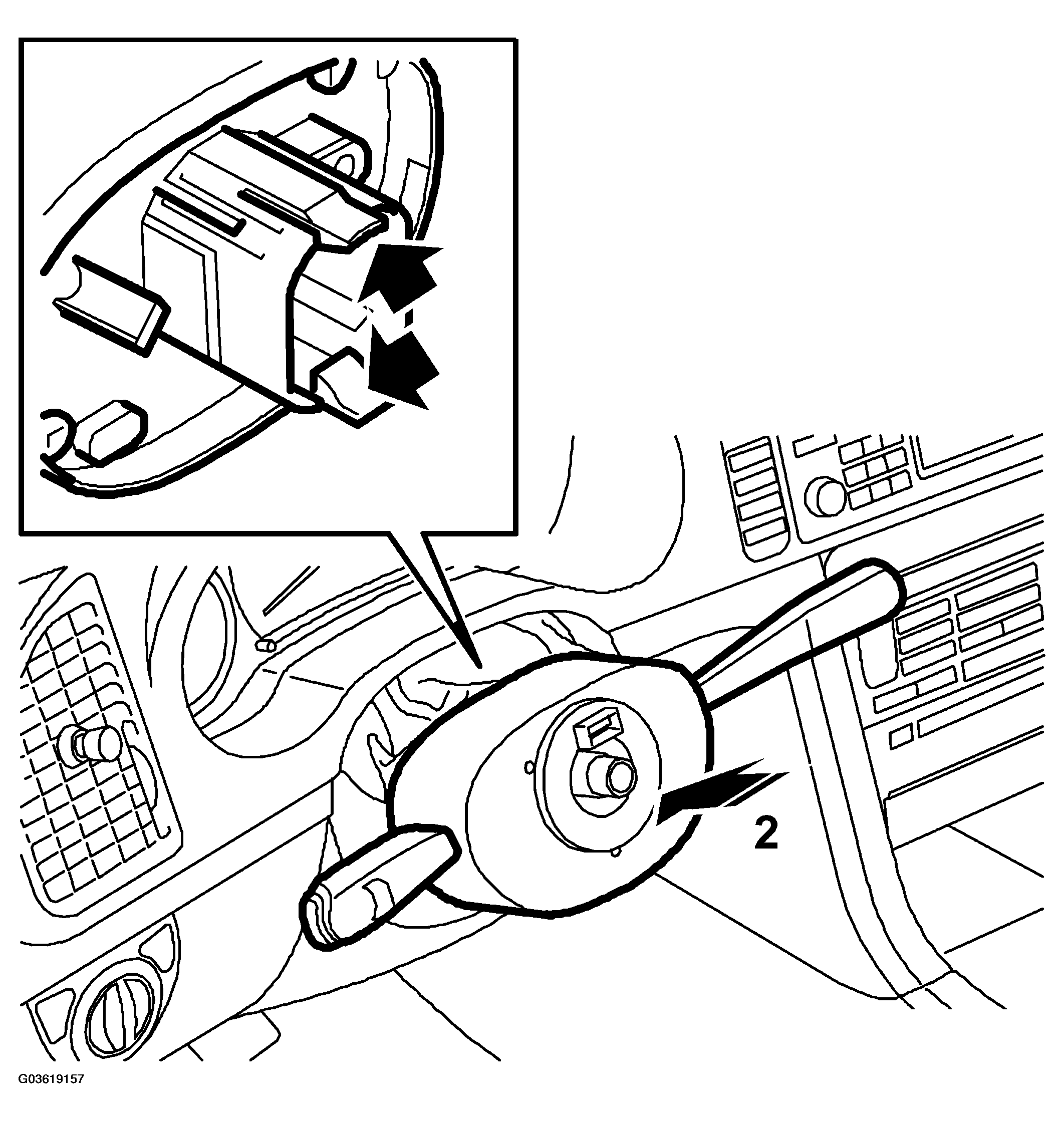

  2. Fit the control module to the steering shaft.
    Fig 2: Illustration For Step 2
    G03619157Courtesy of SAAB-SCANIA OF AMERICA, INC.

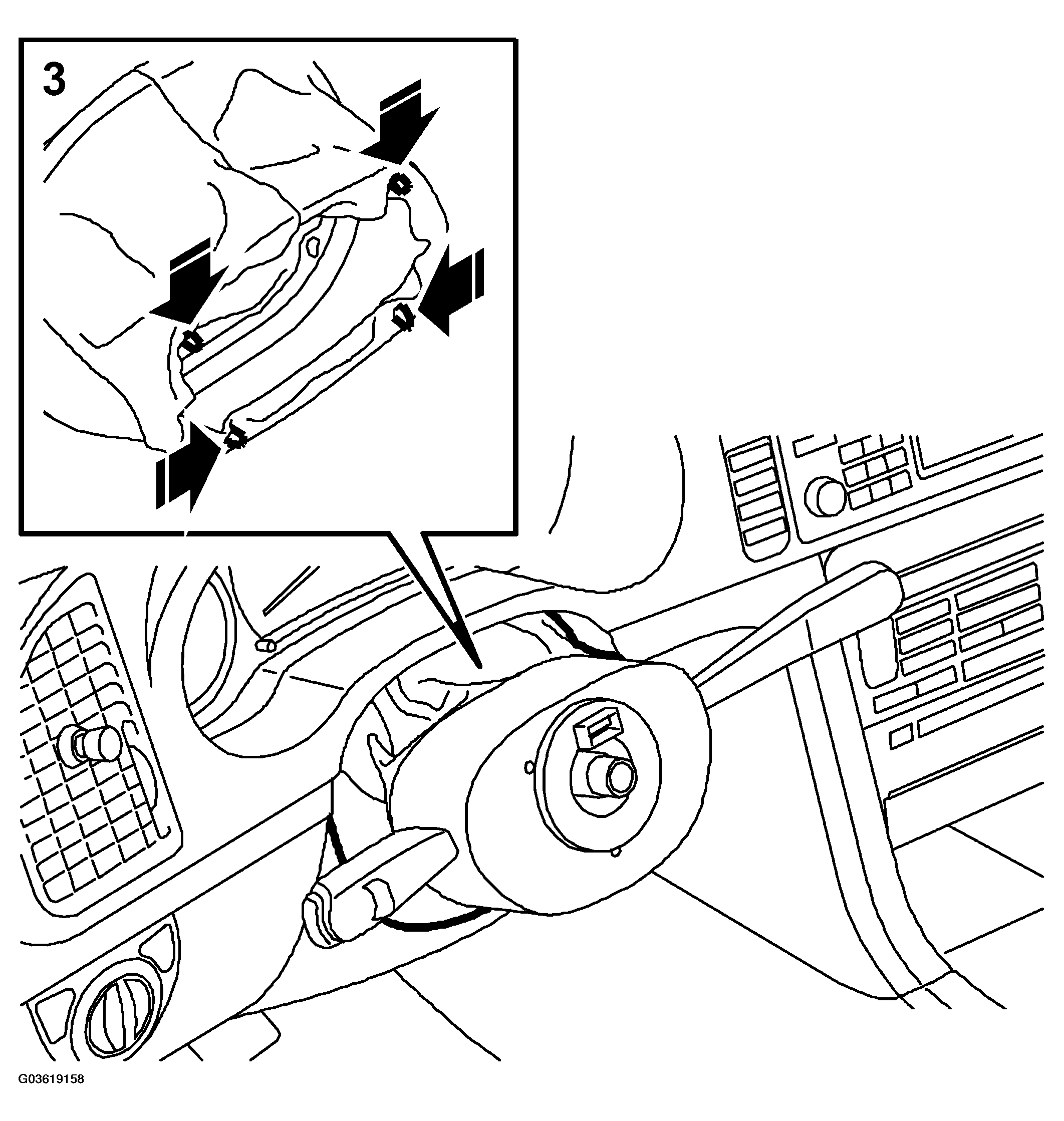

  3. Fit the gaiter to the control module.
    4. Fig 3: Fitting Gaiter To Control Module
    G03619158Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Fit the steering wheel.
  5. Carry out "Procedure after changing the control module".
