Control module, PSG 16 (595)

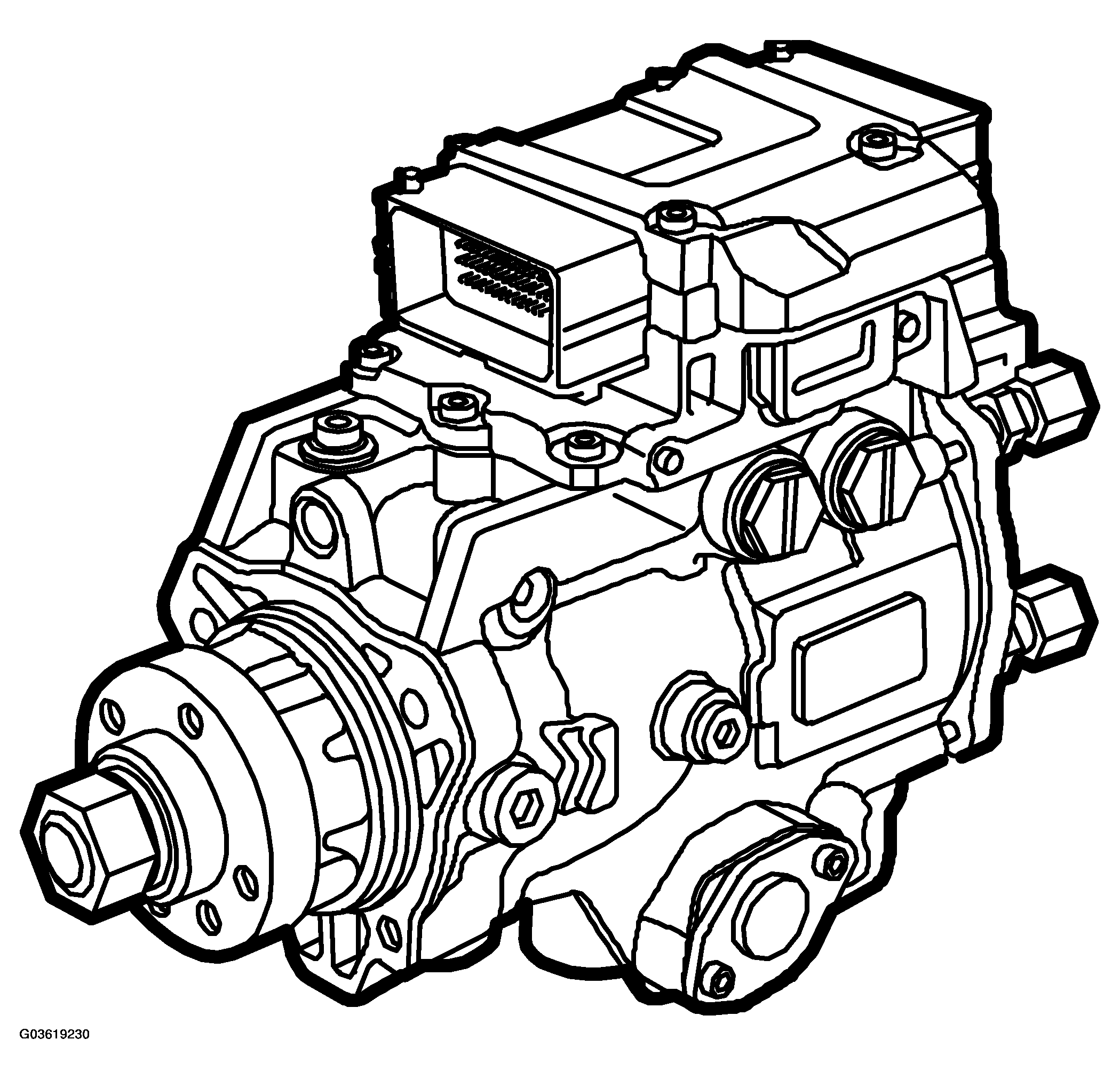

Fig 1: Identifying Control Module, PSG 16 (595)
G03619230Courtesy of SAAB-SCANIA OF AMERICA, INC.
CONTROL MODULE, PSG 16 (595) SPECIFICATION

No. of pins     56 on K switch and 56 on M switch
Power supply (+15 circuit)   pin no. 16(K)
P-bus + pin no. 29(K)
  - pin no. 17(K)
