Pressure sensor, charge air (603): PSG16

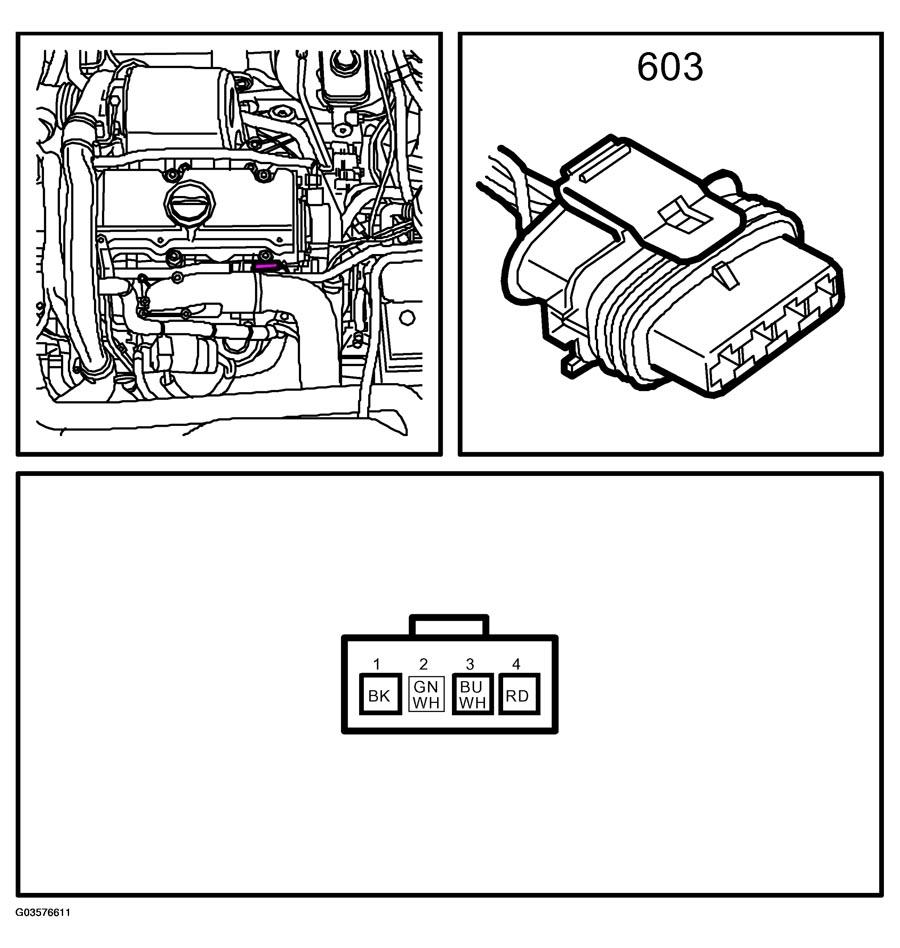

Fig 1: Identifying Charge Air Pressure Sensor Connector Pinouts - PSG16
G03576611Courtesy of SAAB-SCANIA OF AMERICA, INC.
