Adjustment - Replacement: Relay: Removing

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the soft top and position the soft top cover straight up.
  2. Remove the side trim. see REAR SIDE TRIM, CV .
  3. Remove the relay holder.
  4. Remove the relay.

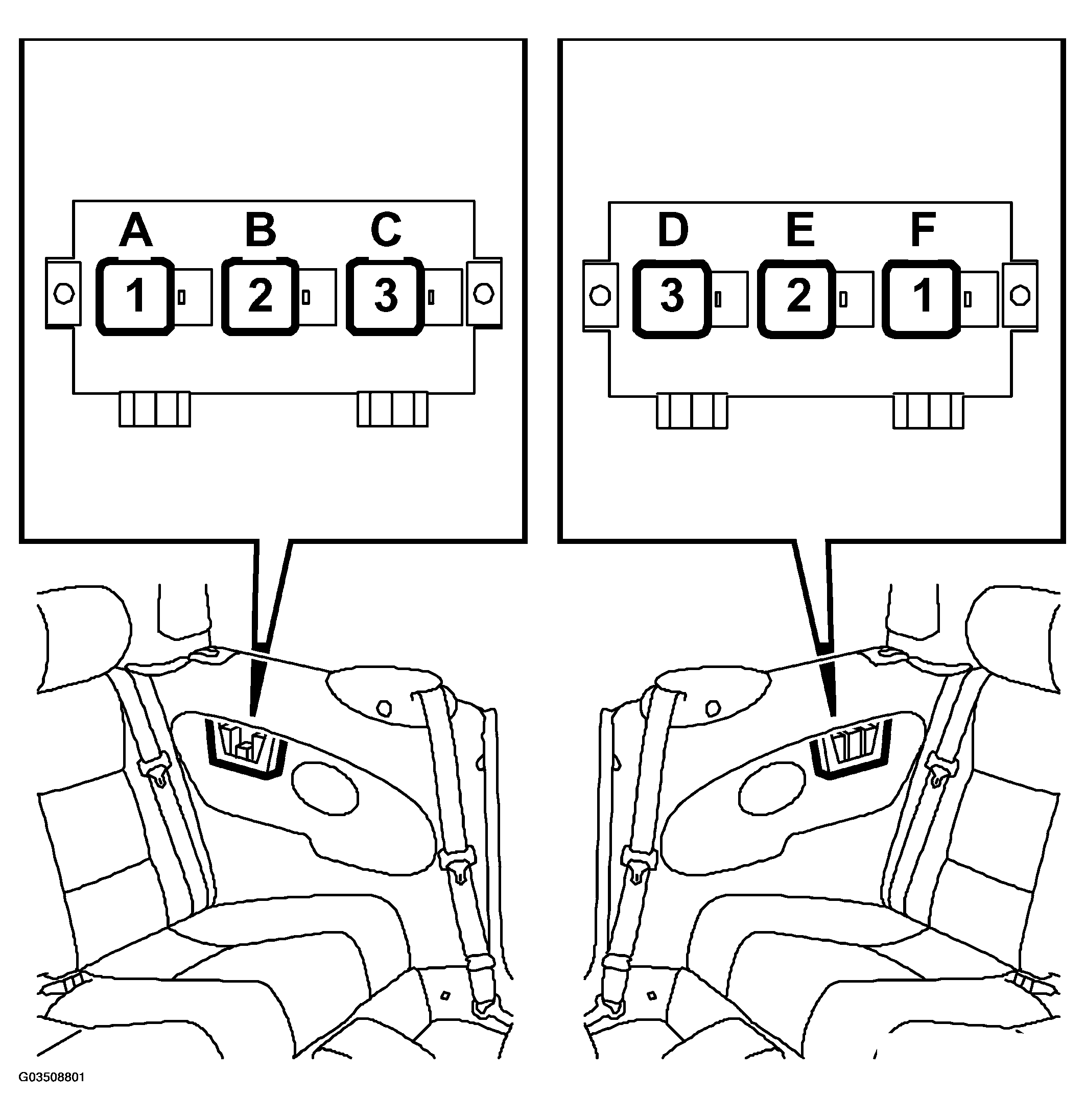

    Fig 1: Removing Relay
    G03508801Courtesy of SAAB-SCANIA OF AMERICA, INC.
    1. 4.A. Window lift left front. (Pos 519LH:1)
    2. 4.B. Main relay, pump motor. (Pos 519LH:2)
    3. 4.C. Window lift left rear. (Pos 519LH:3)
    4. 4.D. Window lift right rear. (Pos. 519RH:3)
    5. 4.E. Fifth bow. (Pos. 519RH:2)
    6. 4.F. Window lift right front. (Pos. 519:RH:1)
