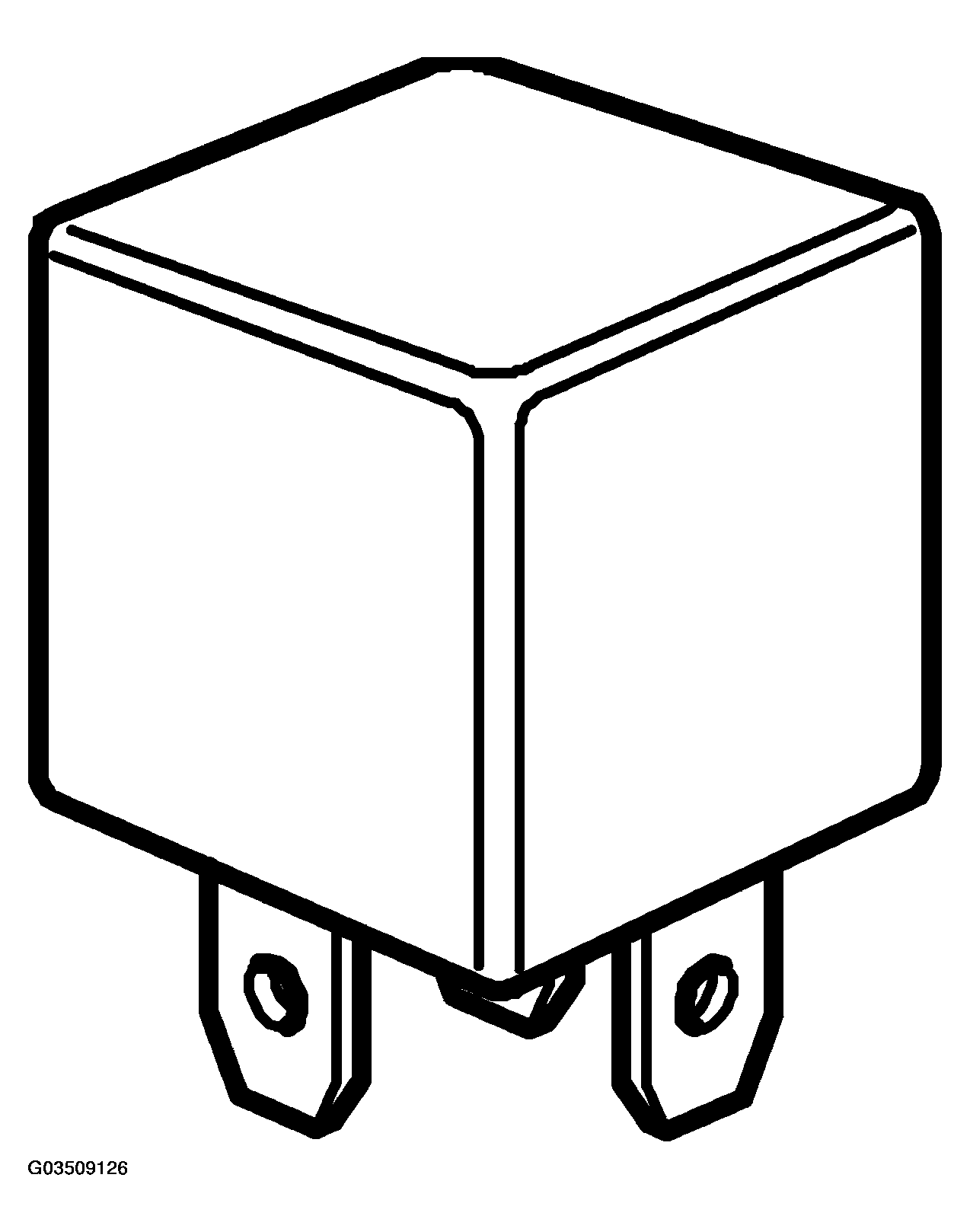

Operating relay, pump motor
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - PUMP MOTOR OPERATING RELAY
| Resistance, operational winding at 20°C |
Ohm |
93 -- 113 |
| Nominal operating voltage |
V |
12 |
| Rated power, active position at 14V |
A |
40 |
| Rated power, inactive position at 14V |
A |
30 |
