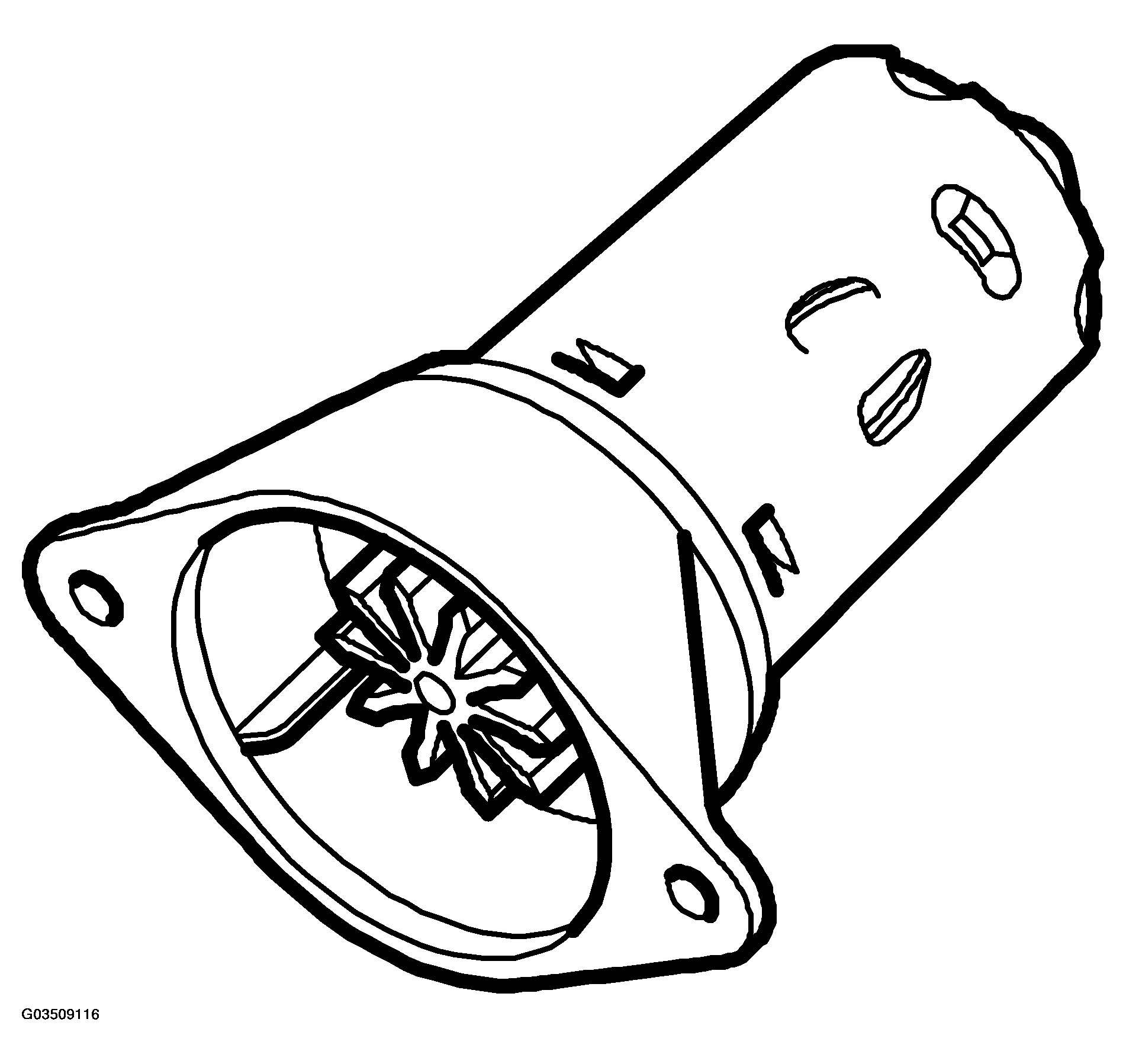

Pump motor
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - PUMP MOTOR
| Motor type |
|
Permanent magnet |
| Power supply |
V |
12 |
| Current consumption at 140 bar |
A |
27 |
| Max. current consumption |
A |
30 |
| System pressure |
bar |
120 +10/-0 |
