Control module outputs, VR bus

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

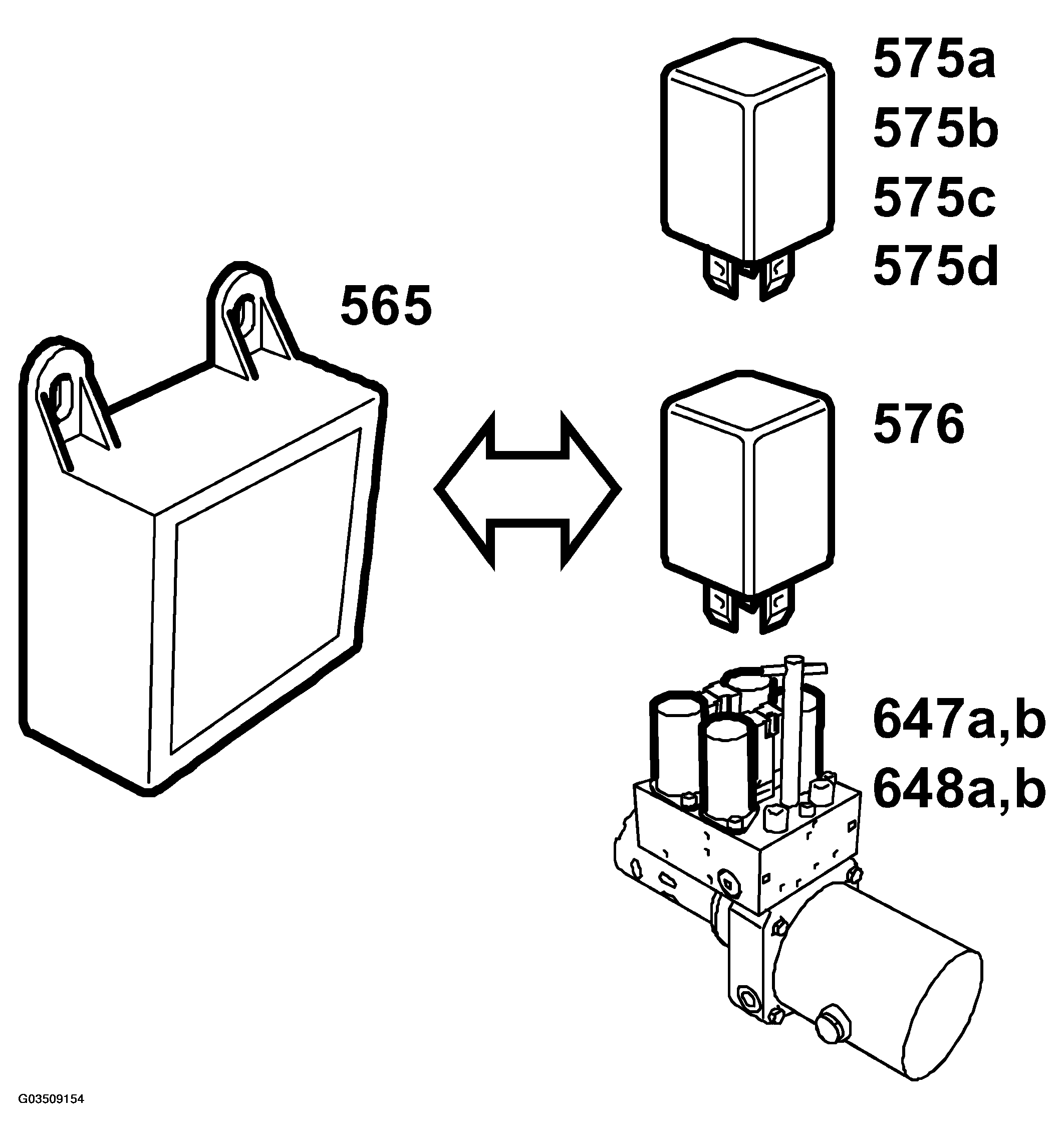

Fig 1: VR Bus Control Module Outputs Communication Components

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Relay, front left window lift (575a). See FUSES & CIRCUIT BREAKERS
Relay, front right window lift (575b). See FUSES & CIRCUIT BREAKERS
Relay, rear left window lift (575c). See FUSES & CIRCUIT BREAKERS
Relay, rear right window lift (575d). See FUSES & CIRCUIT BREAKERS
Relay, fifth bow latch motor (576). See FUSES & CIRCUIT BREAKERS
Hydraulic valve 1, fifth bow down (647a). See FUSES & CIRCUIT BREAKERS
Hydraulic valve 2, main cylinder up (647b). See FUSES & CIRCUIT BREAKERS
Hydraulic valve 3, fifth bow up (647c). See FUSES & CIRCUIT BREAKERS
Hydraulic valve 4, main cylinder down (647d). See FUSES & CIRCUIT BREAKERS
