Washer Pump

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

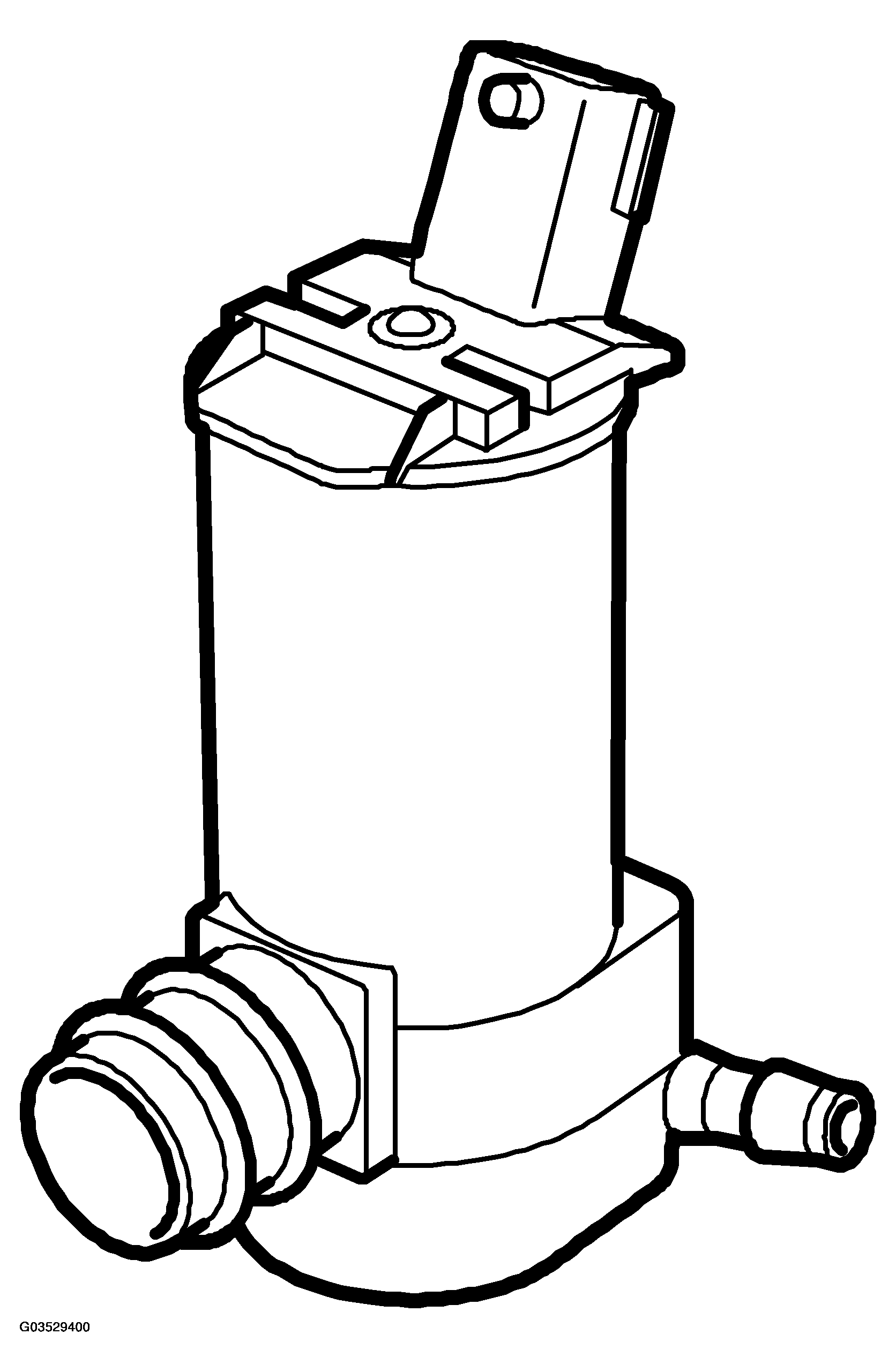

Fig 1: Identifying Washer Pump
G03529400Courtesy of SAAB-SCANIA OF AMERICA, INC.
WASHER PUMP TECHNICAL DATA

Location On the washer fluid reservoir
Manufacturer Denso
Type Centrifugal pump
Power consumption 5.31.2 nom. A
Washing pressure at the pump at +23°C, 13.5 V (2 washer nozzles) 2.3 bar
