Windscreen Wiper Motor

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

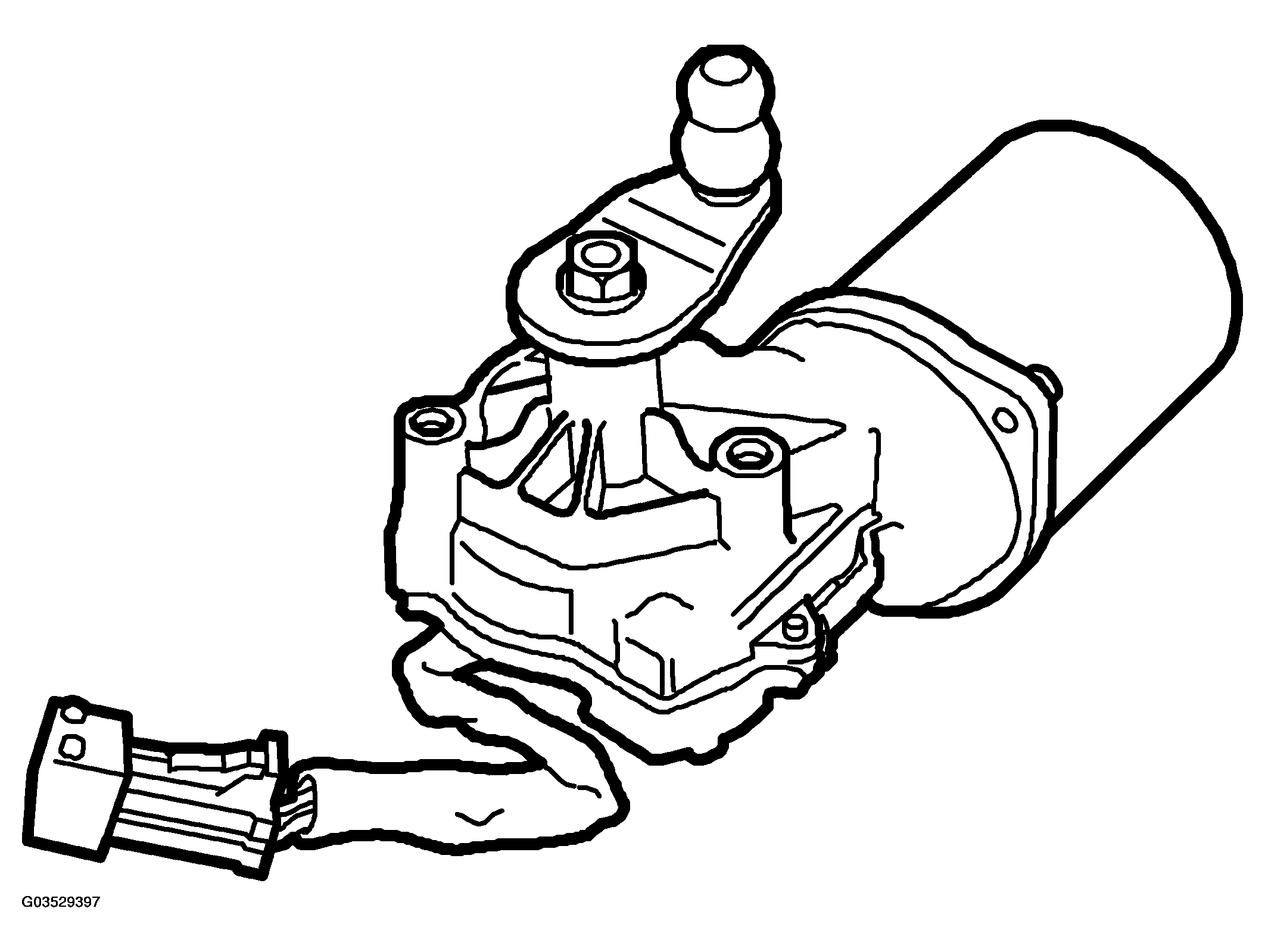

Fig 1: Identifying Windscreen Wiper Motor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

WINDSCREEN WIPER MOTOR TECHNICAL DATA

Manufacturer	Denso
Stroke (strokes/min.) and power consumption at 13.5V with a wet windscreen:
Low speed	485 RPM
High speed	736 RPM
Nominal power consumption (with a wet windscreen after 30 mins. driving):
Low speed	4.5 A
High speed	7 A
Power consumption at 13.5V, jammed motor: (e.g., frozen wiper blades)
High speed	40 A
High speed	40 A
Maximum torque (at the spindle, at 13.5 V and with a warm engine)
Low speed	23.56 Nm
High speed	17.55 Nm
