Antenna Unit, Immobilization: Notes

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

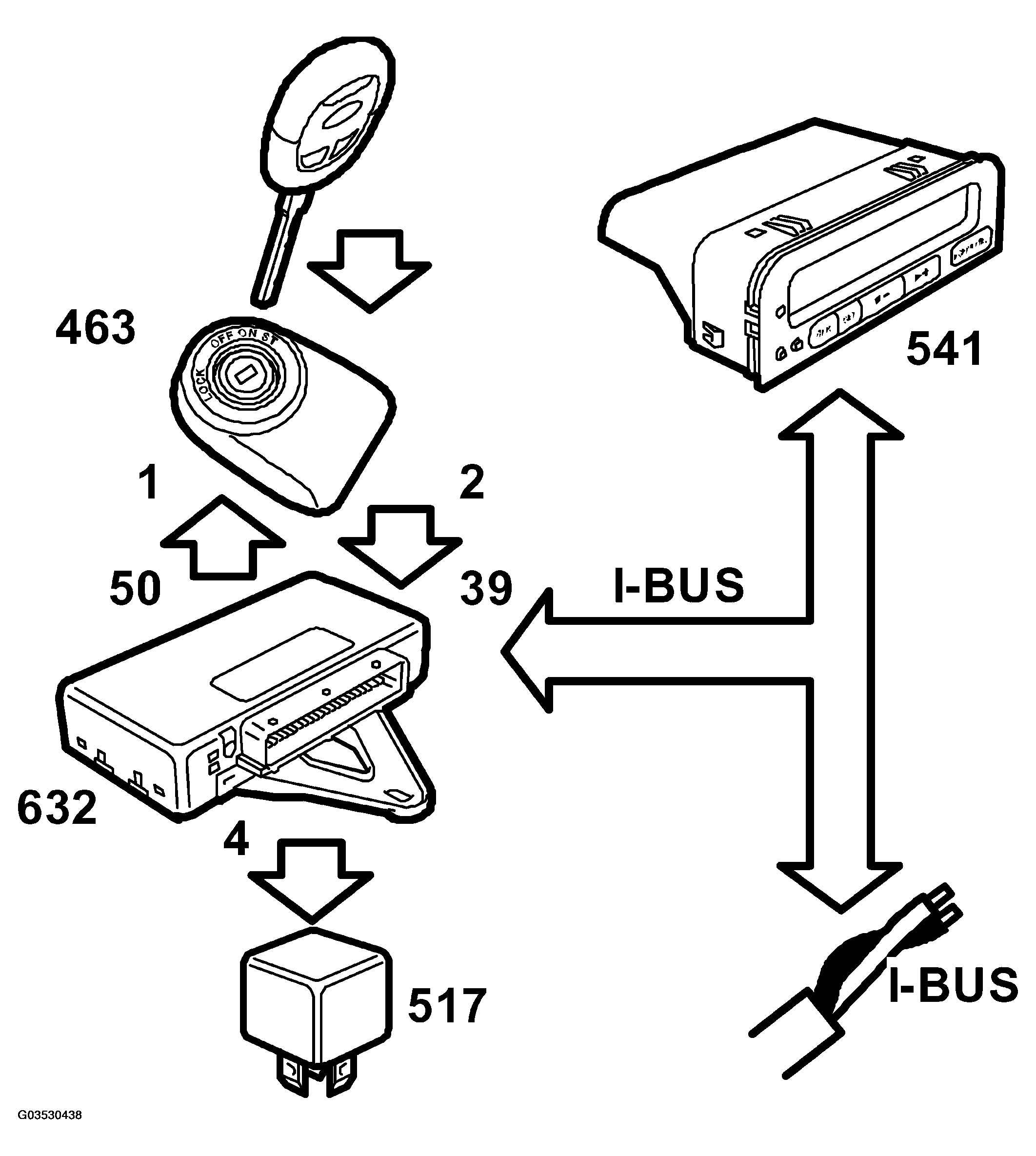

Fig 1: Communication Diagram - Antenna Unit, Immobilization
G03530438Courtesy of SAAB-SCANIA OF AMERICA, INC.

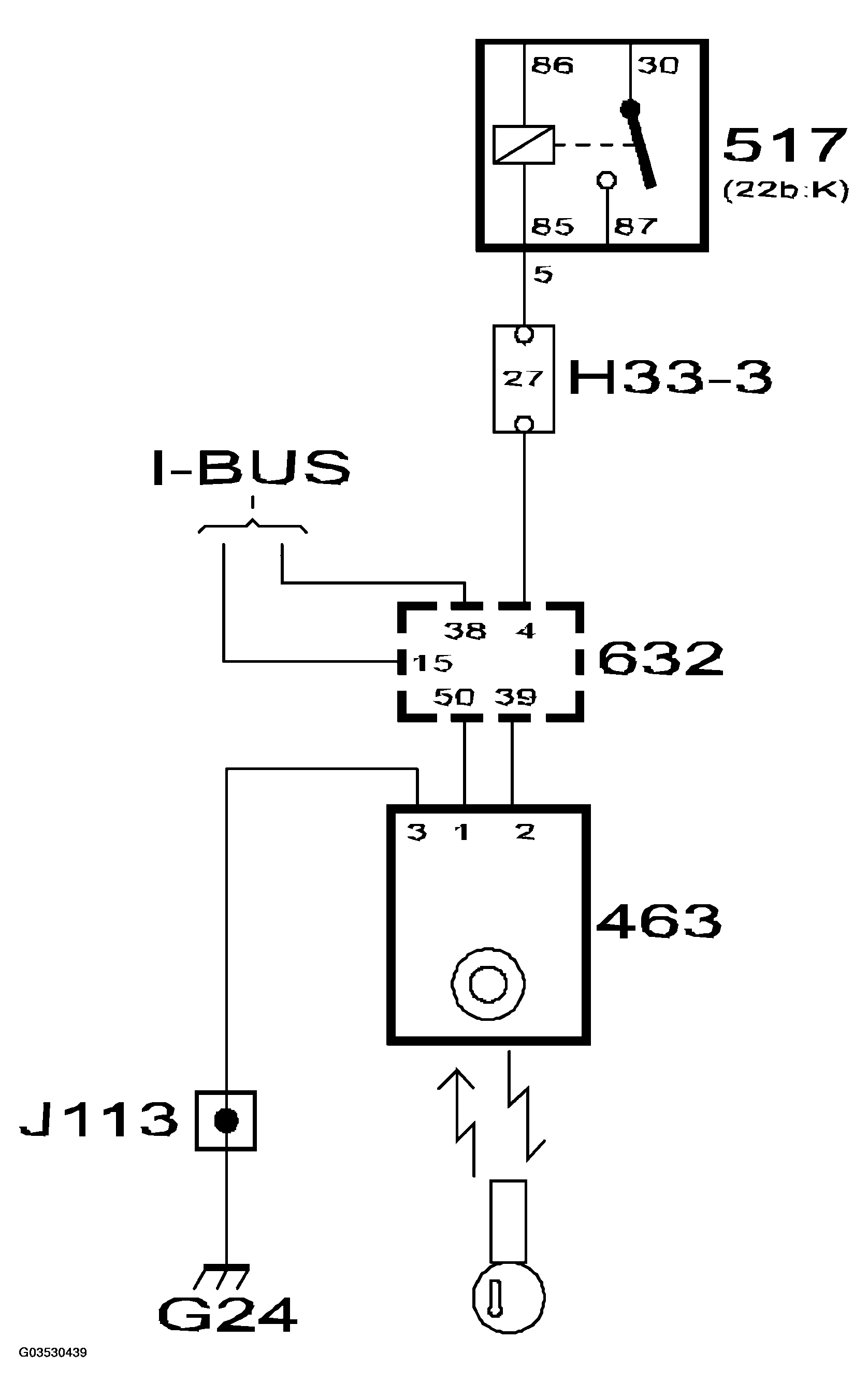

Fig 2: Circuit Diagram - Antenna Unit (Immobilization)
G03530439Courtesy of SAAB-SCANIA OF AMERICA, INC.
