5V supply: Notes

The following sensors are supplied with 5V from control module pins 69 and 46. The two 5V supplies are coupled together internally in the throttle body.

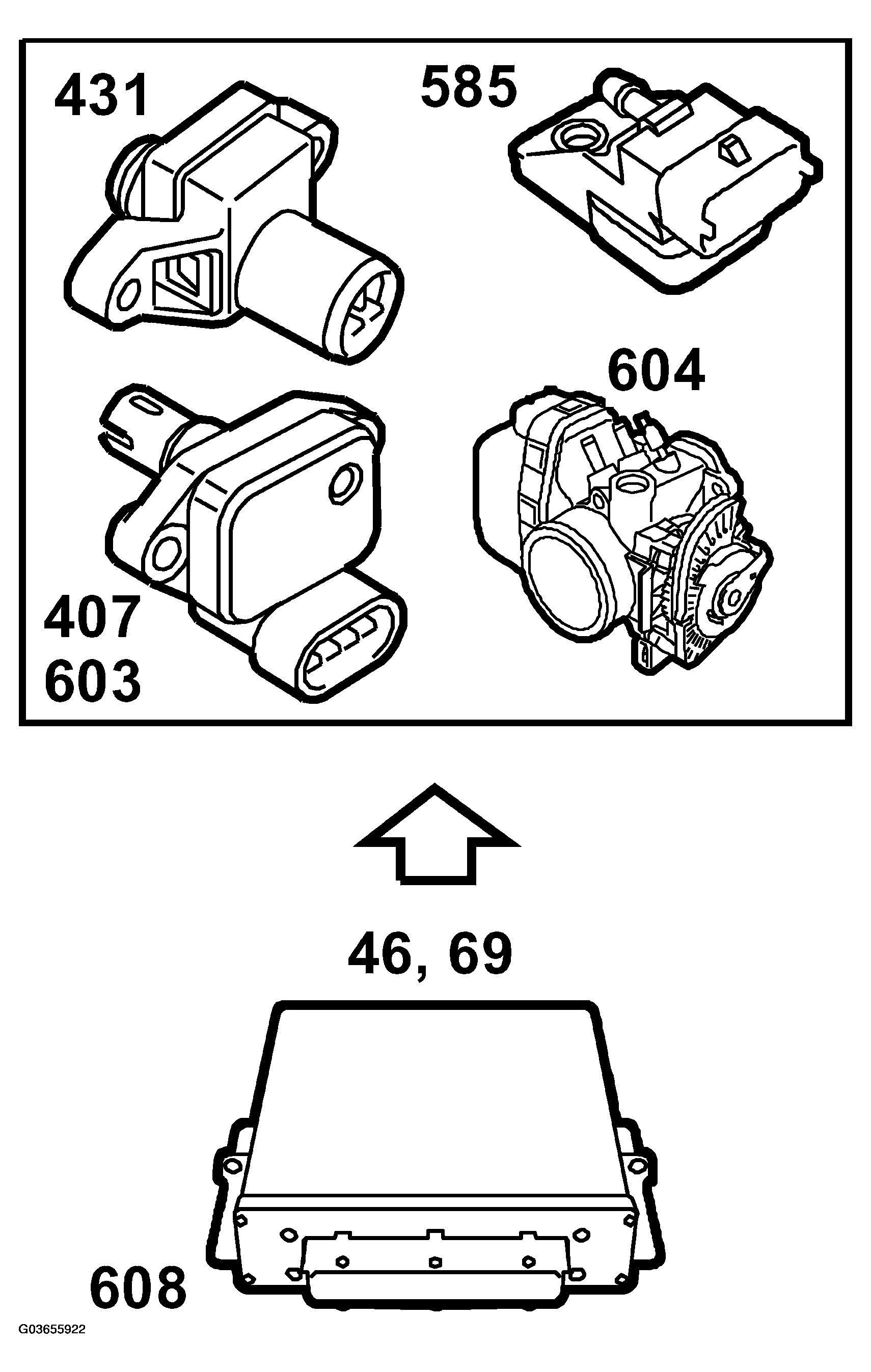

Fig 1: Communication Diagram (5V Supply)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

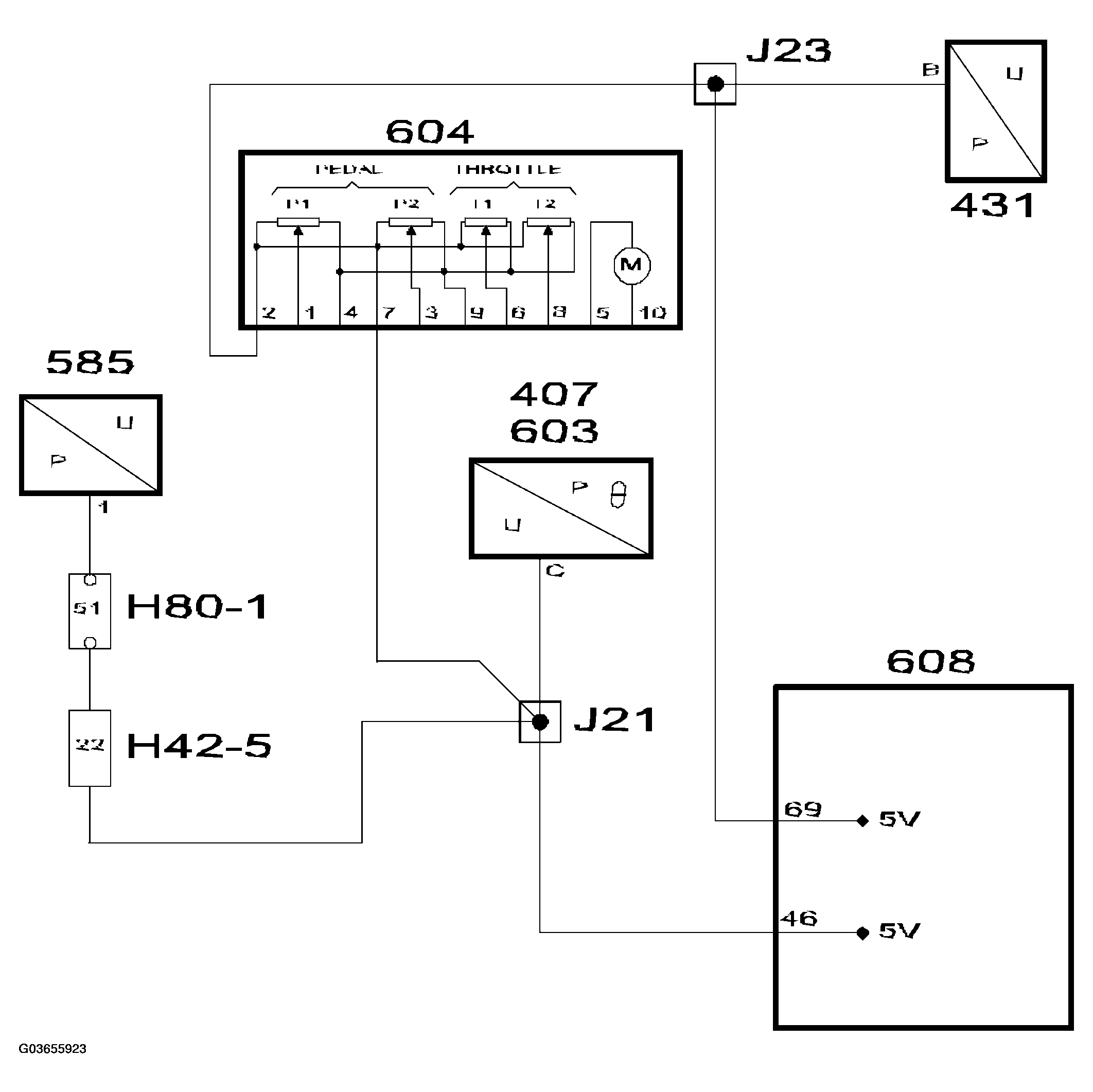

Fig 2: Circuit Diagram (5V Supply)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Manifold absolute pressure sensor
• Charge air absolute pressure sensor
• EVAP pressure sensor
• Pedal position sensors
• Throttle position sensors
