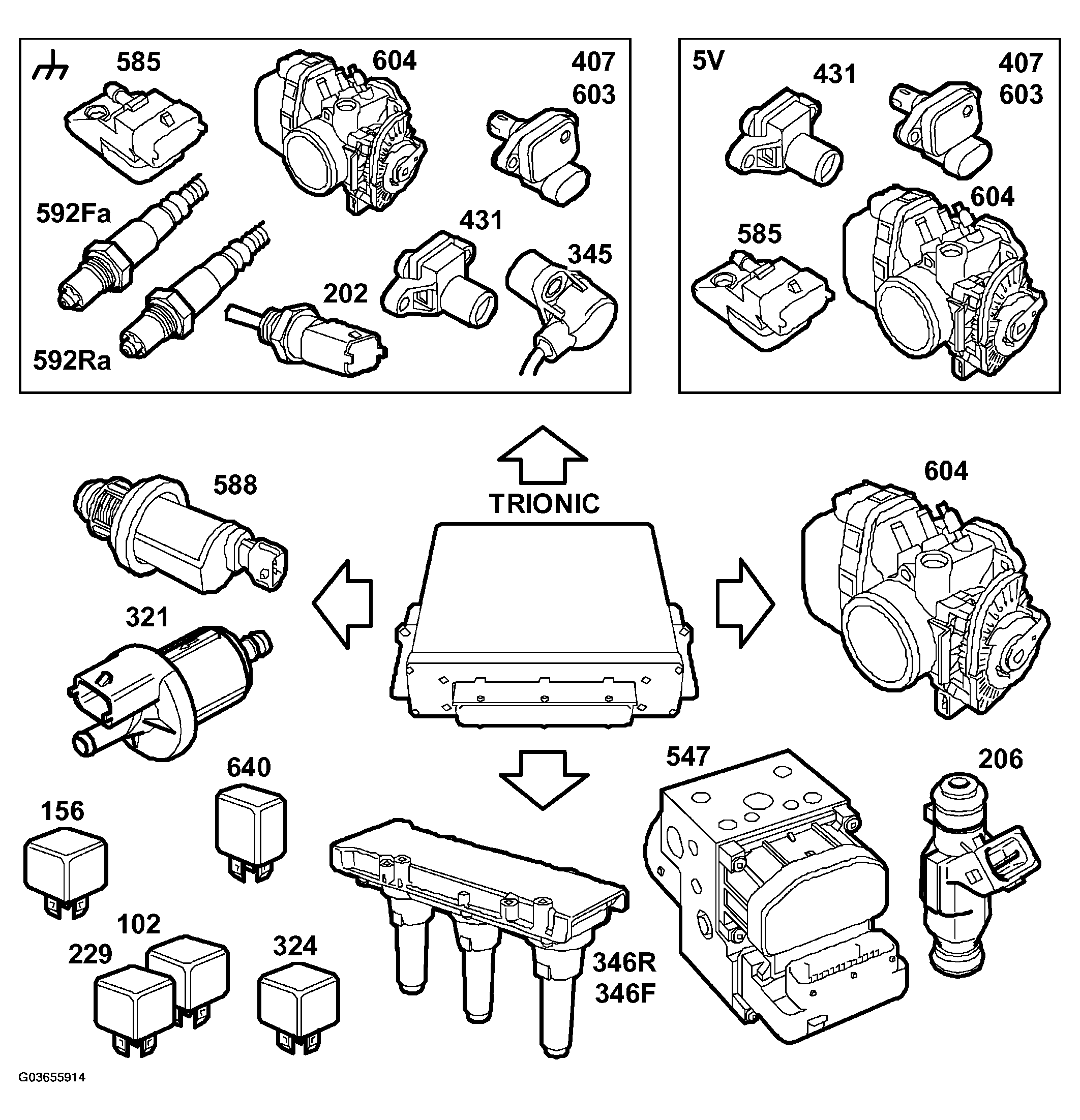

Control module outputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Sensor ground, reference ground, see GROUND
- 5V supply to sensor, see 5V supply
- Main relay and fuel pump relay, see MAIN RELAY /FUEL PUMP RELAY
- A/C relay (156), see A/C relay
- Throttle motor, see THROTTLE CONTROL
- Relay, limp-home solenoid (640), see THROTTLE CONTROL
- EVAP canister purge valve (321), see PURGING
- EVAP canister shut-off valve (588), see PURGING
- Injectors (206), see INJECTORS
- Ignition discharge modules (346 F/R), see IGNITION DISCHARGE MODULES
