Control module power supply: Notes

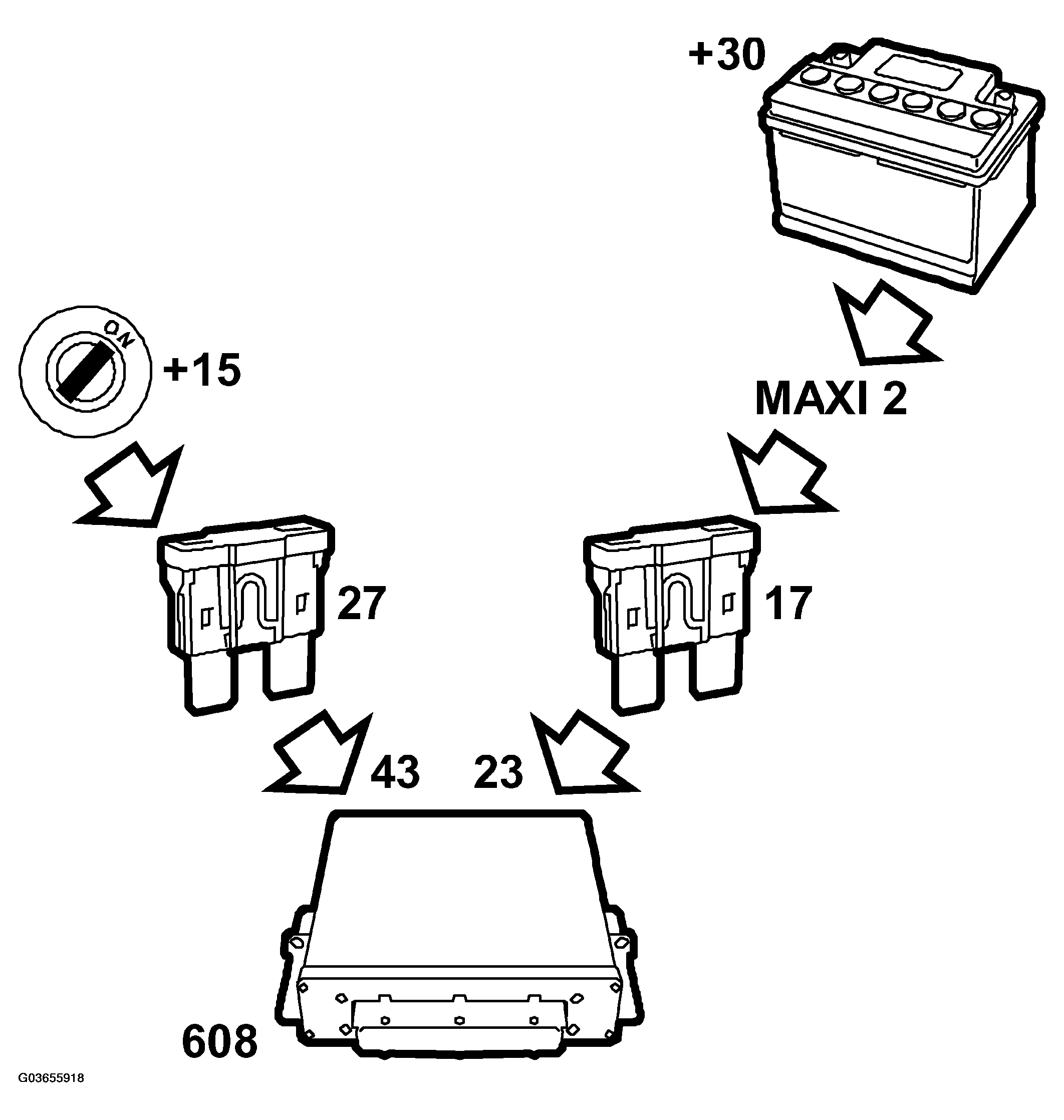

Fig 1: Control Module Power Supply Diagram
G03655918Courtesy of SAAB-SCANIA OF AMERICA, INC.

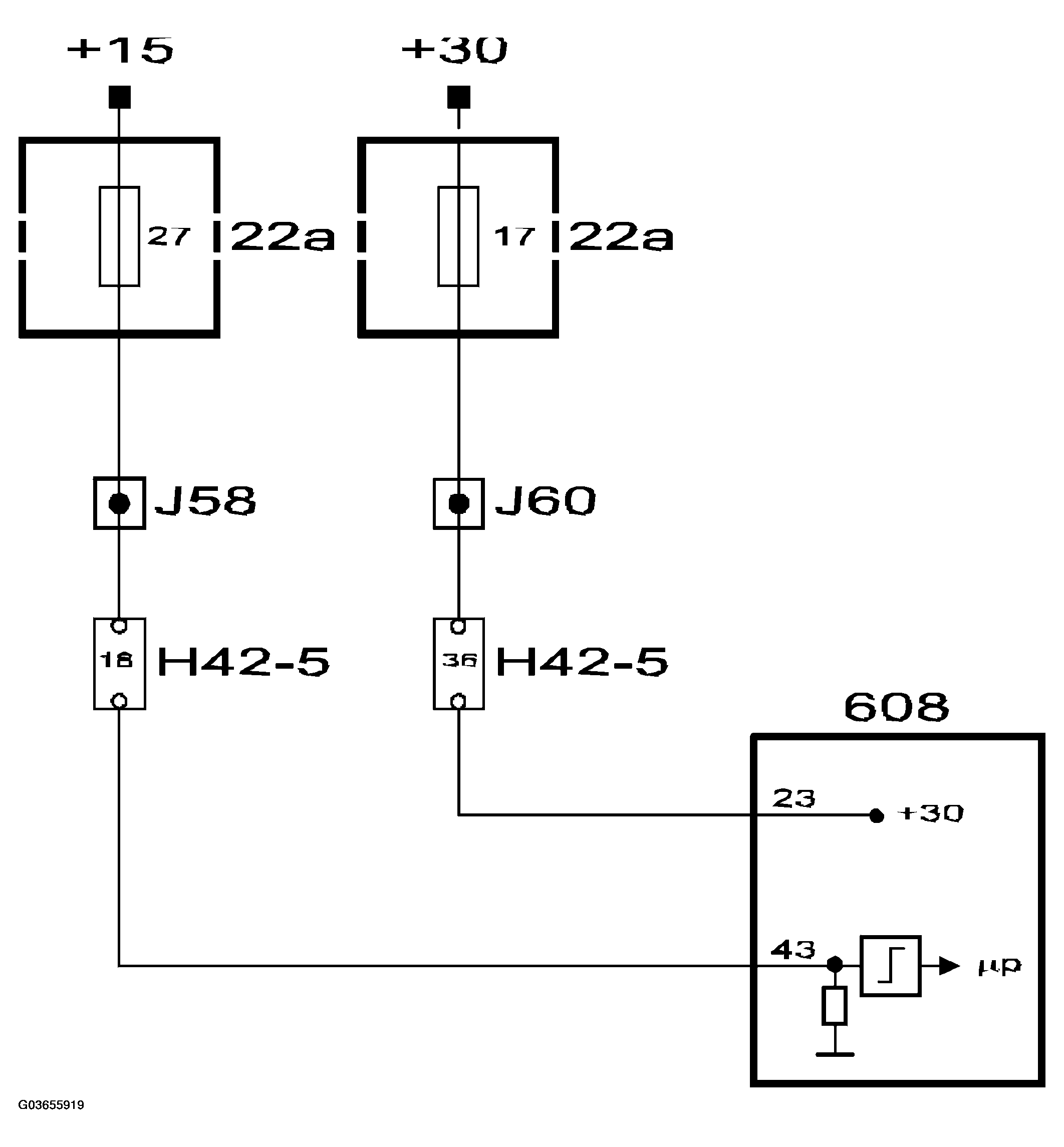

Fig 2: Circuit Diagram - Control Module
G03655919Courtesy of SAAB-SCANIA OF AMERICA, INC.
