Coolant temperature sensor: Notes
The temperature sensor is located on the left-hand end of the cylinder head and is in contact with the engine coolant. The sensor is NTC type.

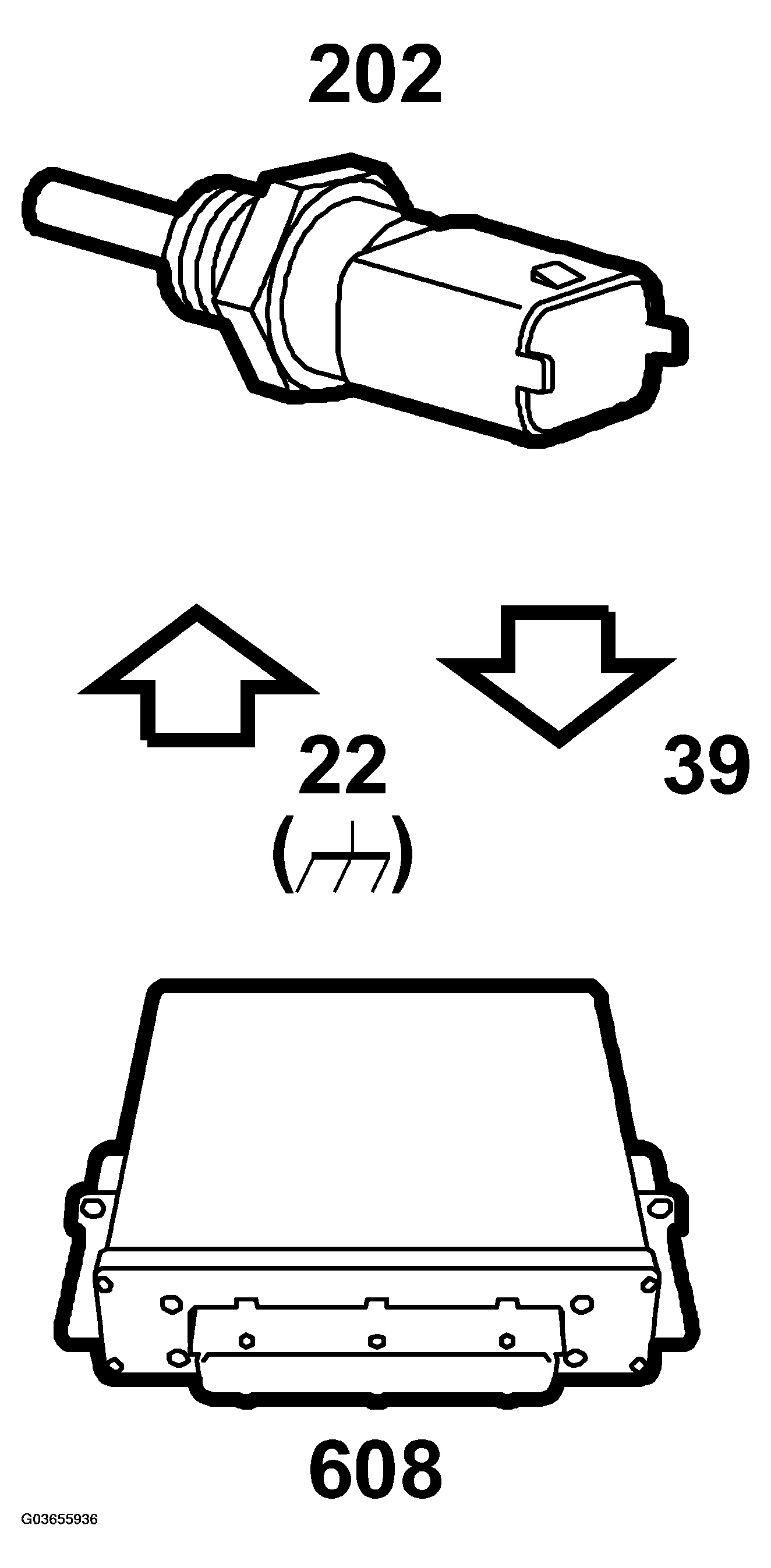

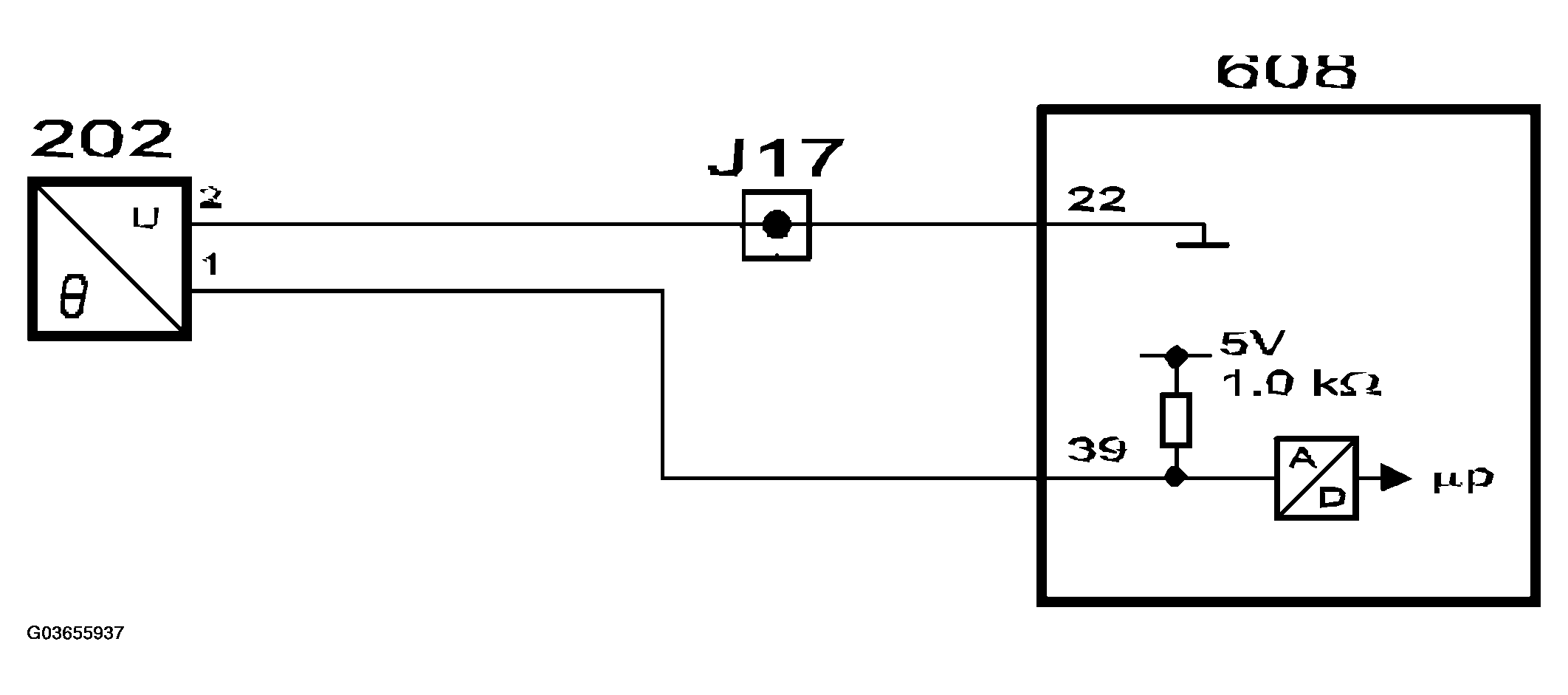

The control module measures the coolant temperature by supplying the sensor with 5 V from pin 39 via an integral 1.0 kohm resistor. The sensor is grounded via control module pin 22. The voltage across the resistor in the control module is proportional to the temperature of the coolant.
Engine coolant temperature is used to:
- calculate the injection duration for pre-injection
- calculate the injection duration while the starter motor is cranking
- calculate after-start enrichment.
- determine when closed loop should be engaged
- correct idling speed.
