Ignition discharge modules: Notes

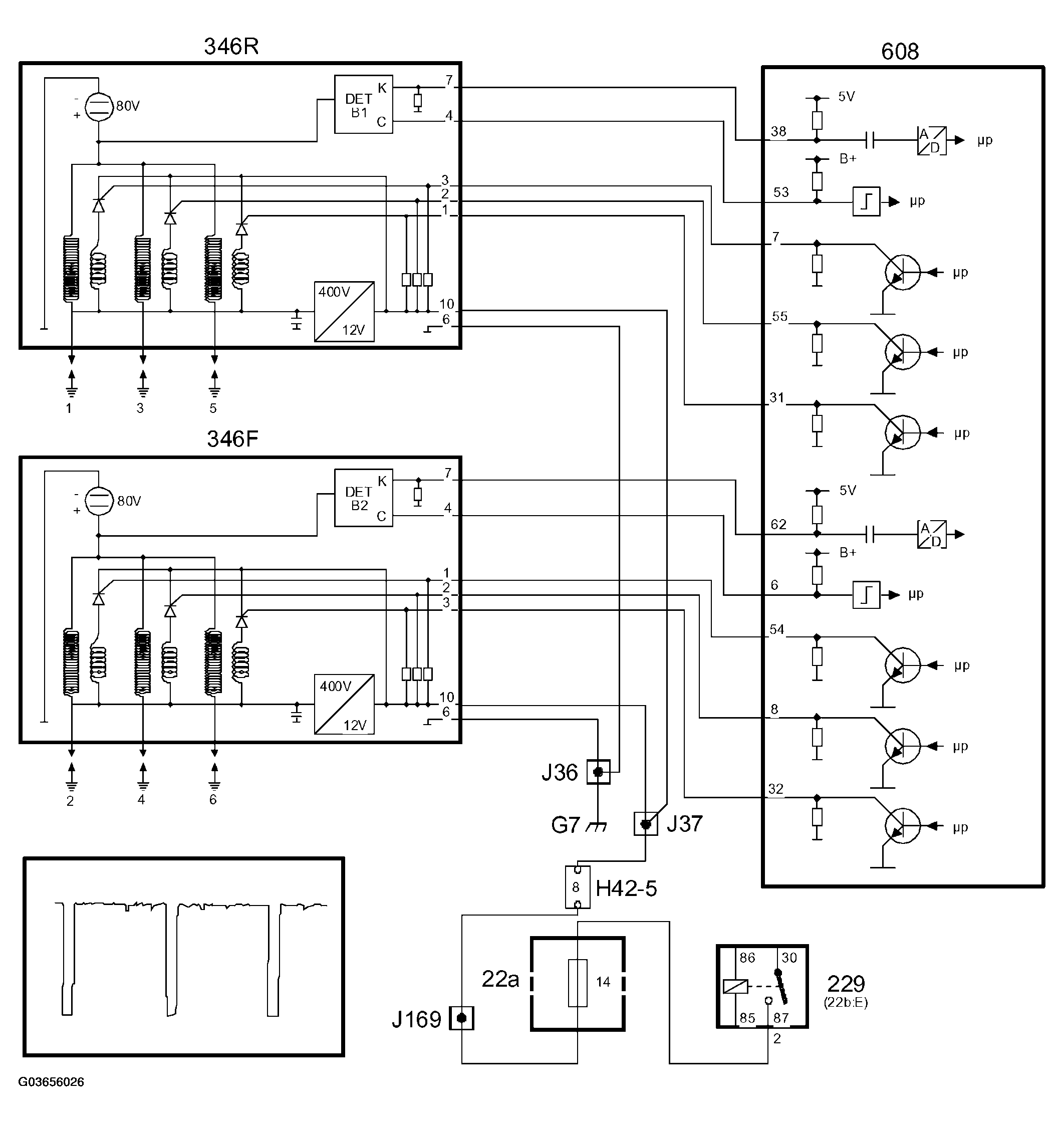

Fig 1: Circuit Diagram - Ignition Discharge Modules (Ignition)
G03656026Courtesy of SAAB-SCANIA OF AMERICA, INC.
