Mass air flow sensor: Notes
The mass air flow sensor contains two parallel connected PTC resistors (RH) that are positioned in the airflow and are electrically heated to 220°C above the air temperature.
The air temperature is measured by means of a special PTC resistor (RS).
As the air flow increases, a higher voltage is required to maintain a constant temperature difference. The voltage required is converted into ground pulses, the frequency of which increases with the mass air flow.

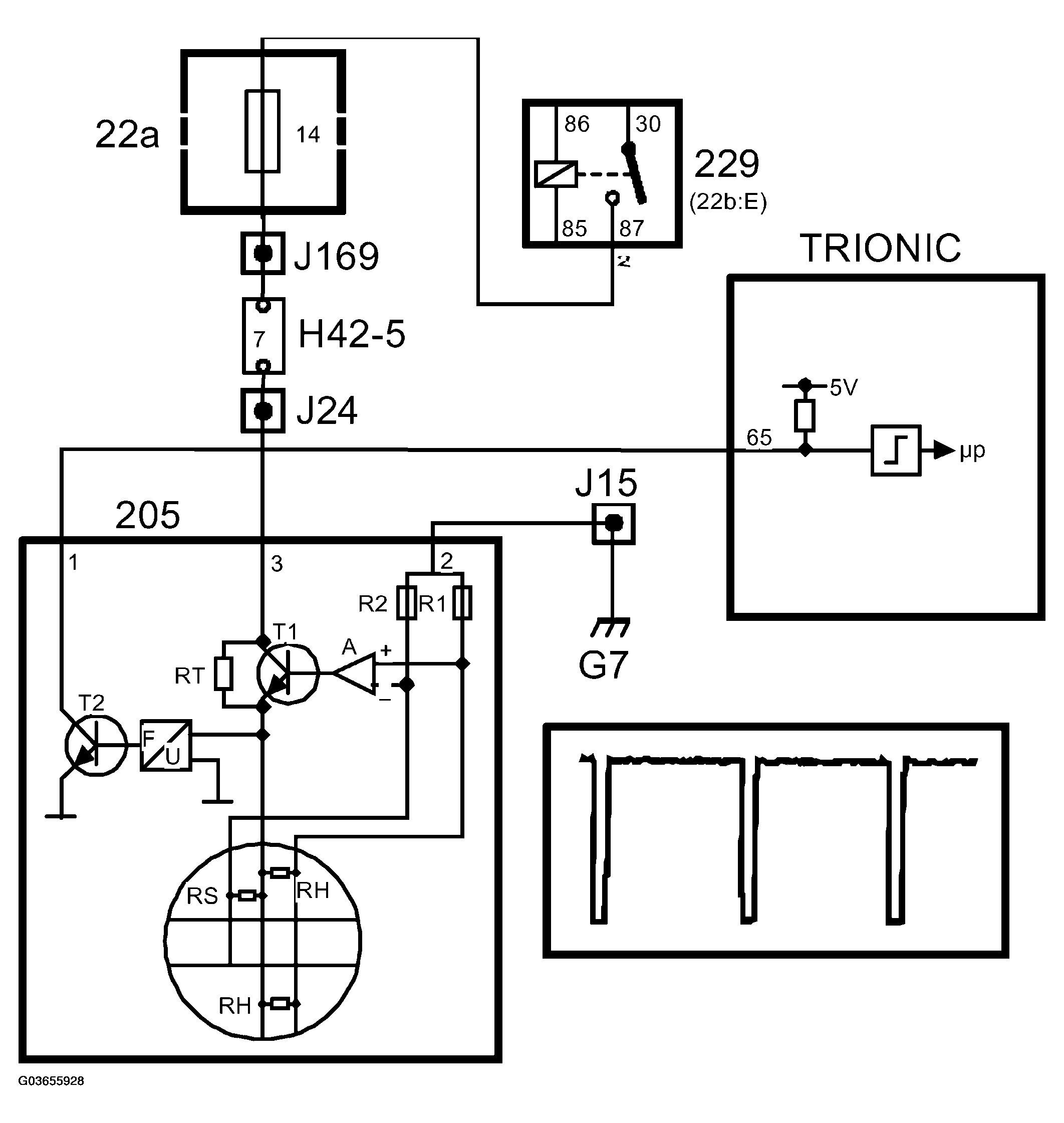

The mass air flow sensor is grounded at grounding point G7 and supplied with current from the main relay. Note that input pin 65 of the control module has a pull-up to 5 V and that the mass air flow sensor pulses to ground.
When the ignition switch is turned "ON", the main relay operates and B+ is applied to pin 3 of the mass air flow sensor. A current passes RT and the low-ohmic thermal resistors RH via R1 to ground. Since the RH resistors are cold, their resistance is low. The amplifier then sends a strong base current to transistor T1, whereupon RH quickly heat up. As RH heat up, their resistance increases and a state of equilibrium is achieved.
If RH is cooled by an airstream, its temperature will immediately be restored by an increase in current through transistor T1. The voltage required to maintain a constant resistance in RH is supplied to a frequency converter, which in turn controls transistor T2. T2 grounds the control module input with a frequency corresponding to the air mass flow. The ground pulses have a duration of 40 "MU"s.
The temperature sensor resistor RS is included in a circuit together with R2, the objective of which is to correct amplifier A so that the temperature of RH is always 220 °C above the air temperature.

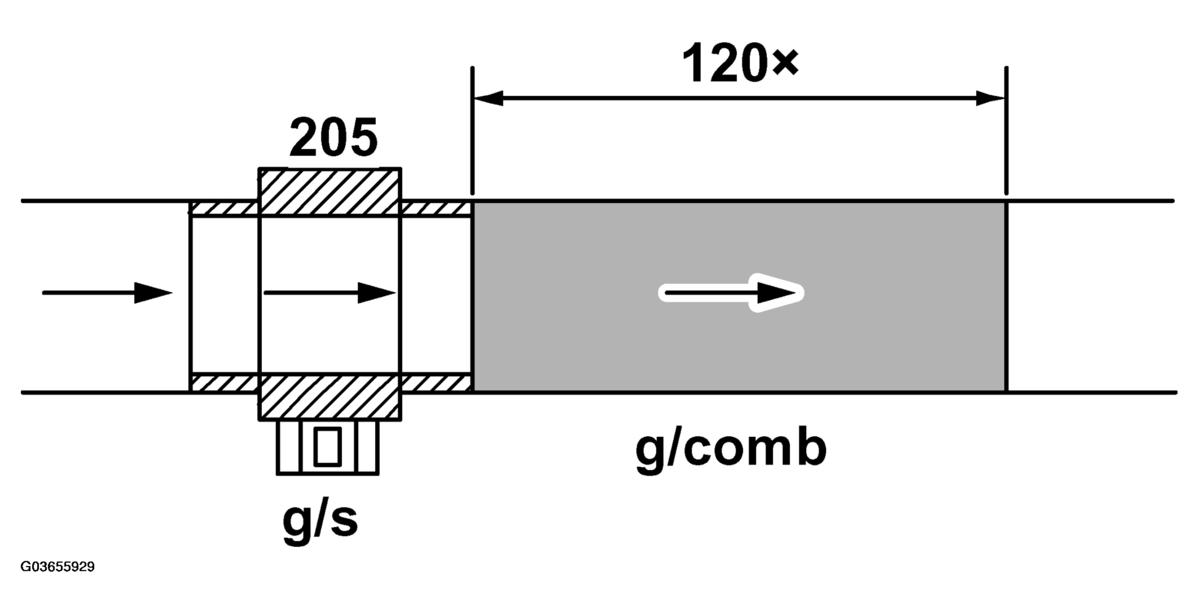

The control module coverts the frequency to grams per second and then, assisted by the value from the crankshaft position sensor, to milligrams air per combustion. The unit is written mg/c (milligrams per combustion) and constitutes the principal value for the fuel injection. Normally, 1 mg fuel is consumed at 14.7 mg/c. The value is also a good indication of the engine torque or load.
