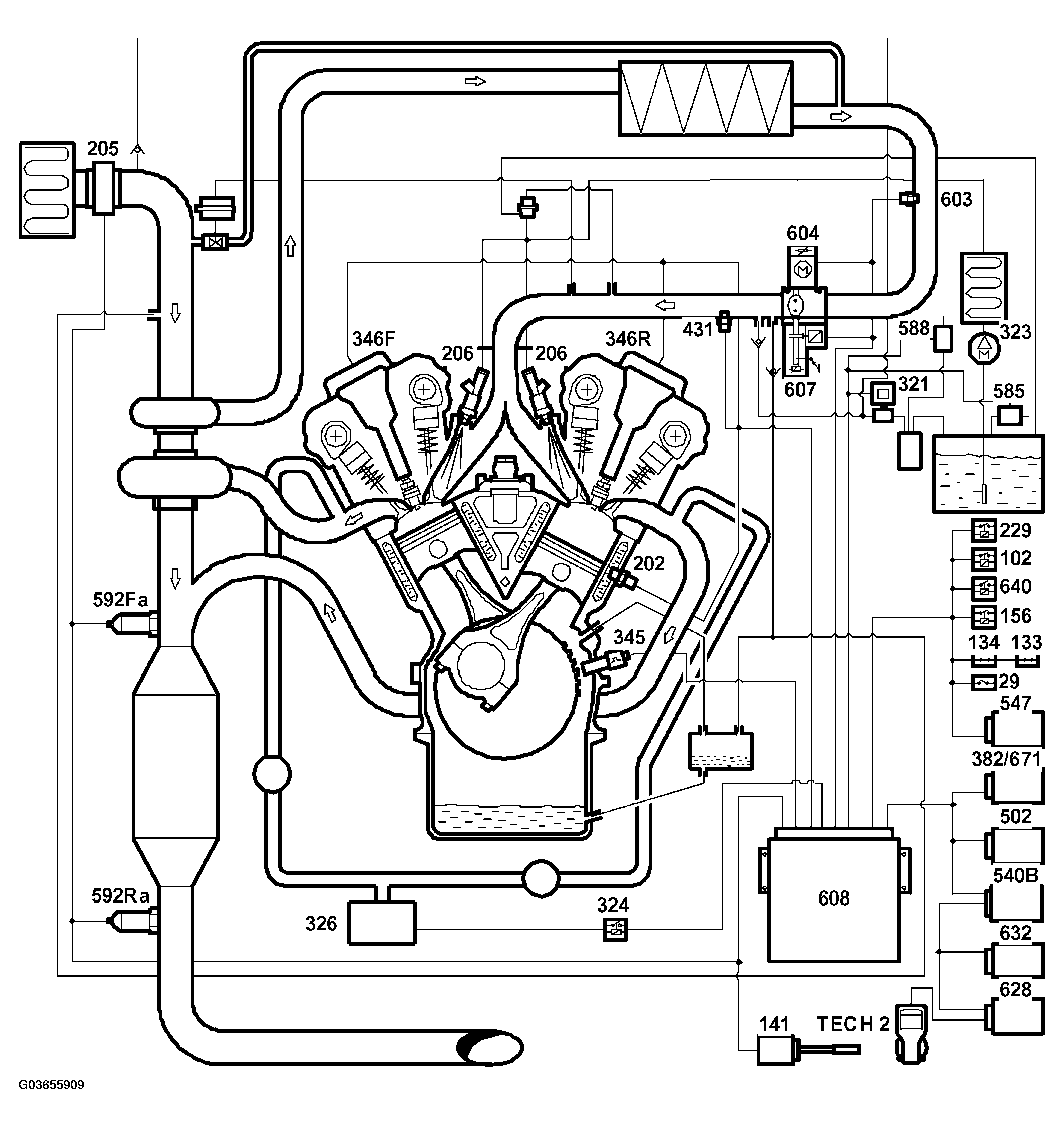

System overview
- Control module (608), see CONTROL MODULE
- Crankshaft position sensor (345), see CRANKSHAFT POSITION SENSOR
- Mass air flow sensor (205), see MASS AIR FLOW SENSOR
- Manifold absolute pressure sensor (431), see MANIFOLD ABSOLUTE PRESSURE SENSOR
- Charge air absolute pressure sensor (603), see CHARGE AIR ABSOLUTE PRESSURE SENSOR
- Intake air temperature sensor (407), see INTAKE AIR TEMPERATURE SENSOR
- Engine coolant temperature sensor (202), see TEMPERATURE SENSOR, ENGINE COOLANT
- Throttle body (604), see THROTTLE CONTROL /PEDAL POSITION SENSOR
- Limp-home solenoid (607), see THROTTLE CONTROL /PEDAL POSITION SENSOR
- Oxygen sensor 1 (592Fa), see CLOSED LOOP
- Oxygen sensor 2 (592Ra), see CLOSED LOOP
- EVAP canister purge valve (321), see PURGING
- EVAP shut-off control valve (588), see PURGING
- EVAP pressure sensor (585), see PURGING
- Injectors (206), see INJECTORS
- Ignition discharge modules (346 F/R), see IGNITION DISCHARGE MODULES
- Switch, cruise control (141), see CRUISE CONTROL
Clutch pedal switch (133), see CRUISE CONTROL
Brake pedal switch (134), see CRUISE CONTROL
Brake light switch (29), see CRUISE CONTROL
- Main relay (229), see MAIN RELAY
Fuel pump relay (102), see FUEL PUMP RELAY
Relay, limp-home solenoid (640), see THROTTLE CONTROL
SAI relay (324), see SECONDARY AIR INJECTION PUMP RELAY
A/C relay (156), see A/C relay
(A/C relay is mounted on the main relay board under the bonnet.)
- ABS control module (547)/TC/ABS control module (382)/ESP control module (671)
- TCM control module (502)
- Main instrument unit (540B)
- TWICE control module (632)
- DICE control module (628)
- Secondary air injection pump, SAI (326)
