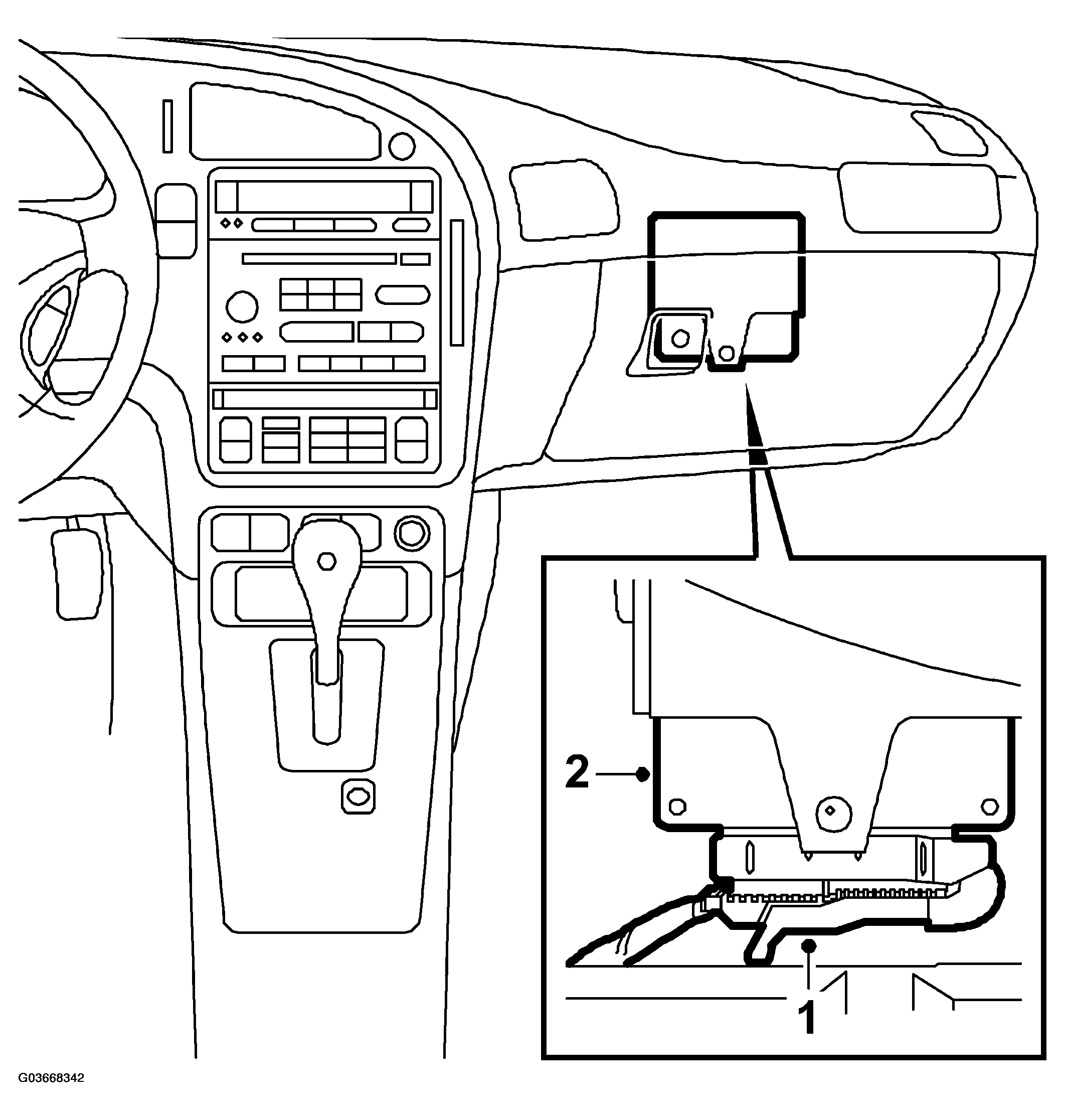

Changing control module, TCM: Fitting
- Plug the connector into the control module.
- Press the control module home so that the catches engage with it.
- Refit the lower dashboard section by the passenger seat, see CLIMATE CONTROL UNIT .
- If a new control module has been fitted, perform SERVICE PROGRAMMING (SPS) OF TCM .
- If a new control module has been fitted it must be adapted, see ADAPTATION, RESETTING
