Sensor, input speed

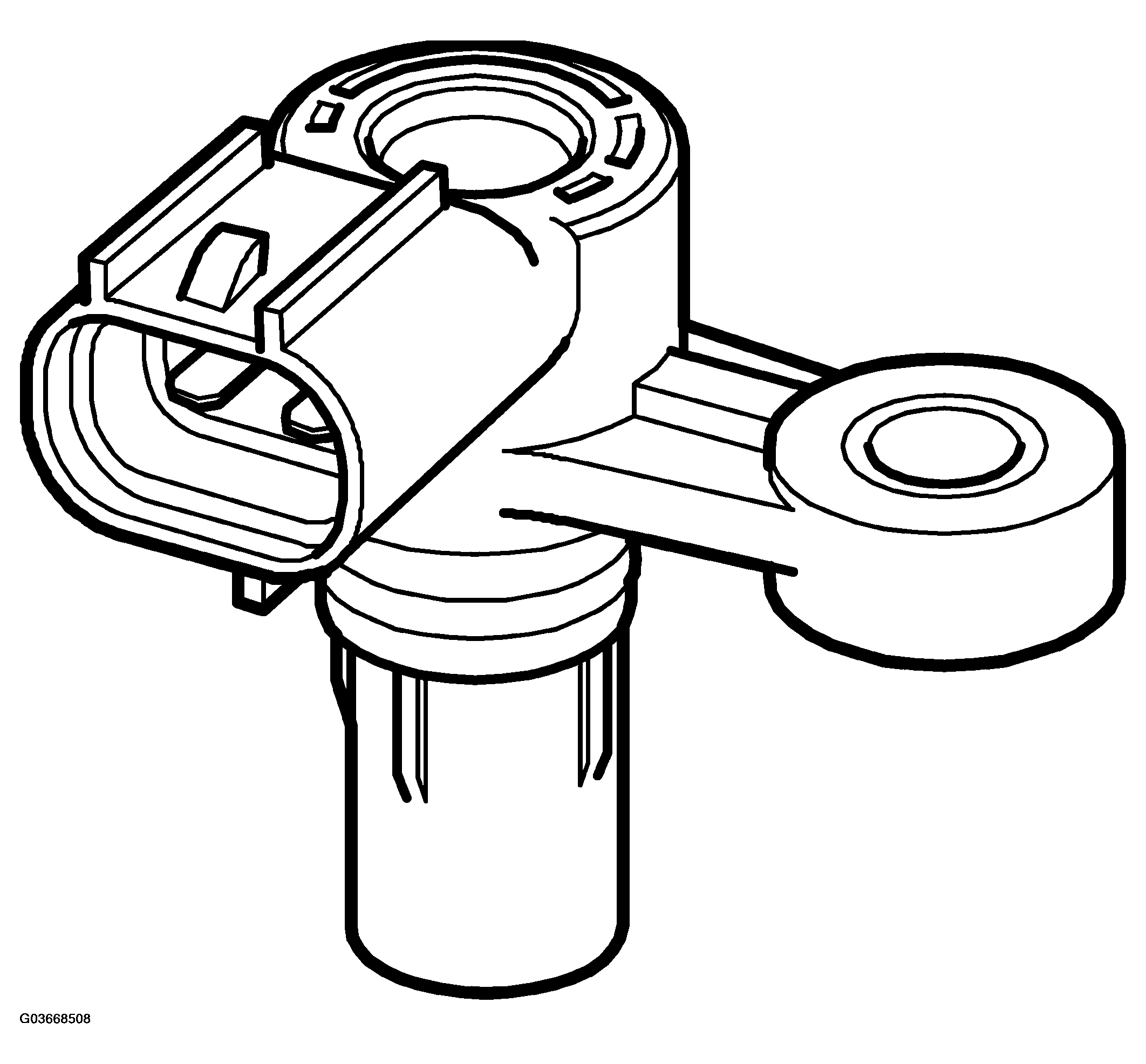

Fig 1: Identifying Sensor, Input Speed
G03668508Courtesy of SAAB-SCANIA OF AMERICA, INC.
INPUT SPEED SPECIFICATION

Location   On the transmission casing
Type   Hall sensor
Toothed wheel number of teeth 12
