Power supply: Notes

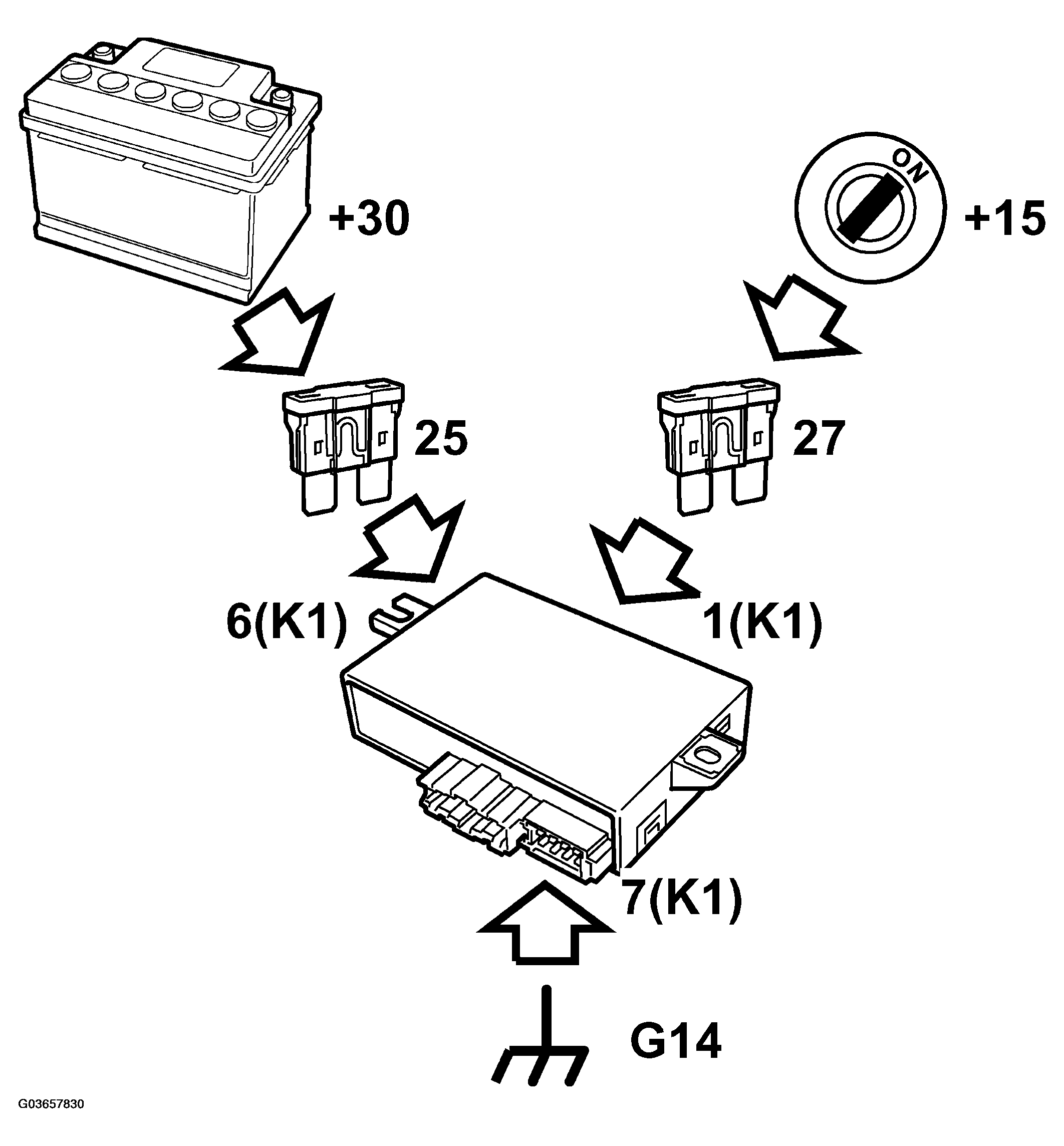

Fig 1: Identifying Power Supply
G03657830Courtesy of SAAB-SCANIA OF AMERICA, INC.

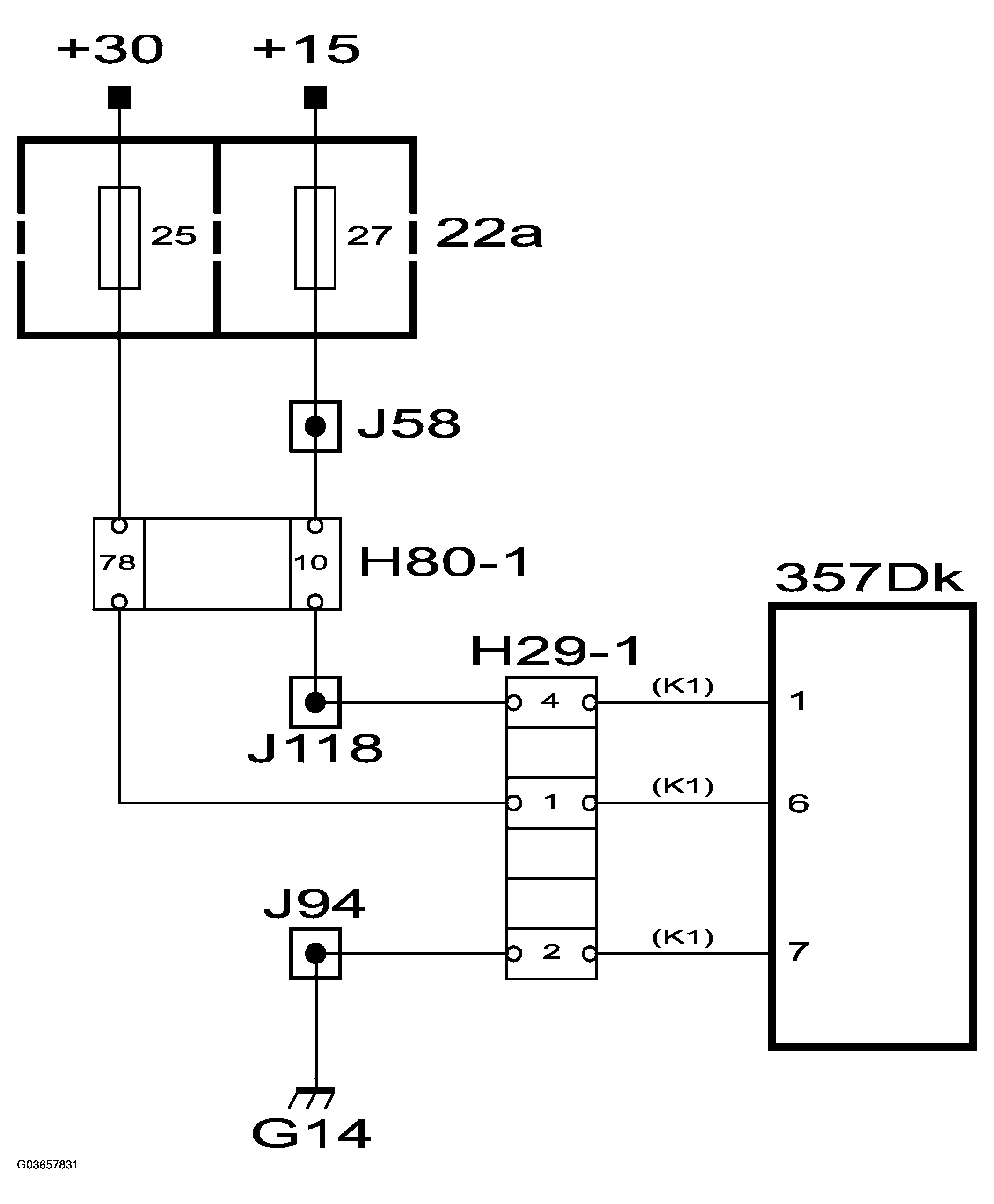

Fig 2: Power Supply
G03657831Courtesy of SAAB-SCANIA OF AMERICA, INC.
