Tightening torques

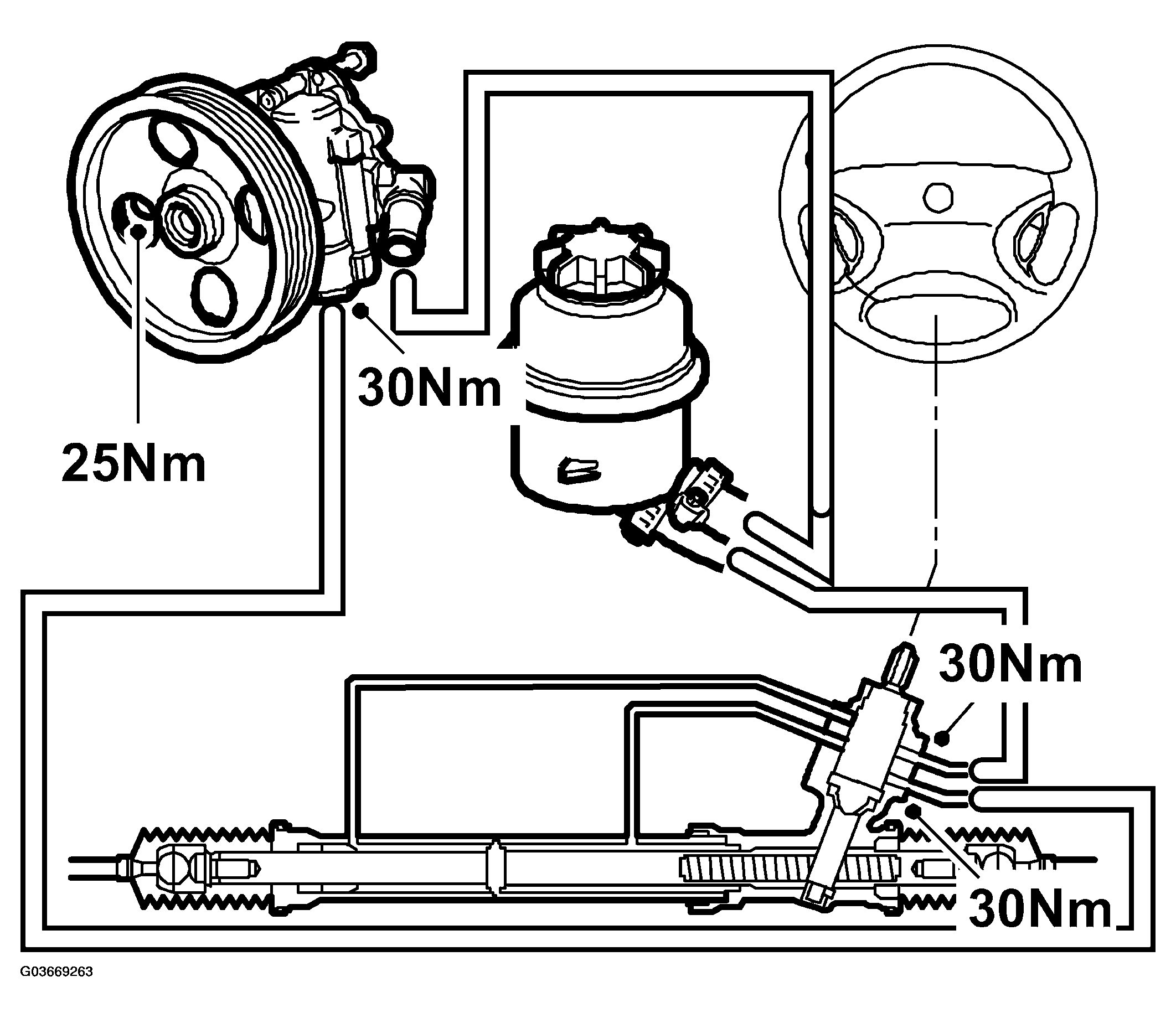

Fig 1: Identifying Power Steering Pump Tightening Torques

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TOOLS SPECIFICATION

Power steering pump	Nm (lbf ft)	25 (20)
Delivery pipe, power steering pump	Nm (lbf ft)	30 (25)
Delivery pipe, valve body	Nm (lbf ft)	30 (25)
Return pipe, valve body	Nm (lbf ft)	30 (25)
