Comfort function, main components

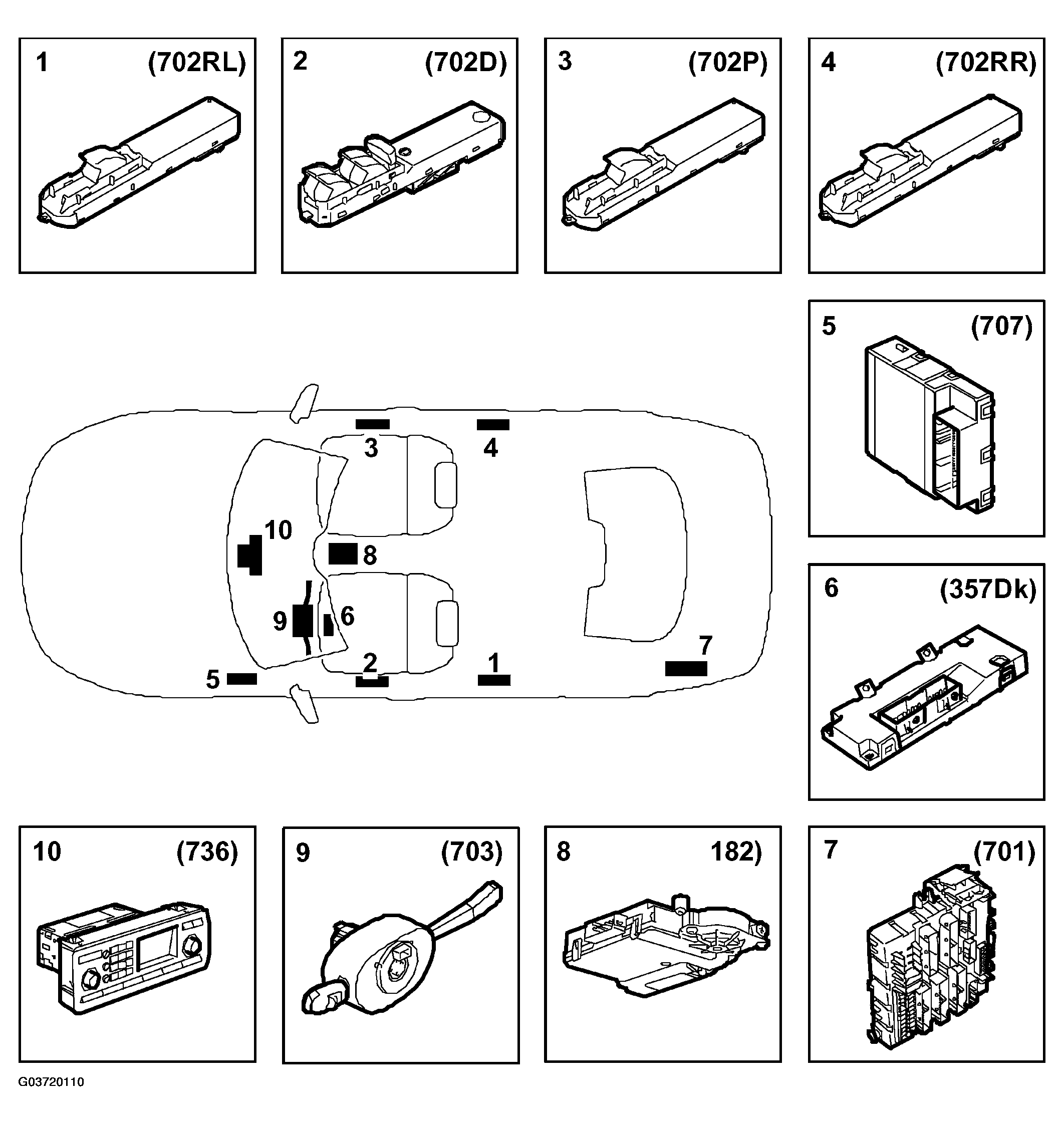

Fig 1: Identifying Comfort Function Main Components

G03720110

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Rear left door module, RLDM (702RL)
Driver's door module, DDM (702D)
Passenger door module, PDM (702P)
Rear right door module, RRDM (702RR)
Control module, BCM (707)
Driver's seat control module, DSM (357Dk)
REC (701)
Sunroof module, SRM (182)
Steering column control module, CIM (703a)
Infotainment control panel, ICM (736)
