To remove

WARNING: The work involved in removing the fuel pipe requires working with the vehicle's fuel system. The following points should therefore be heeded in conjunction with these measures:
  1. Reduce the fuel pressure by removing fuse 2 (Underhood electric center 727, petrol engine) while the engine is running. Turn the ignition key to LOCK once the engine has stopped.

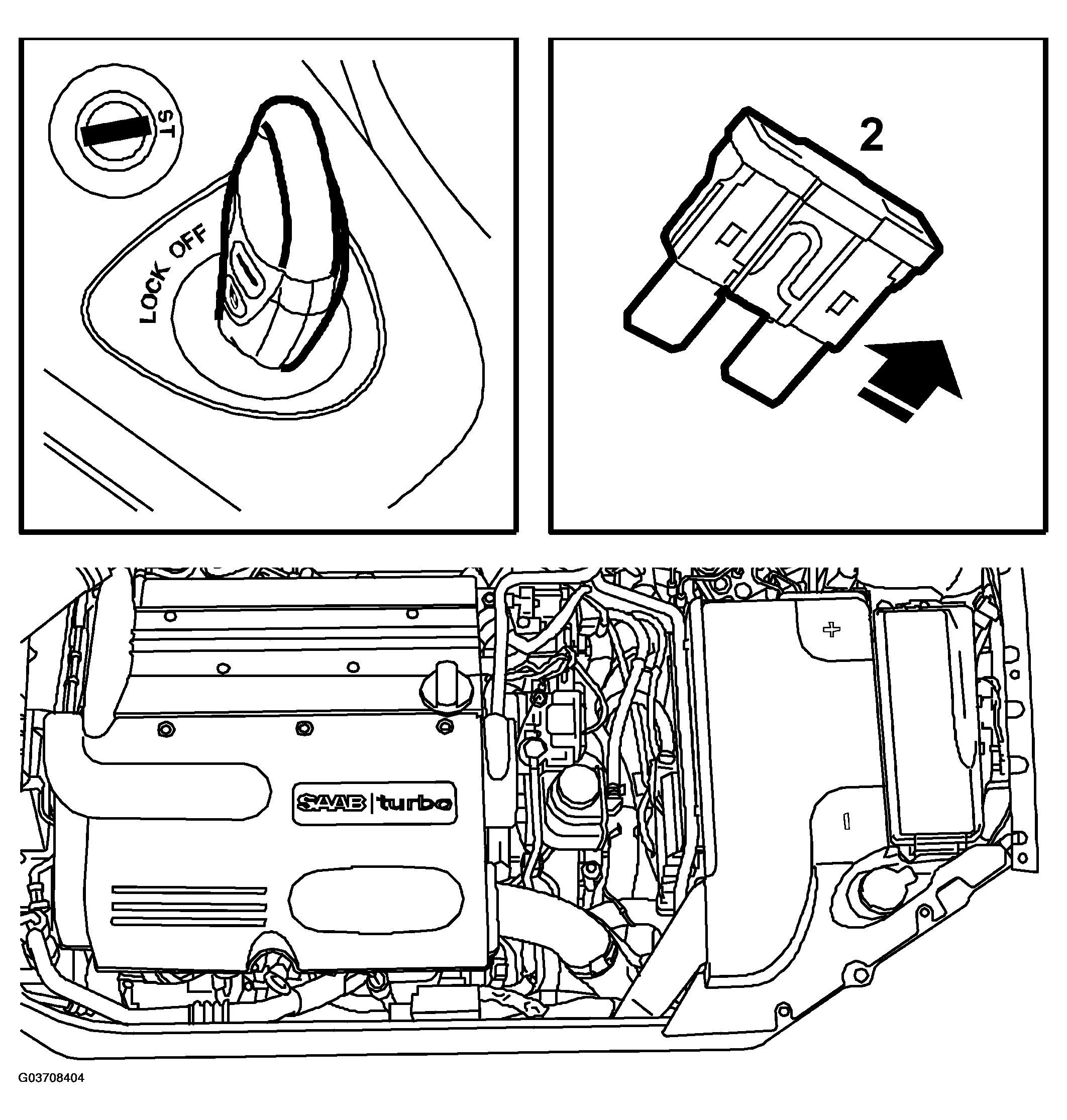

    Fig 1: Illustration For Step 2
    G03708404Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Fit the fuse again.
  3. Remove the upper engine cover.

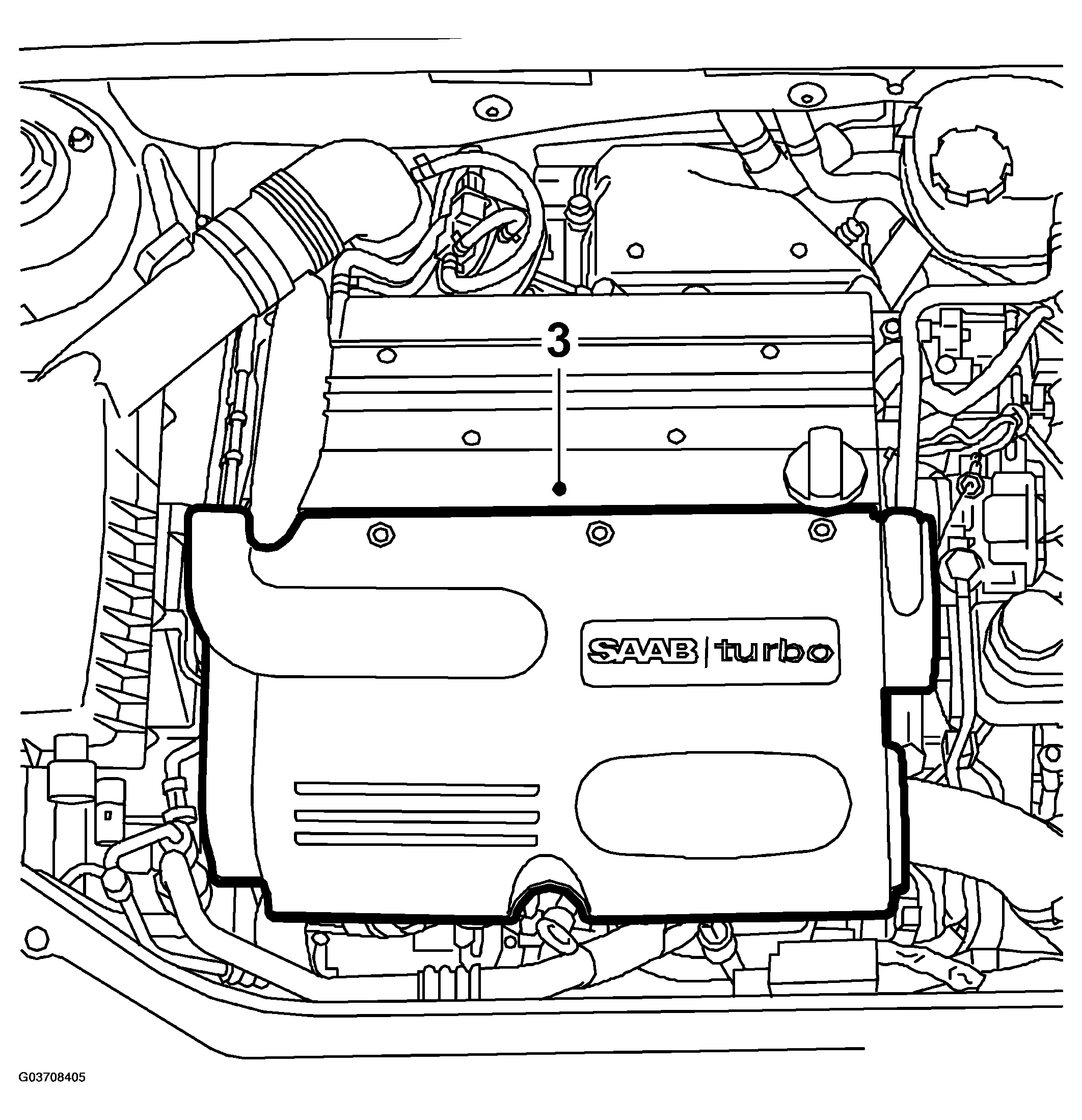

    Fig 2: Illustration For Step 3
    G03708405Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the inlet and return fuel pipes from the fuel rail. Use a support so that the lower connection on the fuel inlet pipe does not come loose. Use absorbent to collect any fuel spill and detach the pipe from its attachments on the camshaft cover.

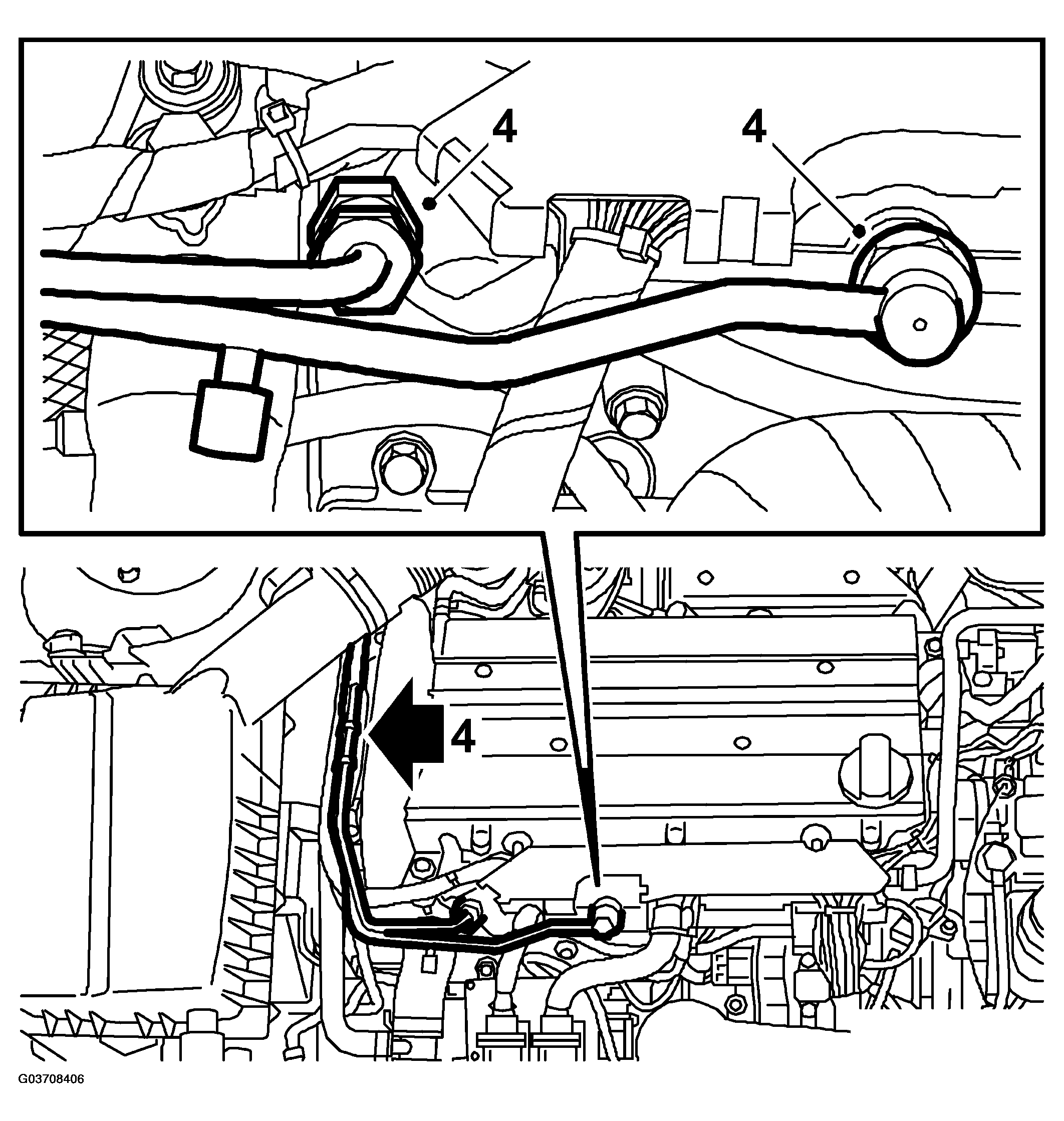

    Fig 3: Illustration For Step 4
    G03708406Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Plug the connections on the pipes and the fuel rail.
  6. Remove the cover over the ignition coils and unplug the ignition coil connectors starting with cylinder 4.

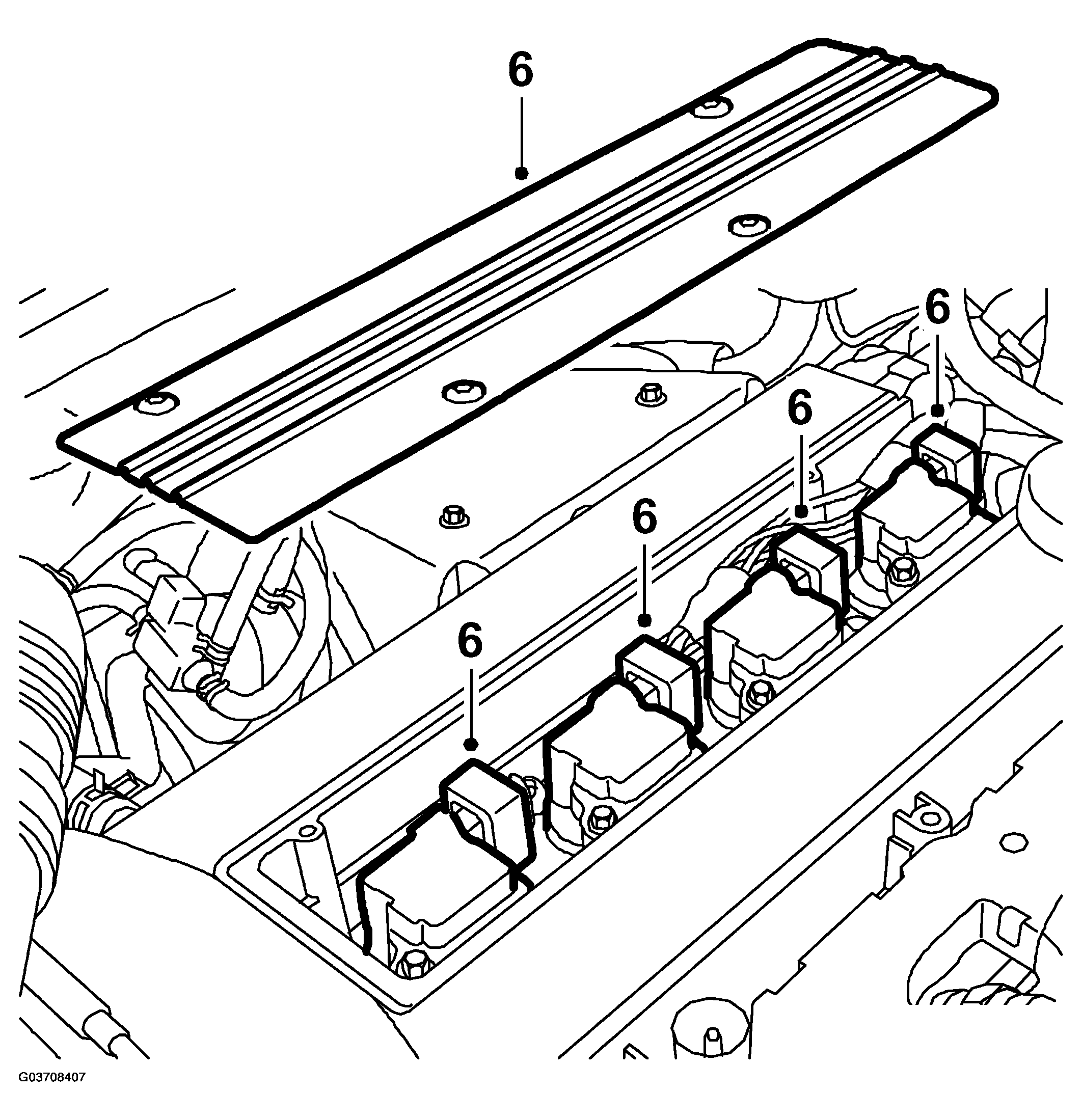

    Fig 4: Illustration For Step 6
    G03708407Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Unplug the connectors to the throttle body and coolant temperature sensor.

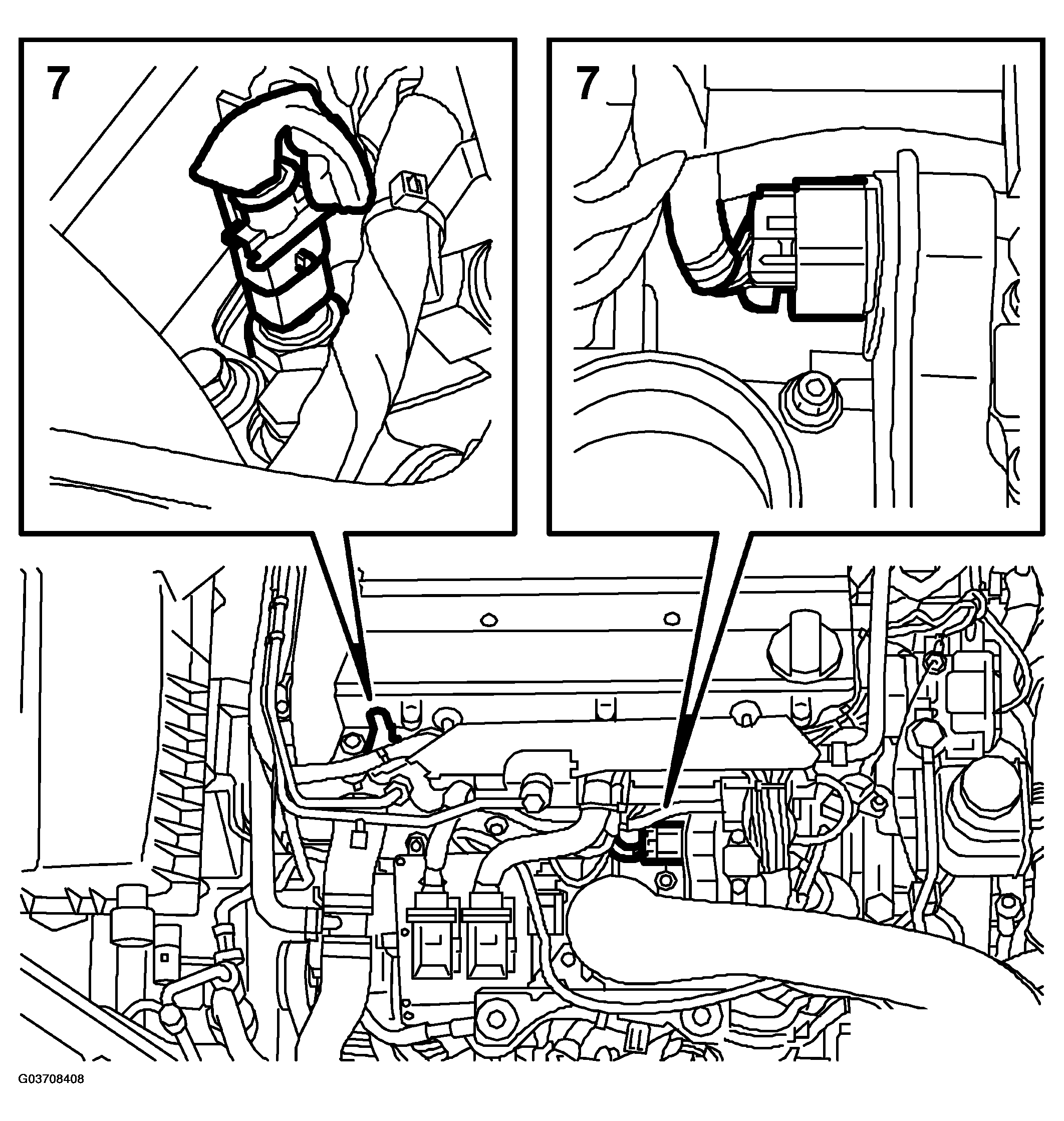

    Fig 5: Illustration For Step 7
    G03708408Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Unplug the connectors to CDM and the oxygen sensors.

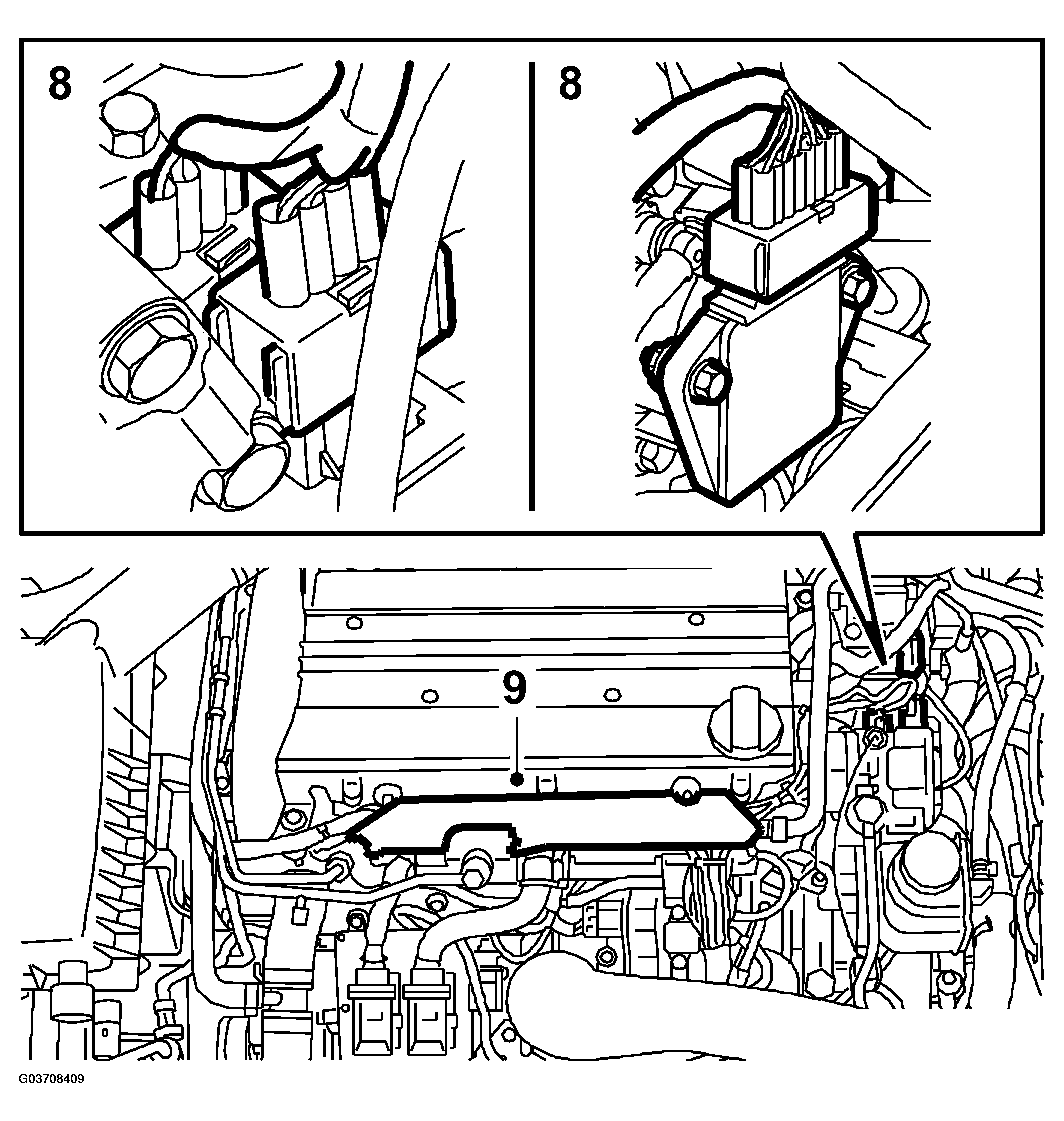

    Fig 6: Illustration For Step 8-9
    G03708409Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Detach the cable duct and bend it forward.
  10. Detach the vacuum hose from the fuel pressure regulator.

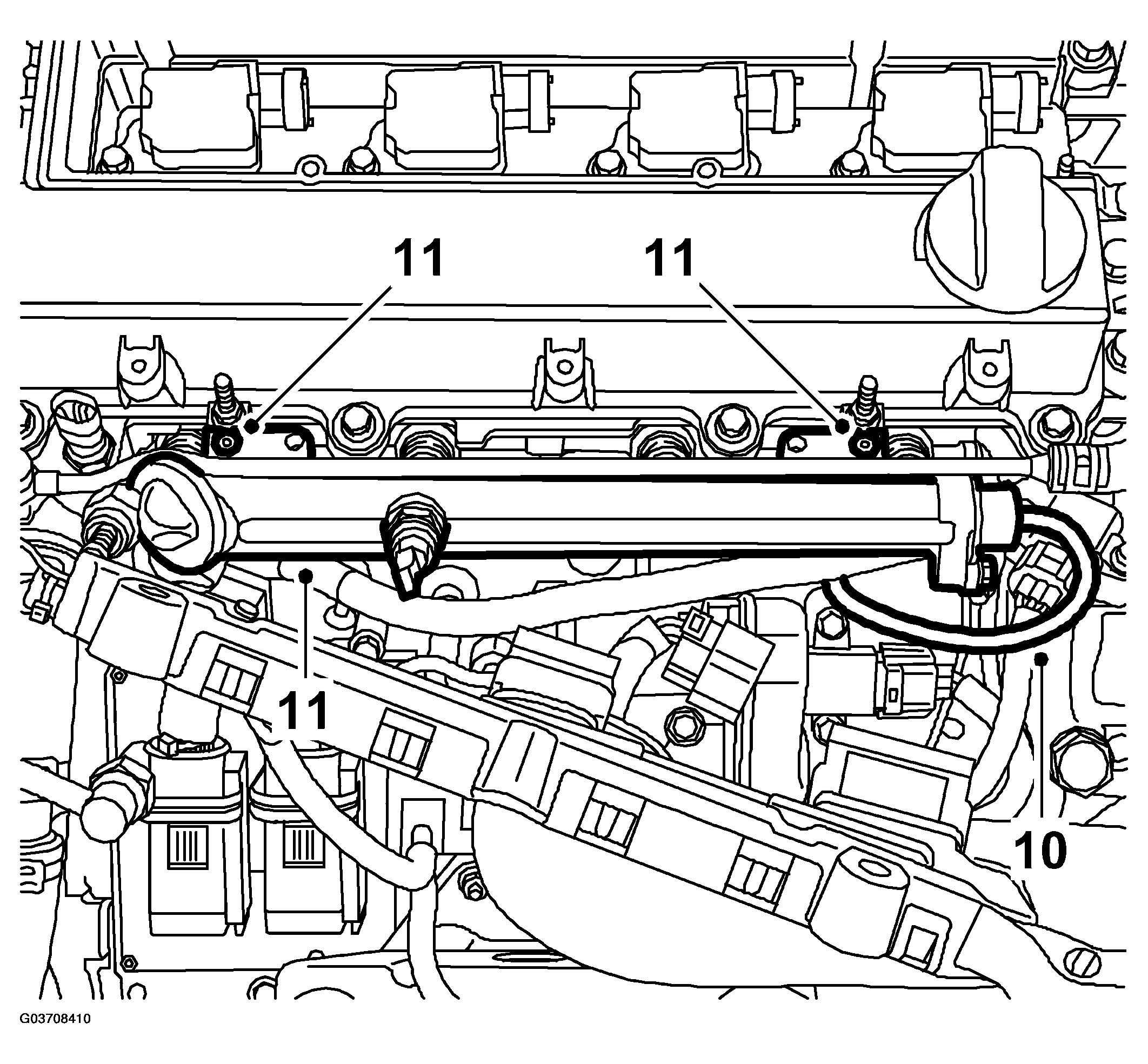

    Fig 7: Illustration For Step 10-11
    G03708410Courtesy of SAAB-SCANIA OF AMERICA, INC.
  11. Remove the bolts, loosen the fuel rail and pull it up together with the injectors.

    Plug the holes in the cylinder head.

  12. Unplug the connector from the injector/s (pull out the blue lock one step and press down the black lock tab to loosen the connector).

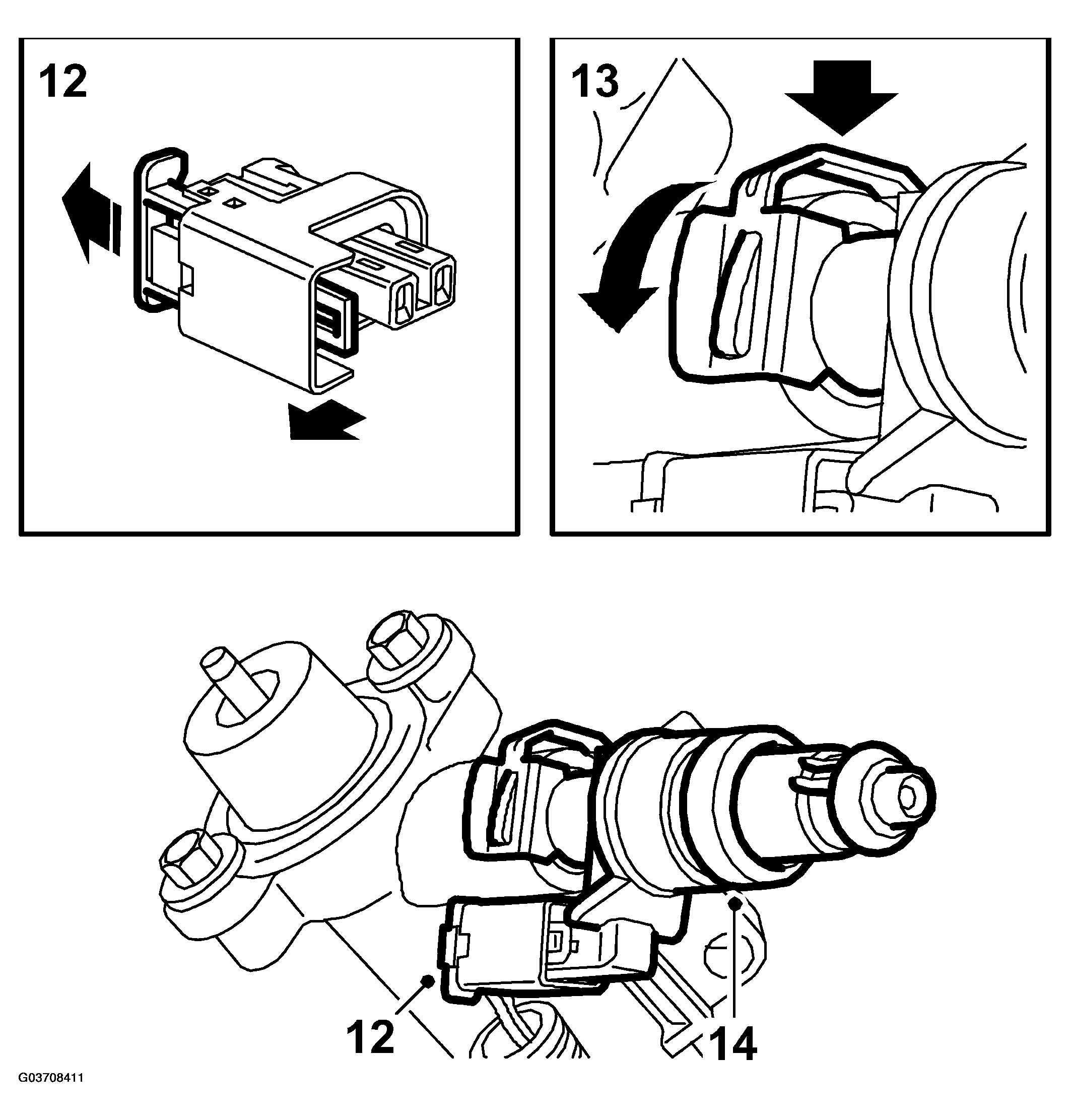

    Fig 8: Illustration For Step 12-14
    G03708411Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Remove the injector attaching clips. Press the clip link to open it and detach with a screwdriver.
  14. Remove the injector/s. Collect any fuel spill.
