Brake light switch (29): Location:

On pedal bracket

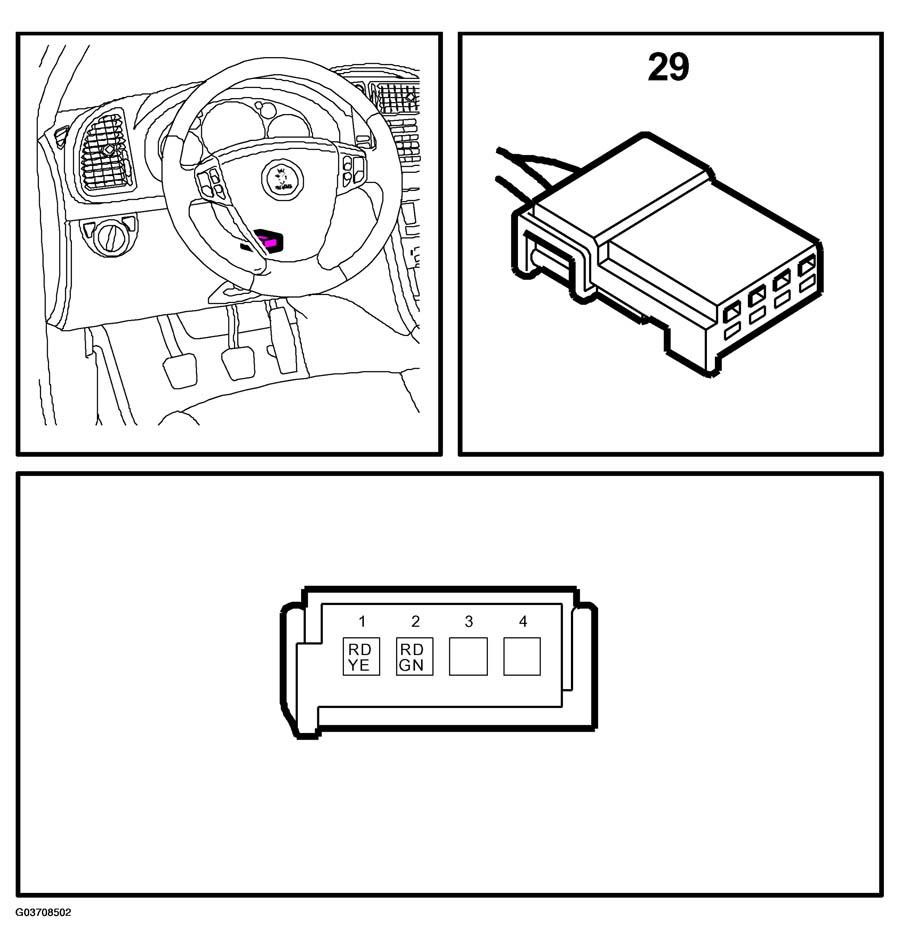

Fig 1: Identifying Brake Light Switch Connector Pinout
G03708502Courtesy of SAAB-SCANIA OF AMERICA, INC.
