Heated oxygen sensor element (271): Simtec

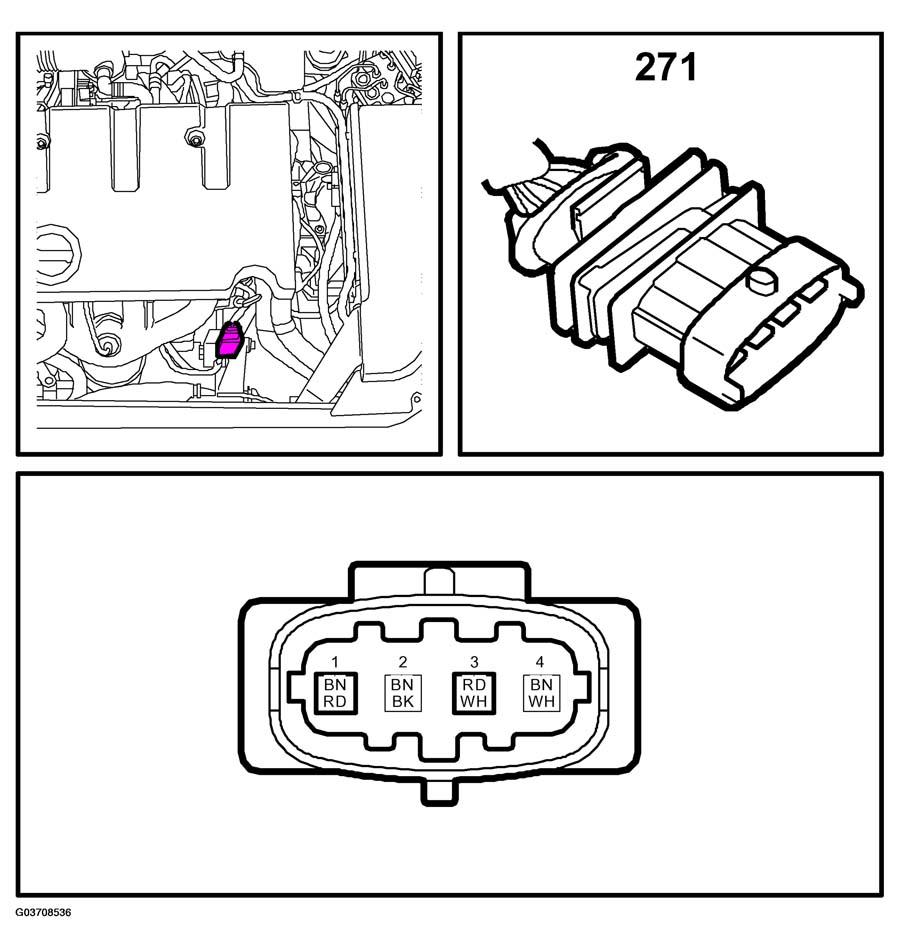

front heated oxygen sensor

Fig 1: Identifying Heated Oxygen Sensor Element Connector Pinout (Simtec) (1 Of 2)
G03708536Courtesy of SAAB-SCANIA OF AMERICA, INC.

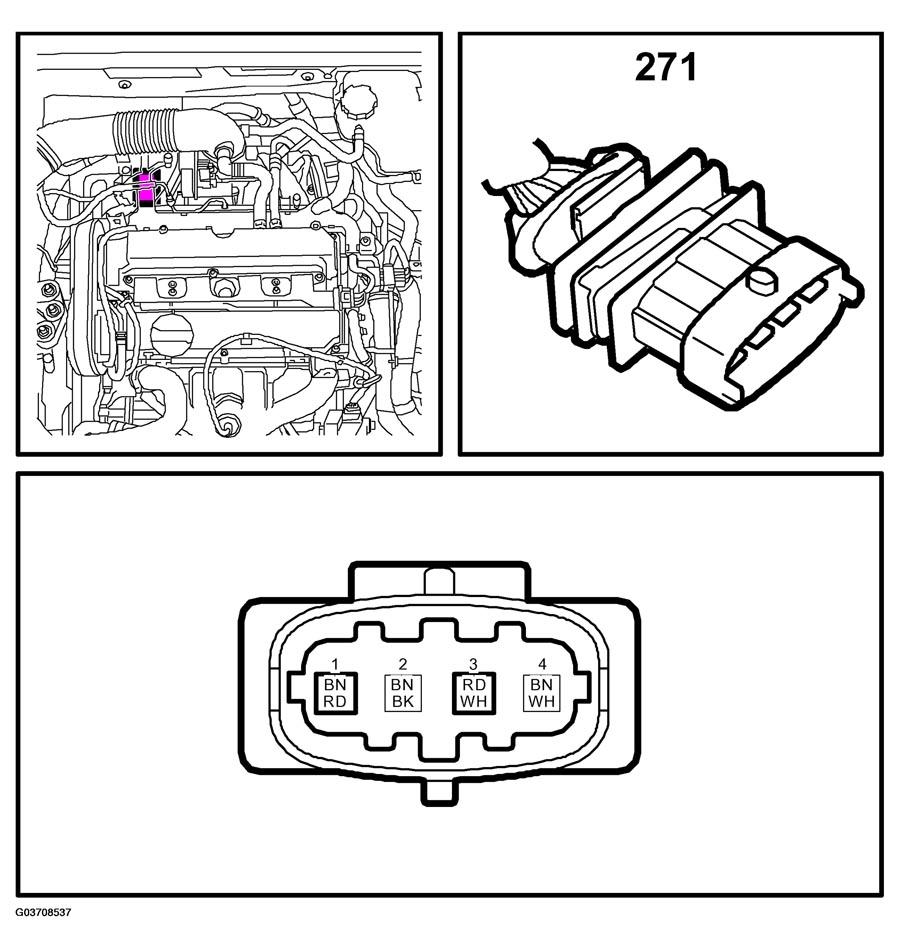

rear heated oxygen sensor

Fig 2: Identifying Heated Oxygen Sensor Element Connector Pinout (Simtec) (2 Of 2)
G03708537Courtesy of SAAB-SCANIA OF AMERICA, INC.
