Coolant temperature sensor (202): Connection
PIN DESCRIPTION
Pin No.
Signal type
Description
1
Signal
The sensor is supplied +5 V via 1.5 kO from ECM pin 8(B).
2
Ground
Sensor's ground. Connected to ECM pin 38(B).

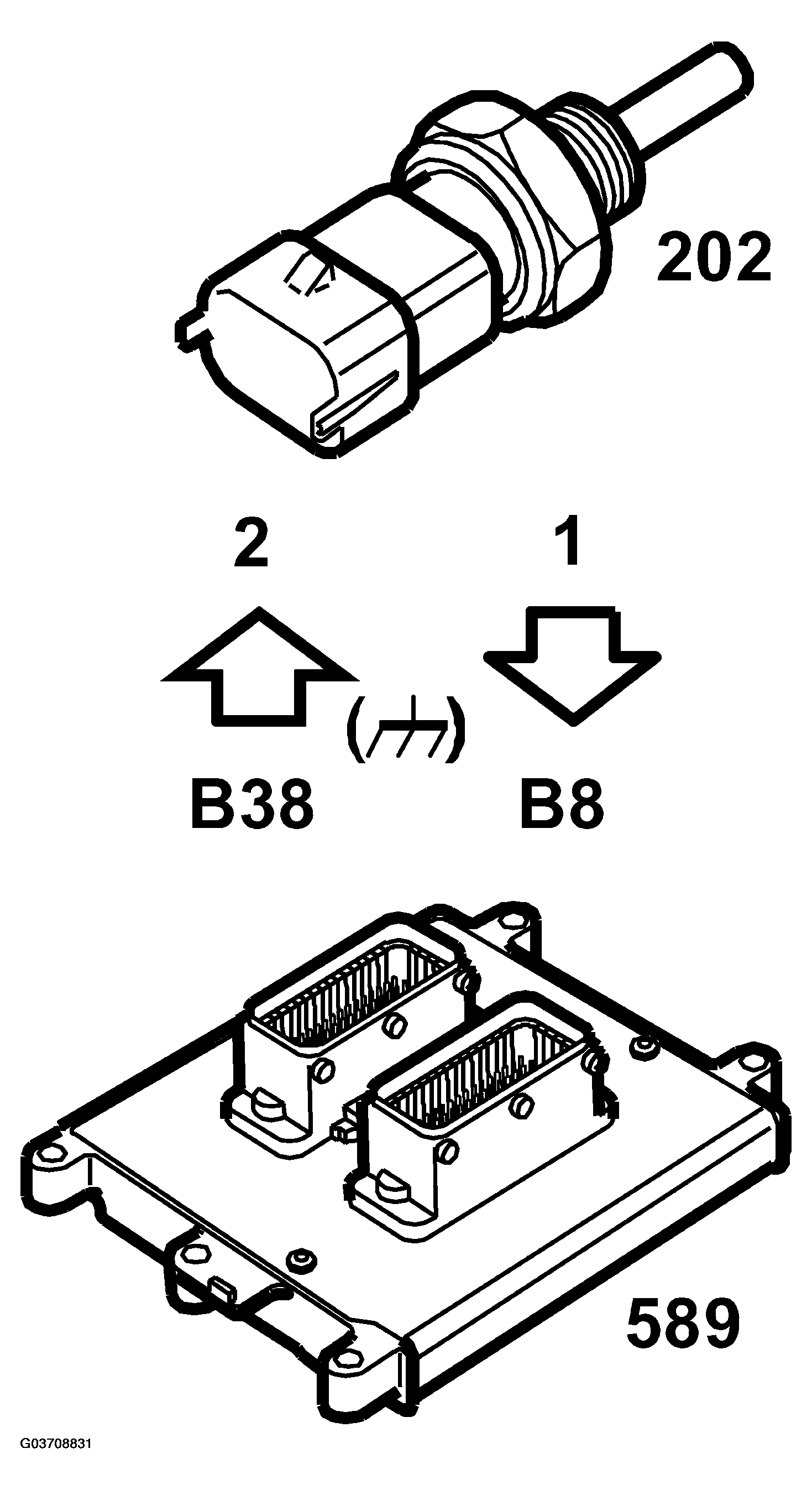

Fig 1: Identifying Coolant Temperature Sensor (202) Functional Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.

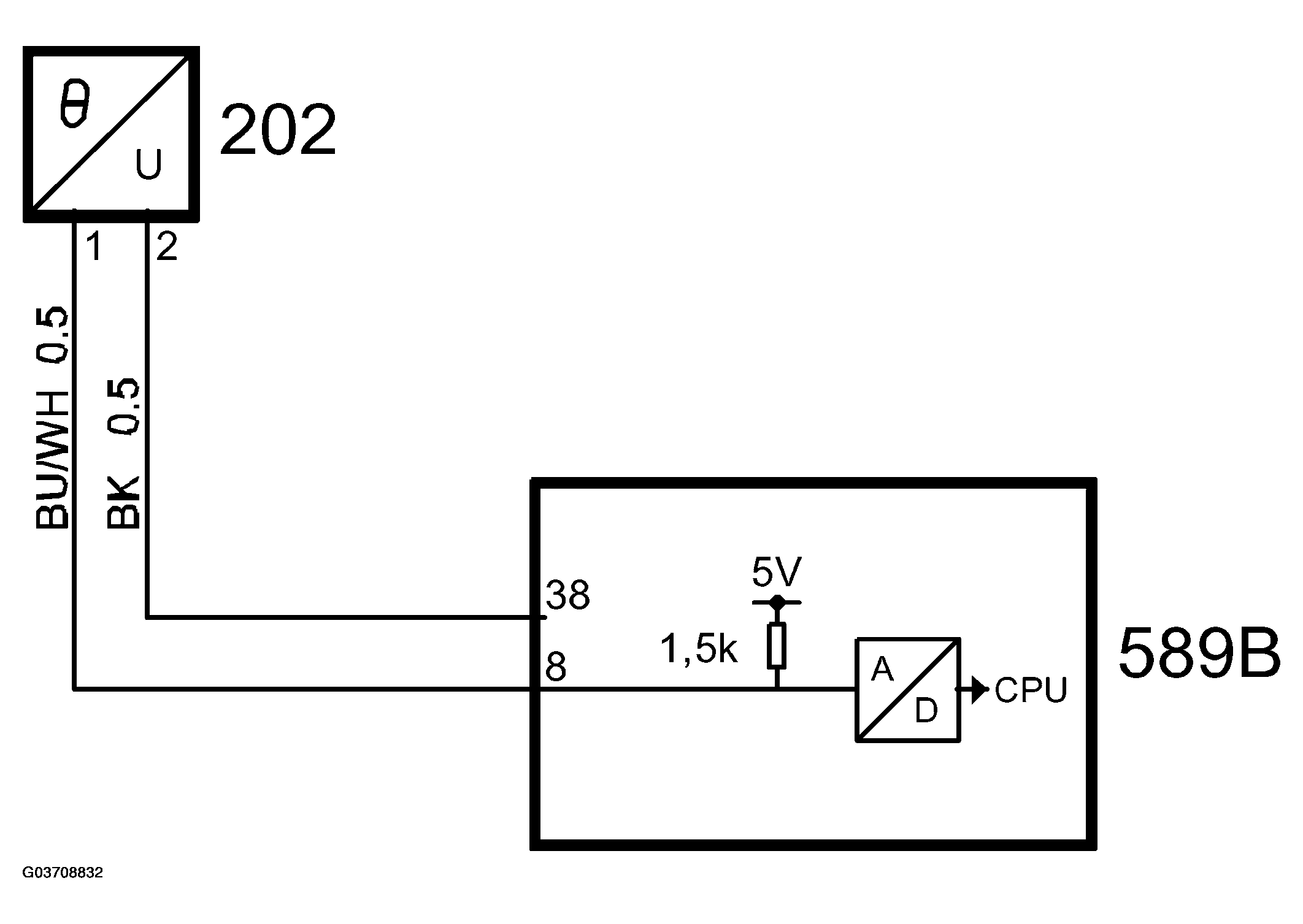

Fig 2: Identifying Coolant Temperature Sensor (202) Circuit Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
