Maximum engine torque, general

The maximum engine torque allowed for the engine is stored as a table in memory. The table specifies the highest torque the engine is allowed to generate at various speeds.

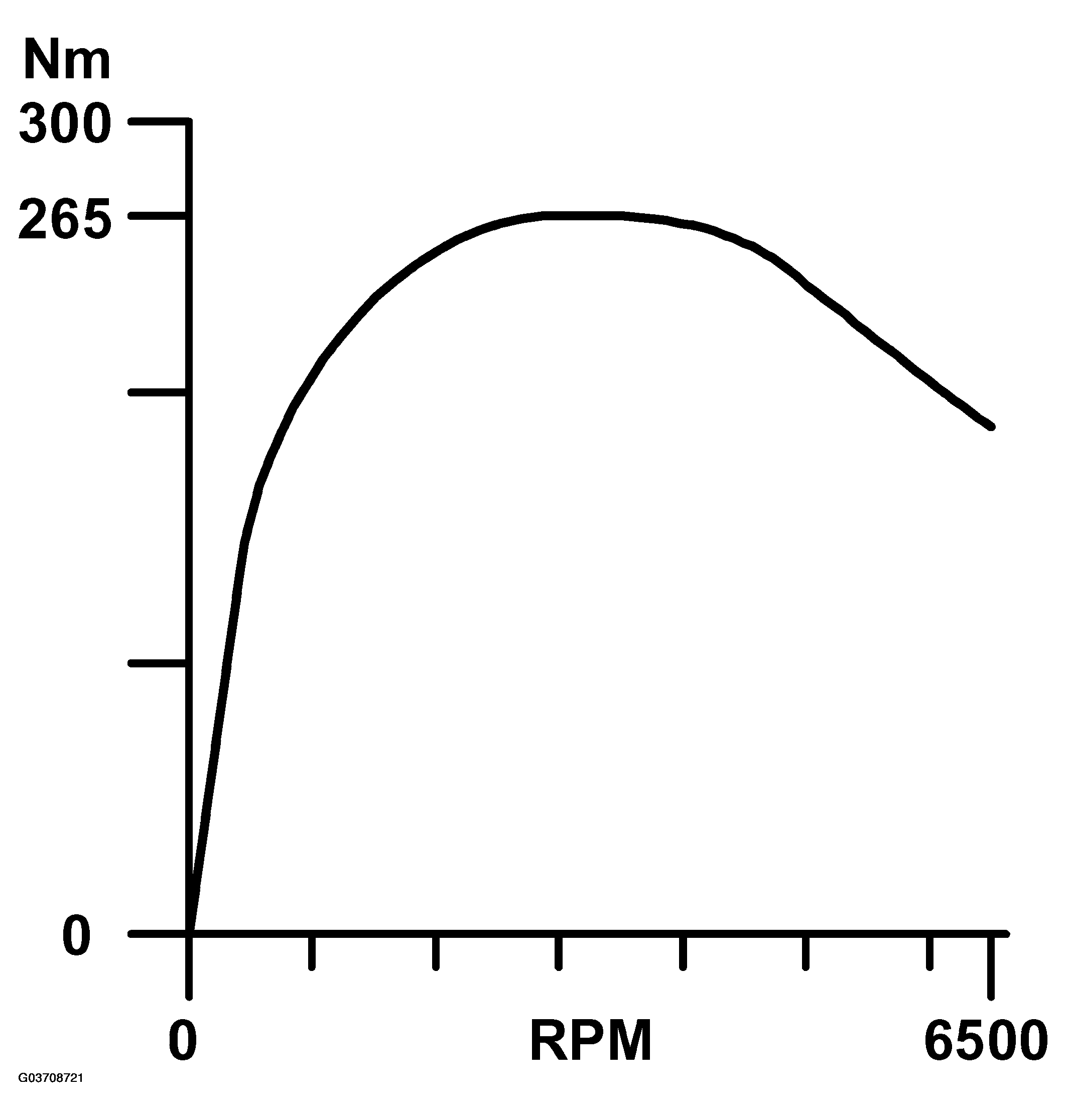

Fig 1: Identifying Maximum Engine Torque Graph

Courtesy of SAAB-SCANIA OF AMERICA, INC.
