Atmospheric pressure sensor (539)

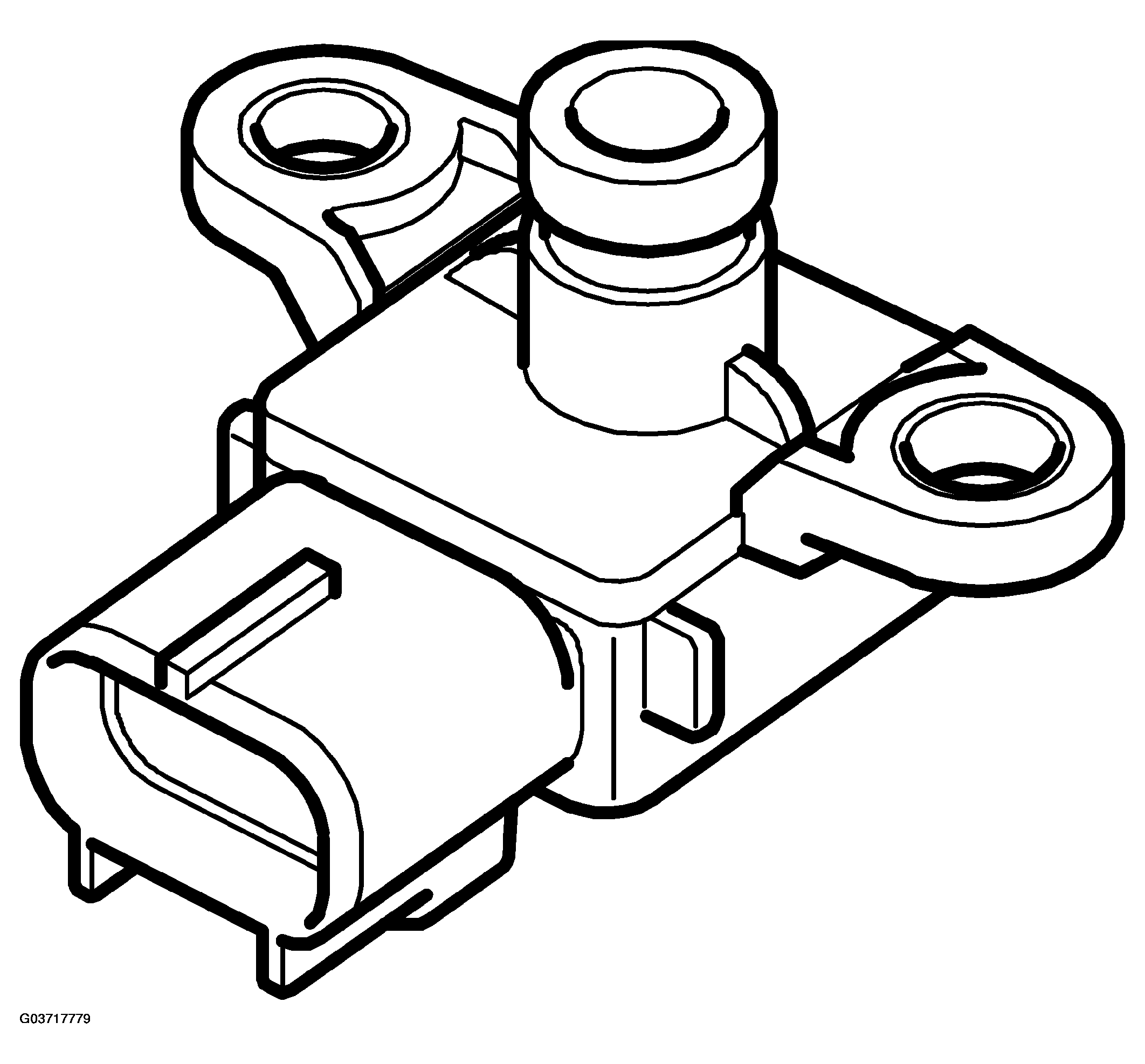

Fig 1: Identifying Atmospheric Pressure Sensor (539)
G03717779Courtesy of SAAB-SCANIA OF AMERICA, INC.

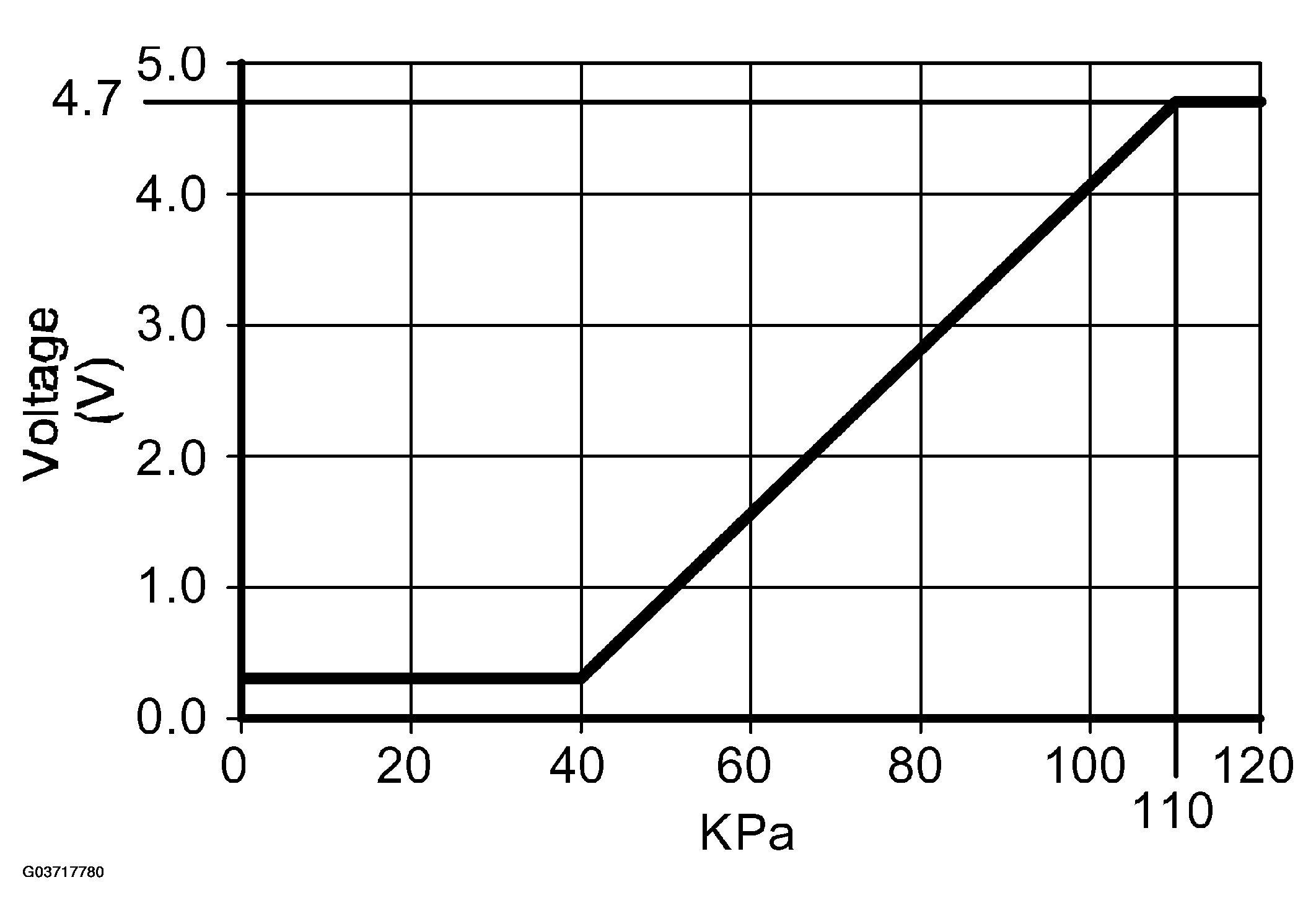

Fig 2: Identifying Graph (Atmospheric Pressure Sensor)
G03717780Courtesy of SAAB-SCANIA OF AMERICA, INC.
