To remove

  1. Fold the door mirror forward.
  2. Angle out the glass.
  3. Unhook the spring clip using a screwdriver.

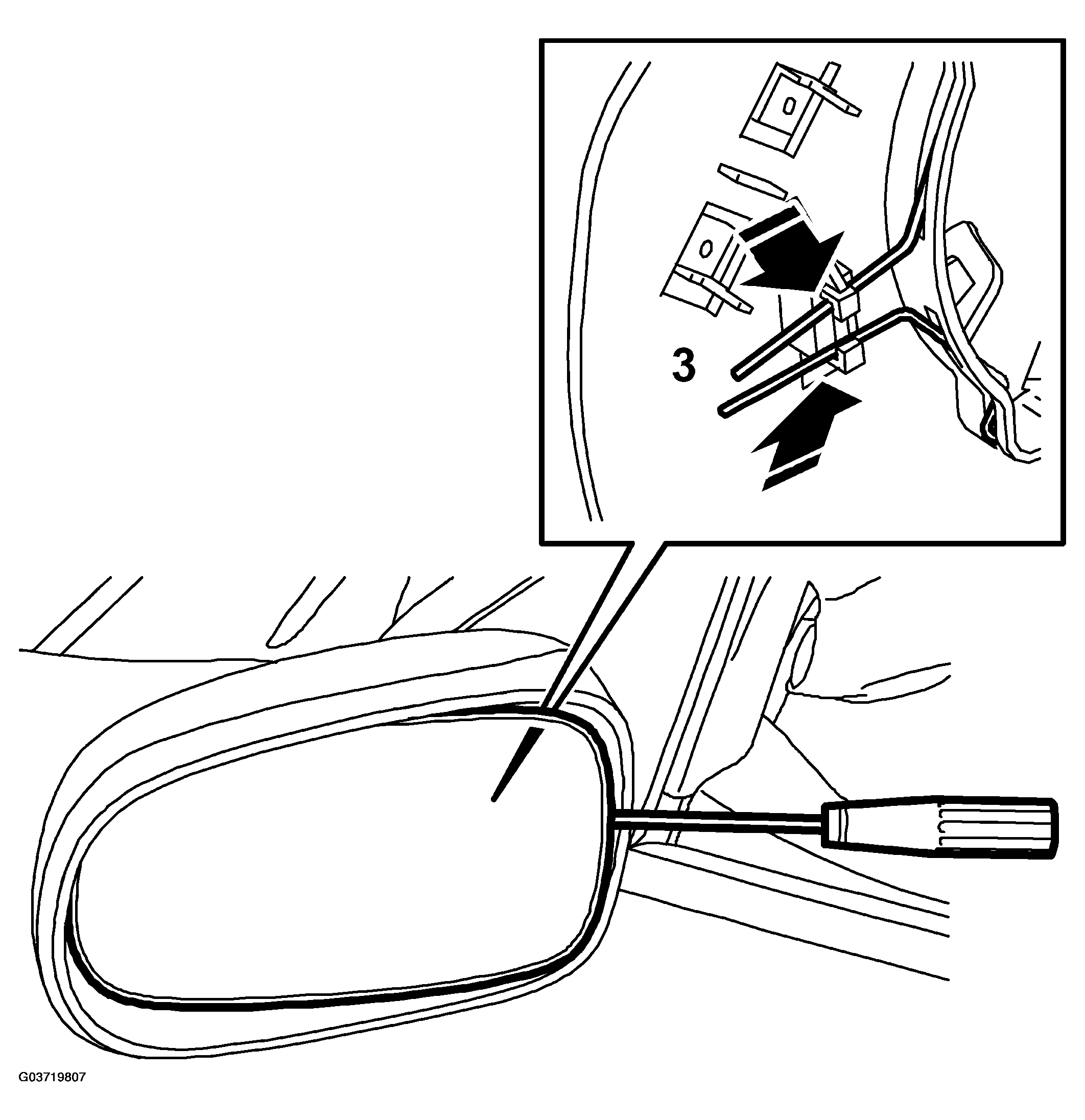

    Fig 1: Illustration For Step 3
    G03719807Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Unplug the connector and lift aside the glass.

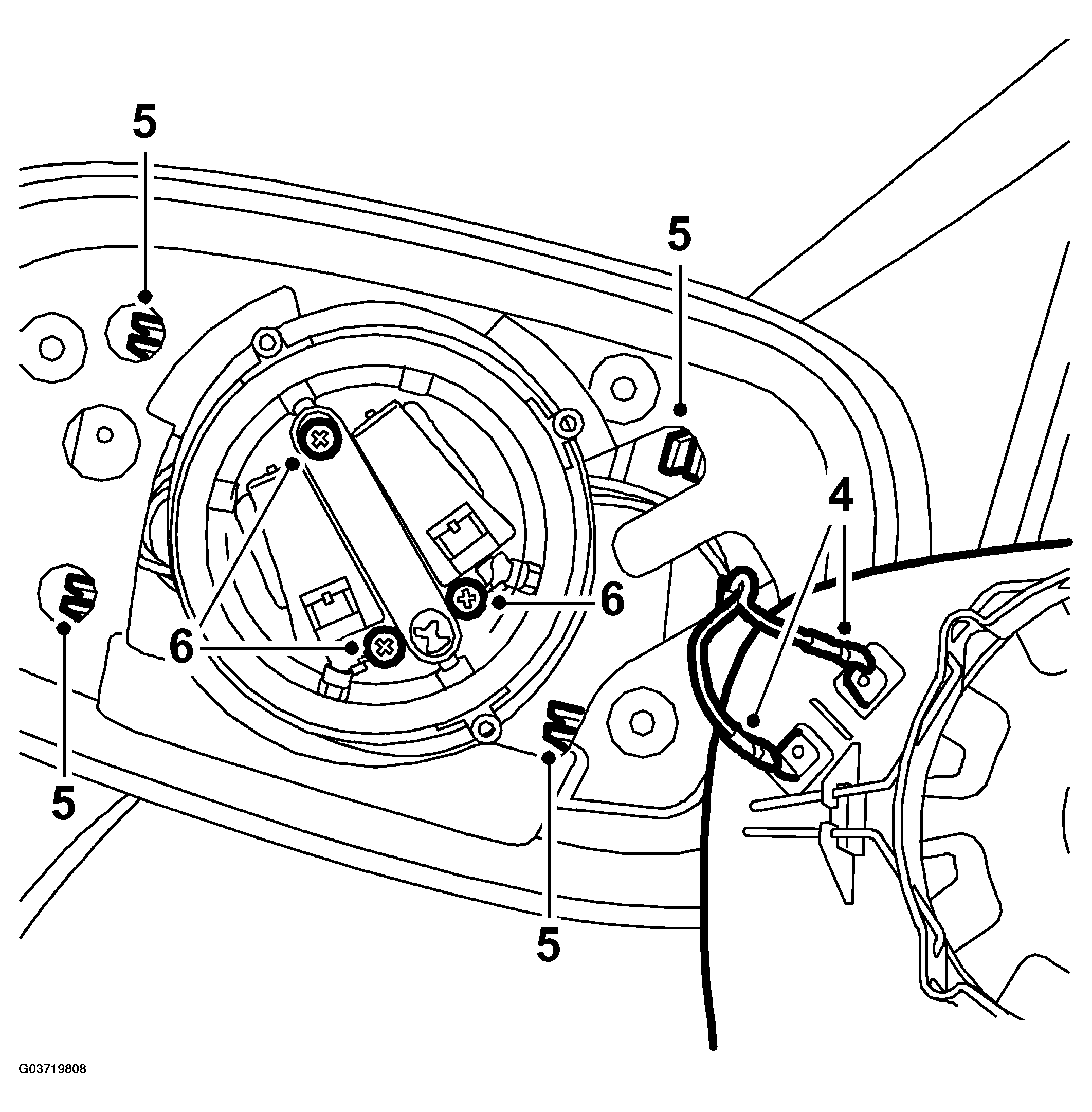

    Fig 2: Illustration For Steps 4-6
    G03719808Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Press in the clips on the cover to release it. Start with the outer clips.

    Fold in the mirror and pull off the cover.

  6. Remove the screws securing the motor.
  7. Lift out the motor and unplug the connector.

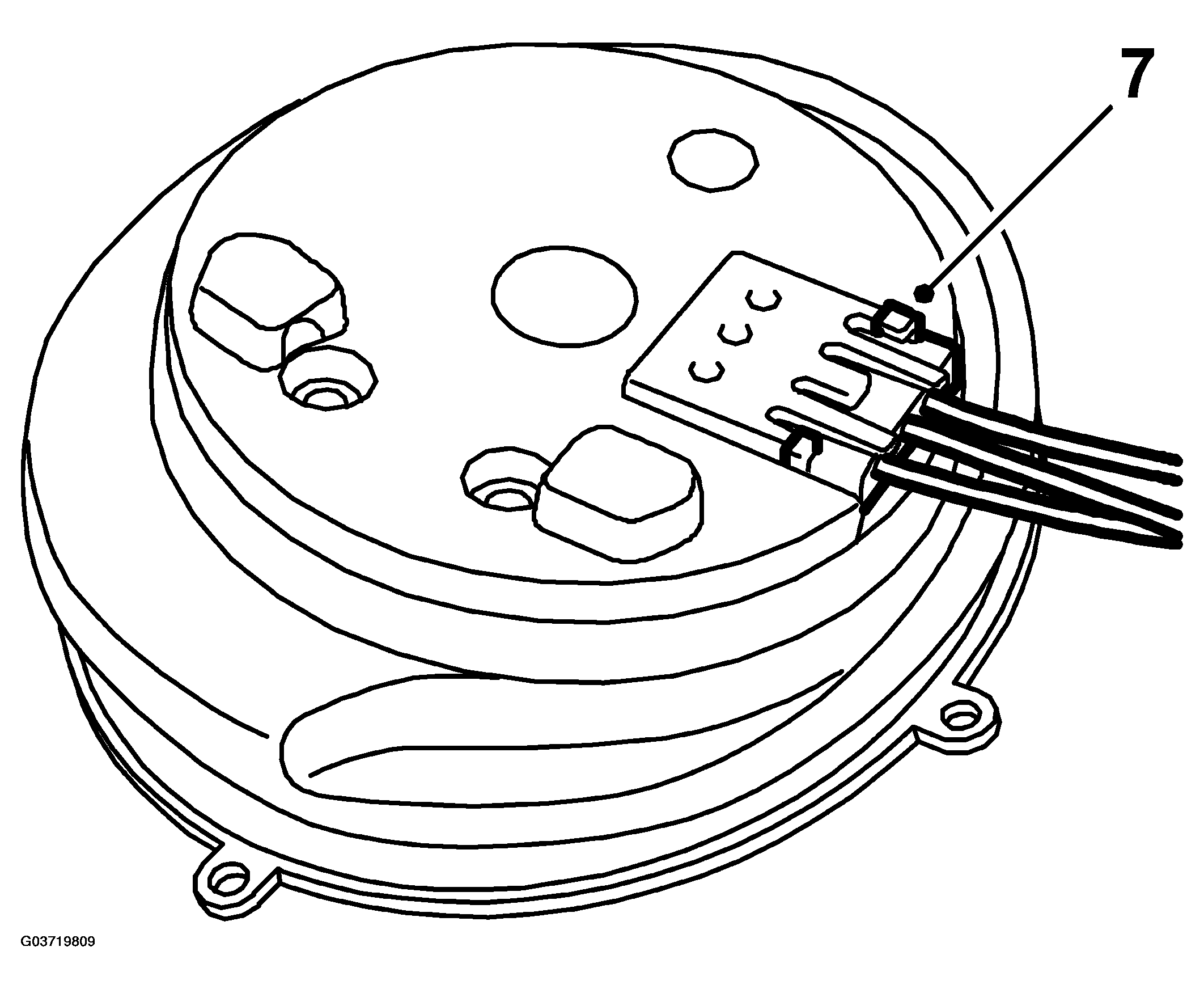

    Fig 3: Illustration For Step 7
    G03719809Courtesy of SAAB-SCANIA OF AMERICA, INC.
  8. Remove the screws securing the frame.

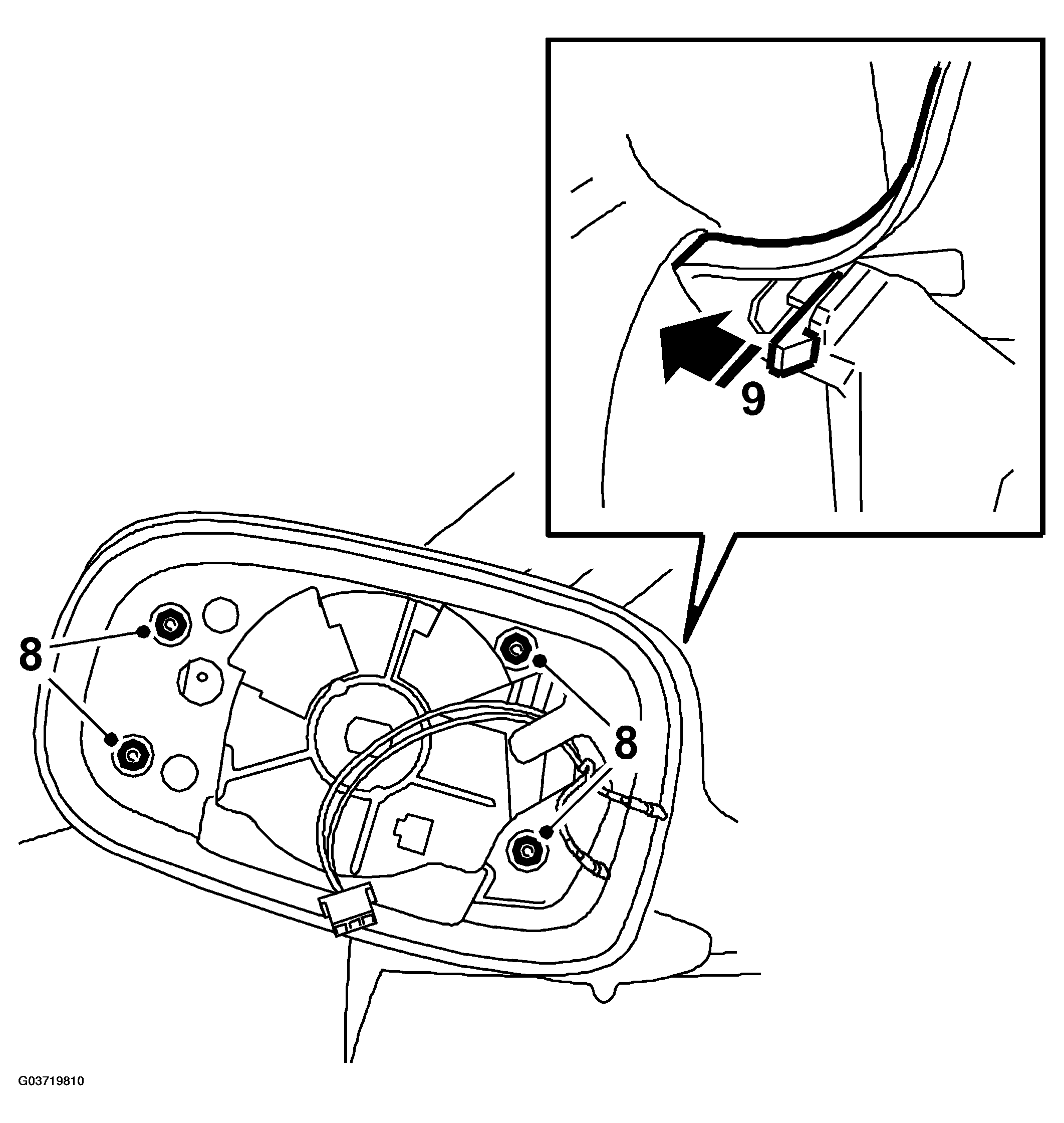

    Fig 4: Illustration For Steps 8-9
    G03719810Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Bend aside the plastic catch to release the frame.
