ABS modulation

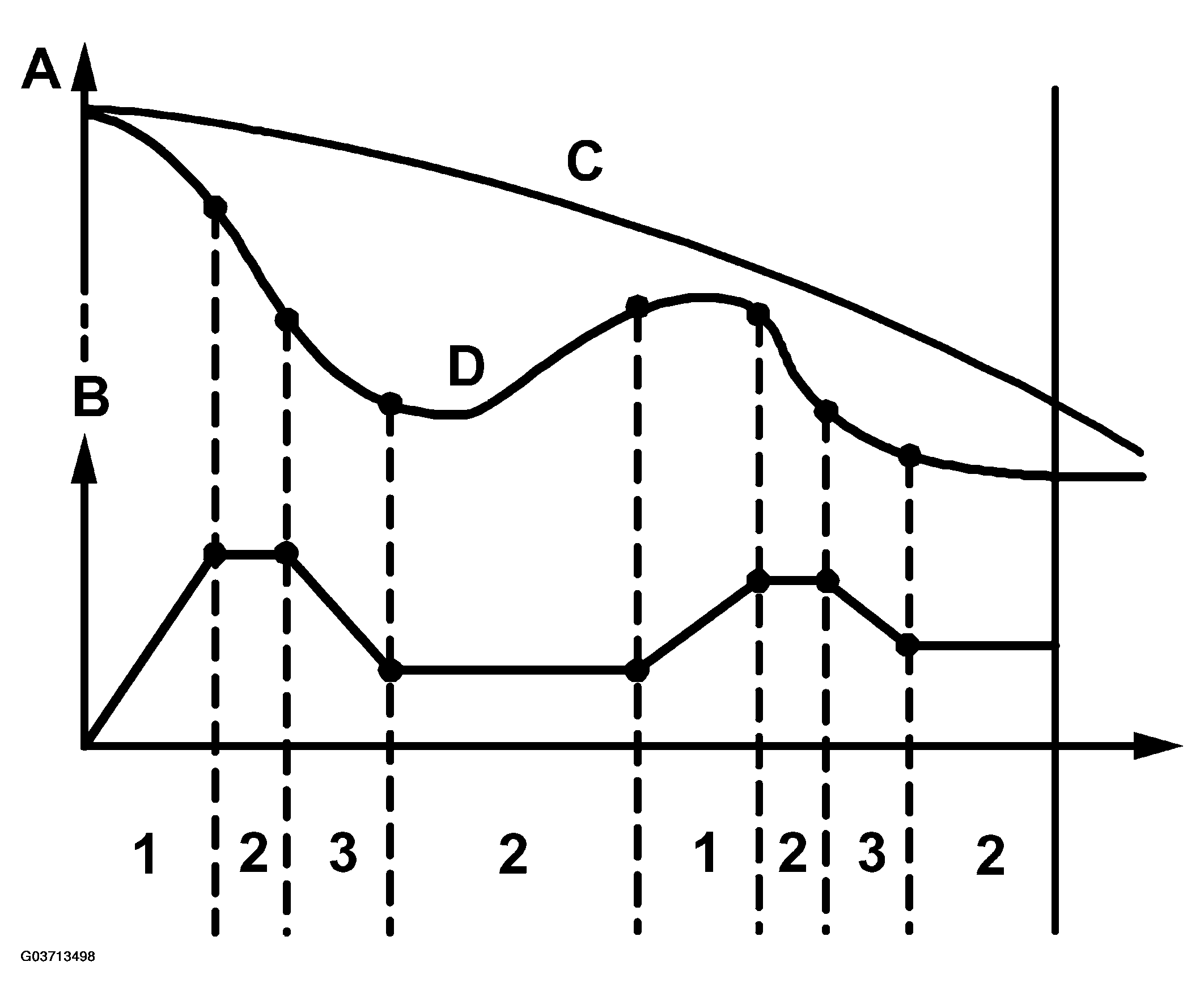

The diagram shows ABS modulation

Fig 1: ABS Modulation Graph

Courtesy of SAAB-SCANIA OF AMERICA, INC.

1. A Speed
2. B Braking force
3. C Road speed
4. D Wheel rotation speed

1. 1 Modulation phase 1; inlet valve open, outlet valve closed
2. 2 Modulation phase 2; Inlet valve closed, outlet valve open
3. 3 Modulation phase 3; Outlet valve closed, pump activated

When the control unit detects excessive retardation (speed decrease) for one of the wheels, it modulates the brake pressure to the wheel in three phases:

• PHASE 1 Pressure increase
• PHASE 2 Pressure holding
• PHASE 3 Pressure decrease
